Hummer
>>
2005
>>
H2 V8-6.0L
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Body Views
Body Views

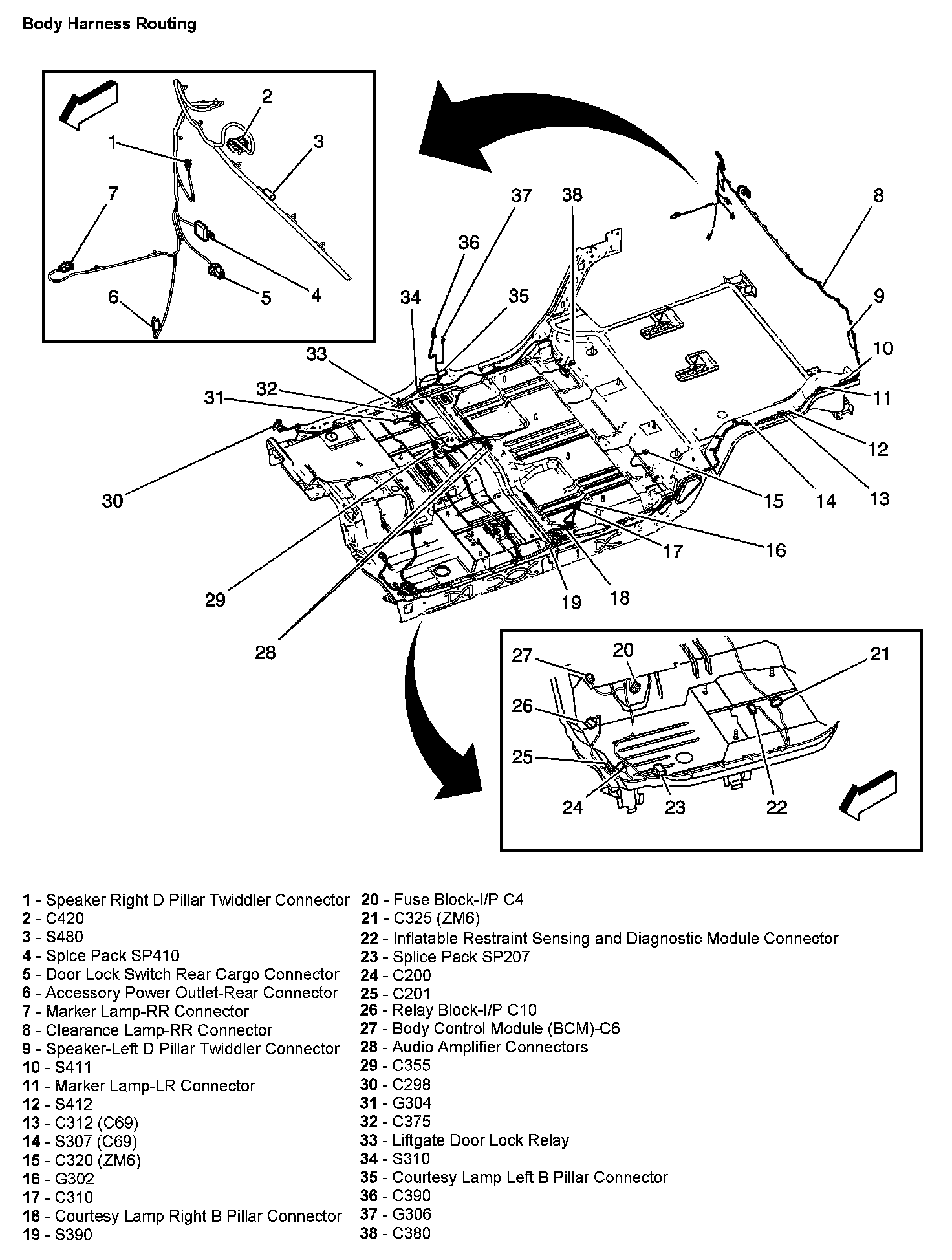

Body Harness Routing:

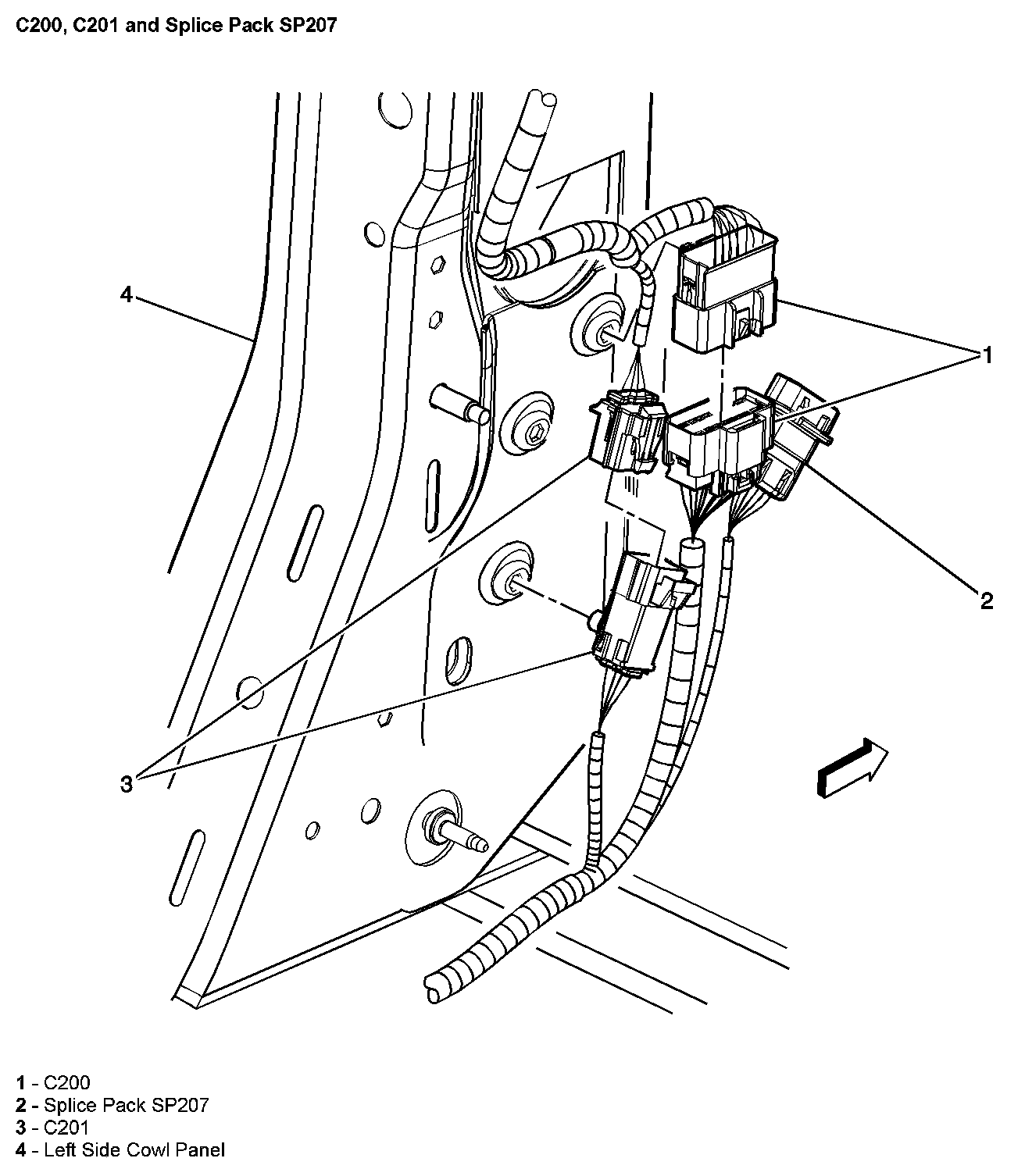

C200, C201 And Splice Pack SP207:

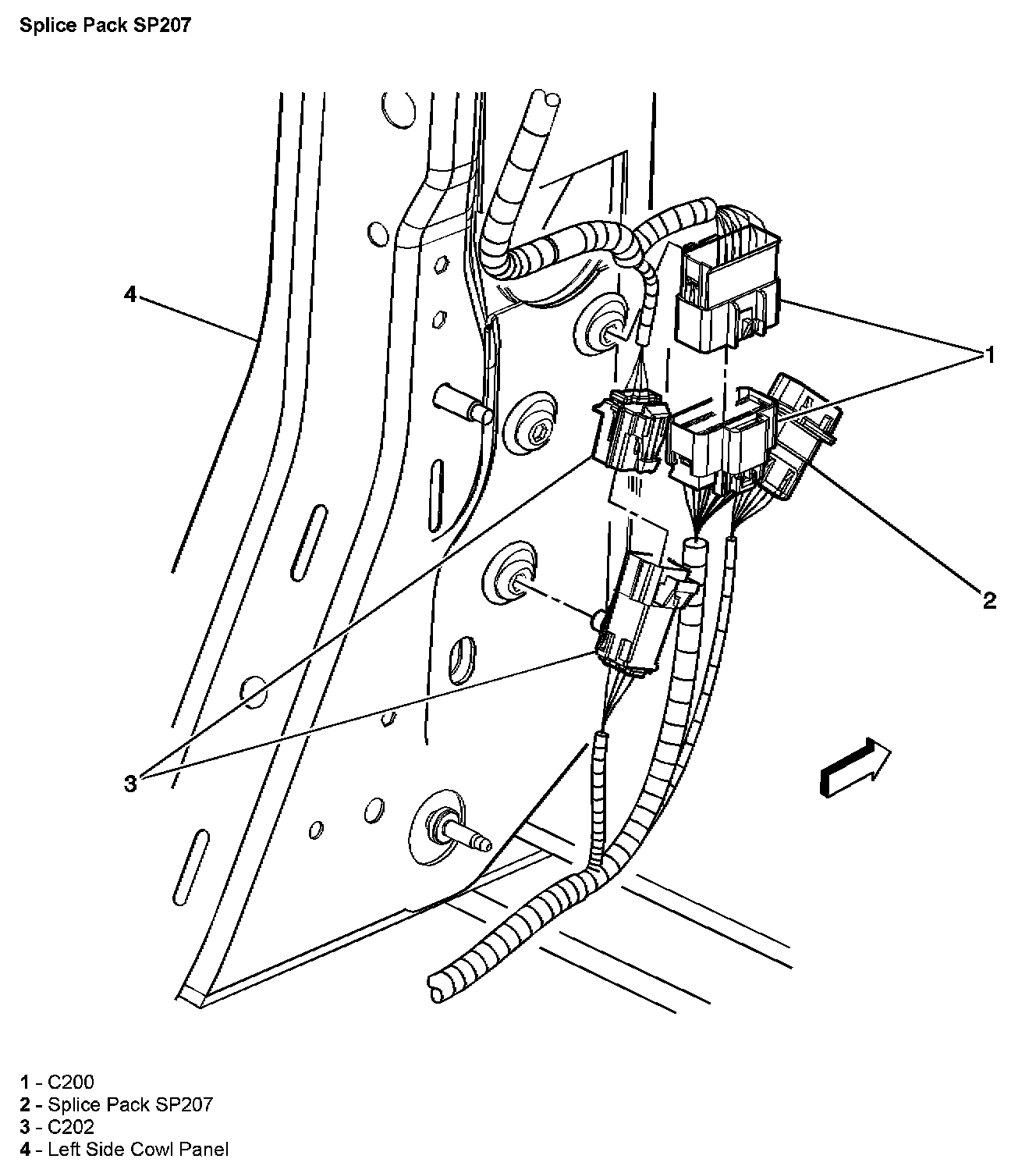

Splice Pack SP207:
