Home >> Hummer >> 2005 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Control Module

Power Seat Control Module

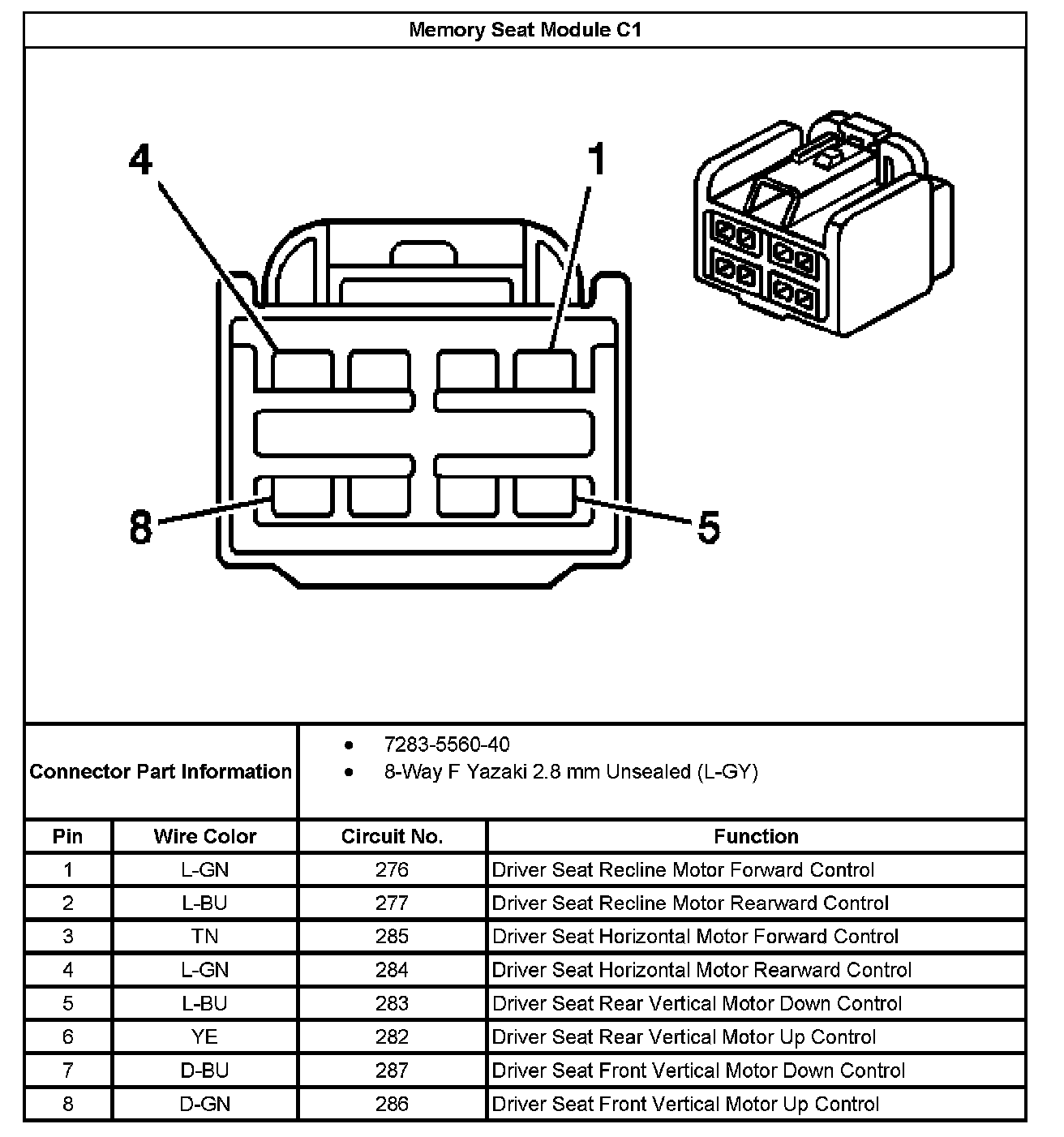

Memory Seat Module C1:

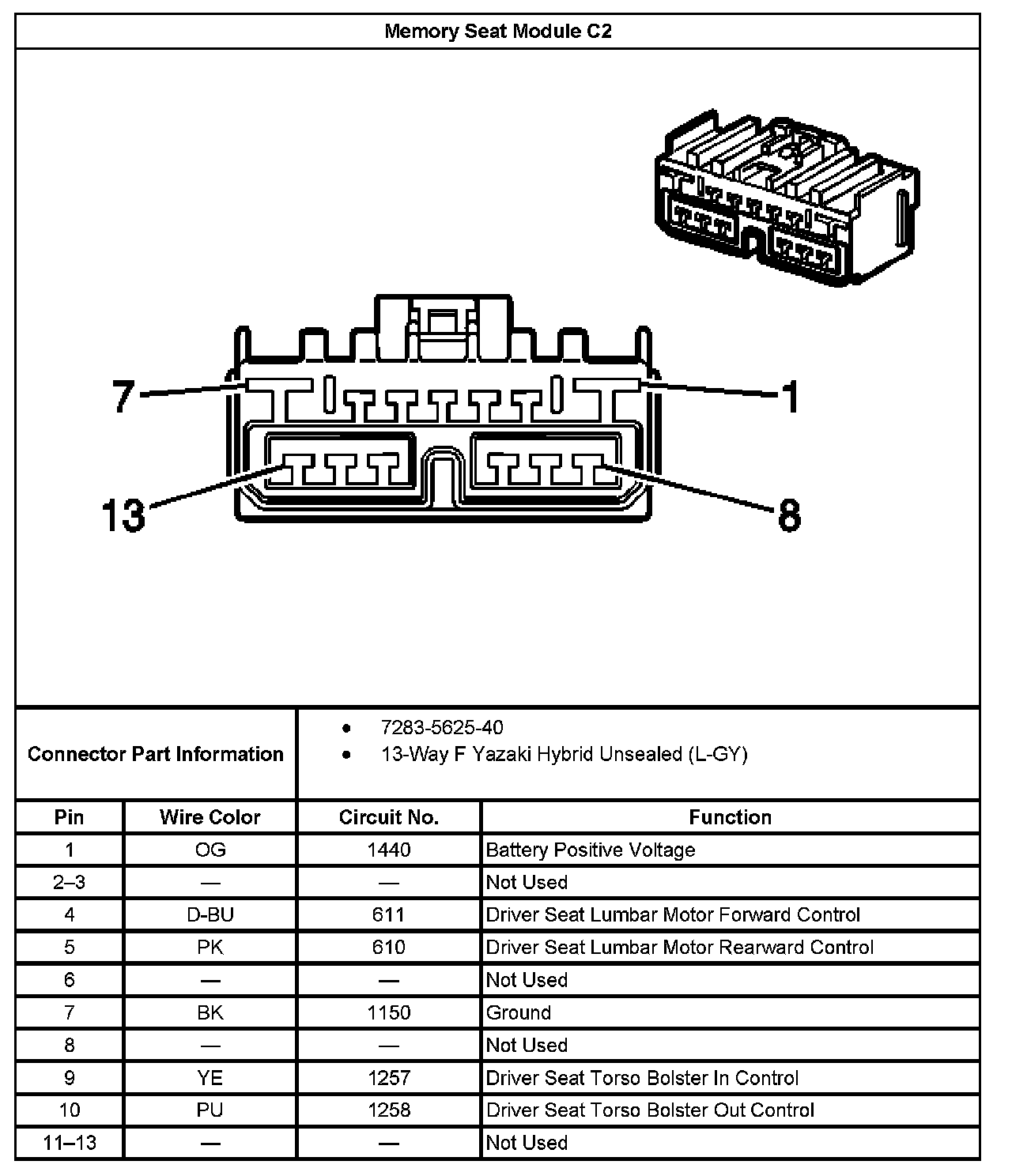

Memory Seat Module C2:

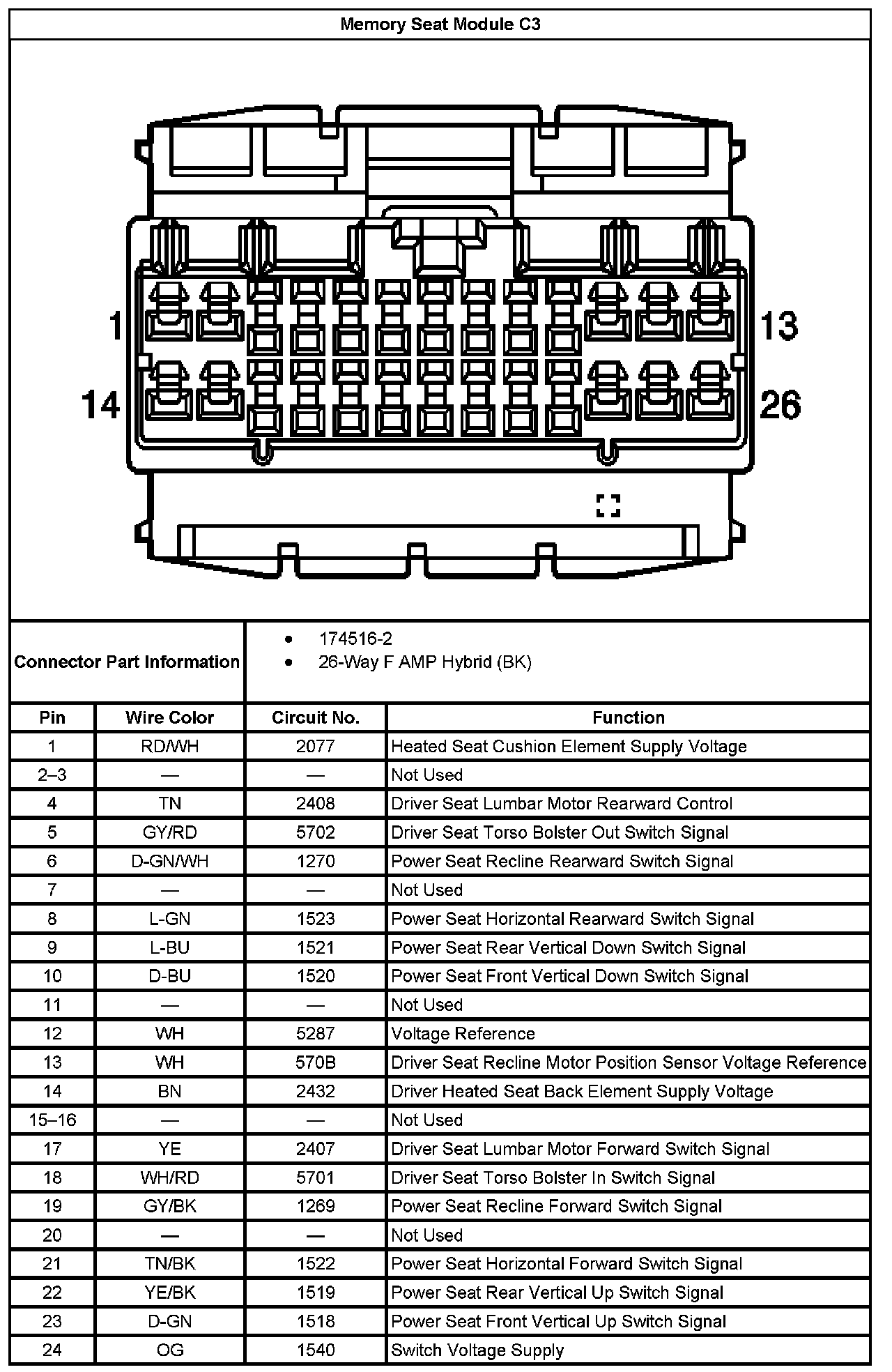

Memory Seat Module C3 Part 1:

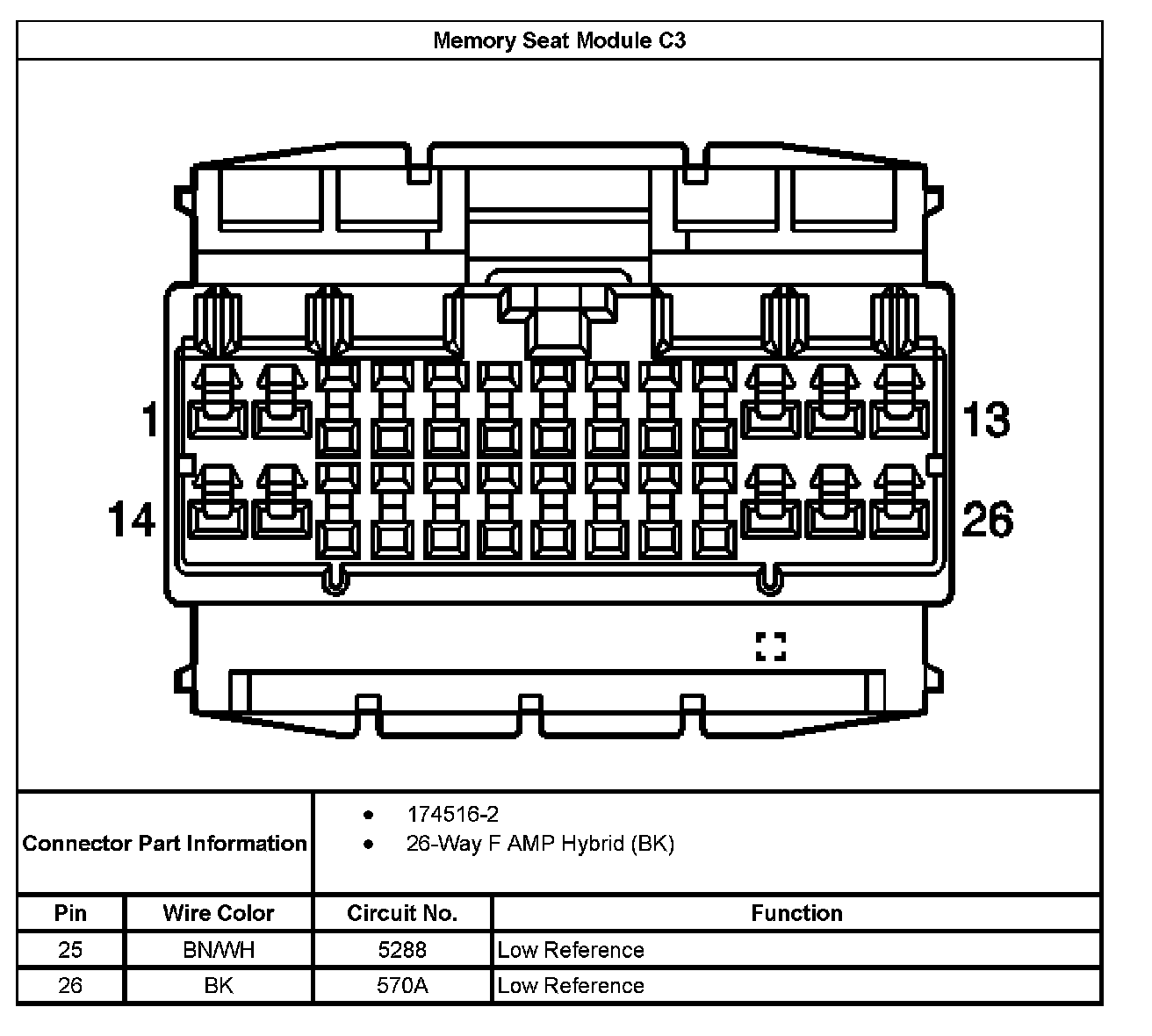

Memory Seat Module C3 Part 2:

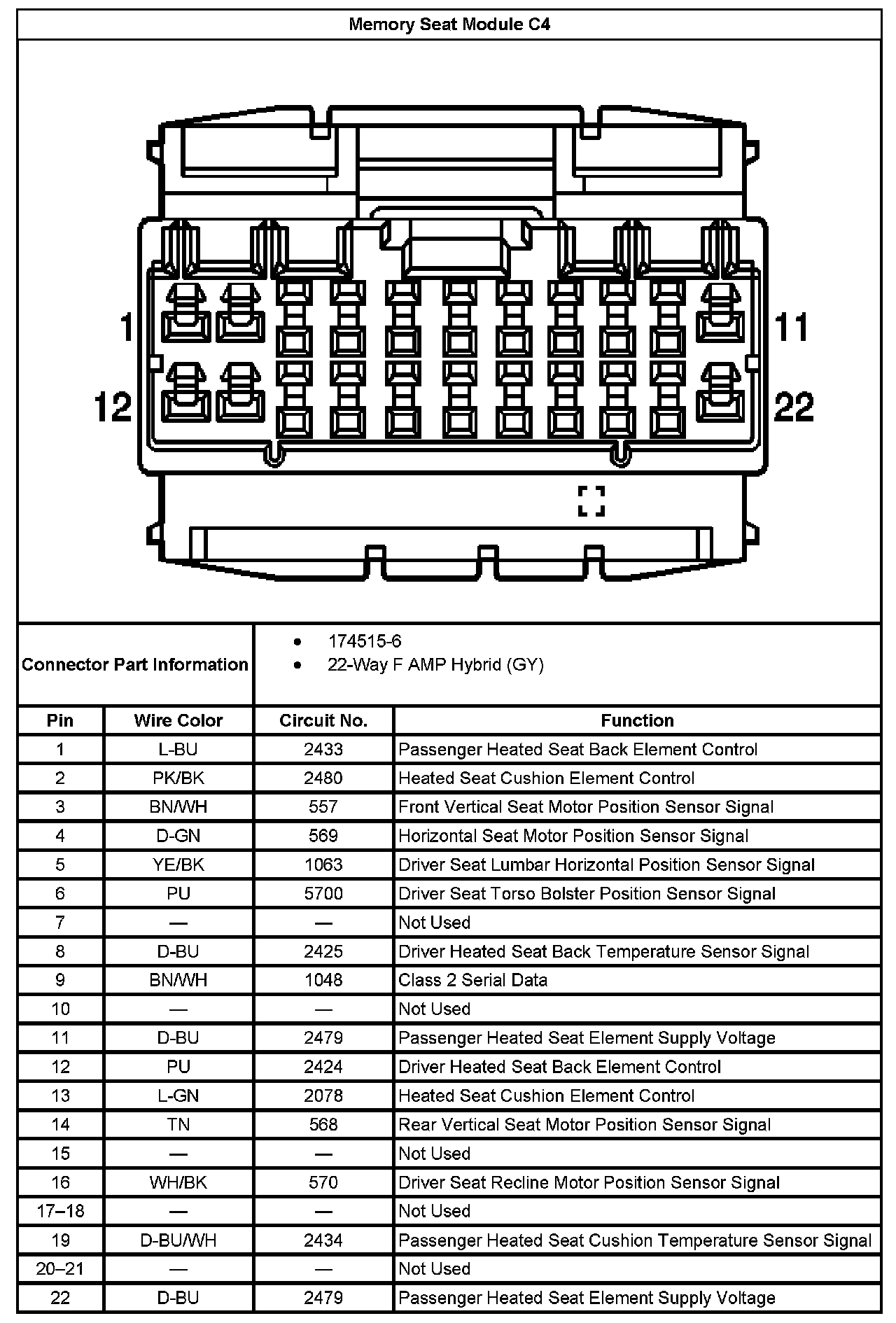

Memory Seat Module C4:
