Impact Sensor
Impact Sensor

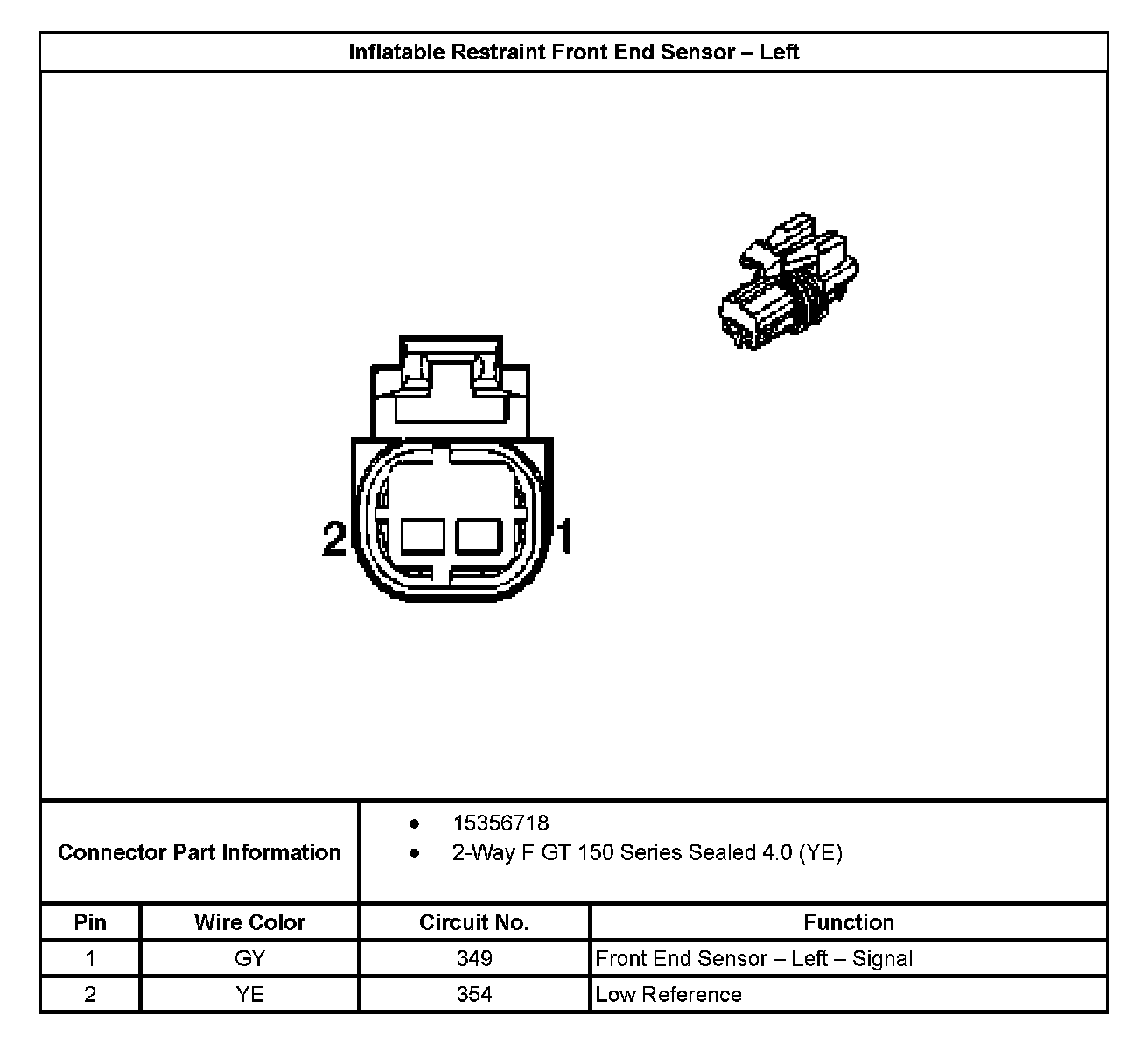

Inflatable Restraint Front End Sensor - Left:

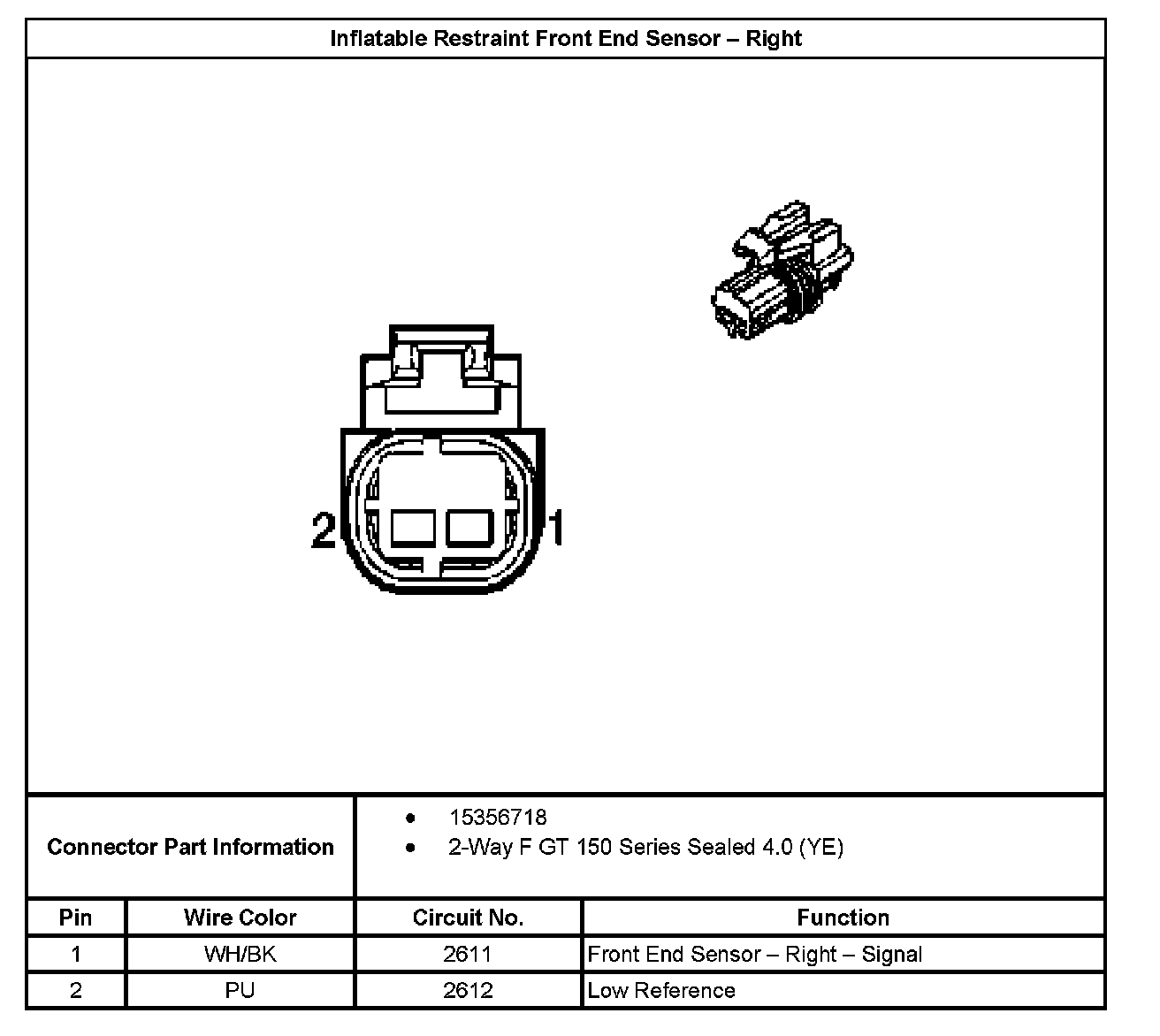

Inflatable Restraint Front End Sensor - Right:
