Hummer
>>
2005
>>
H2 V8-6.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body Control Module
>>

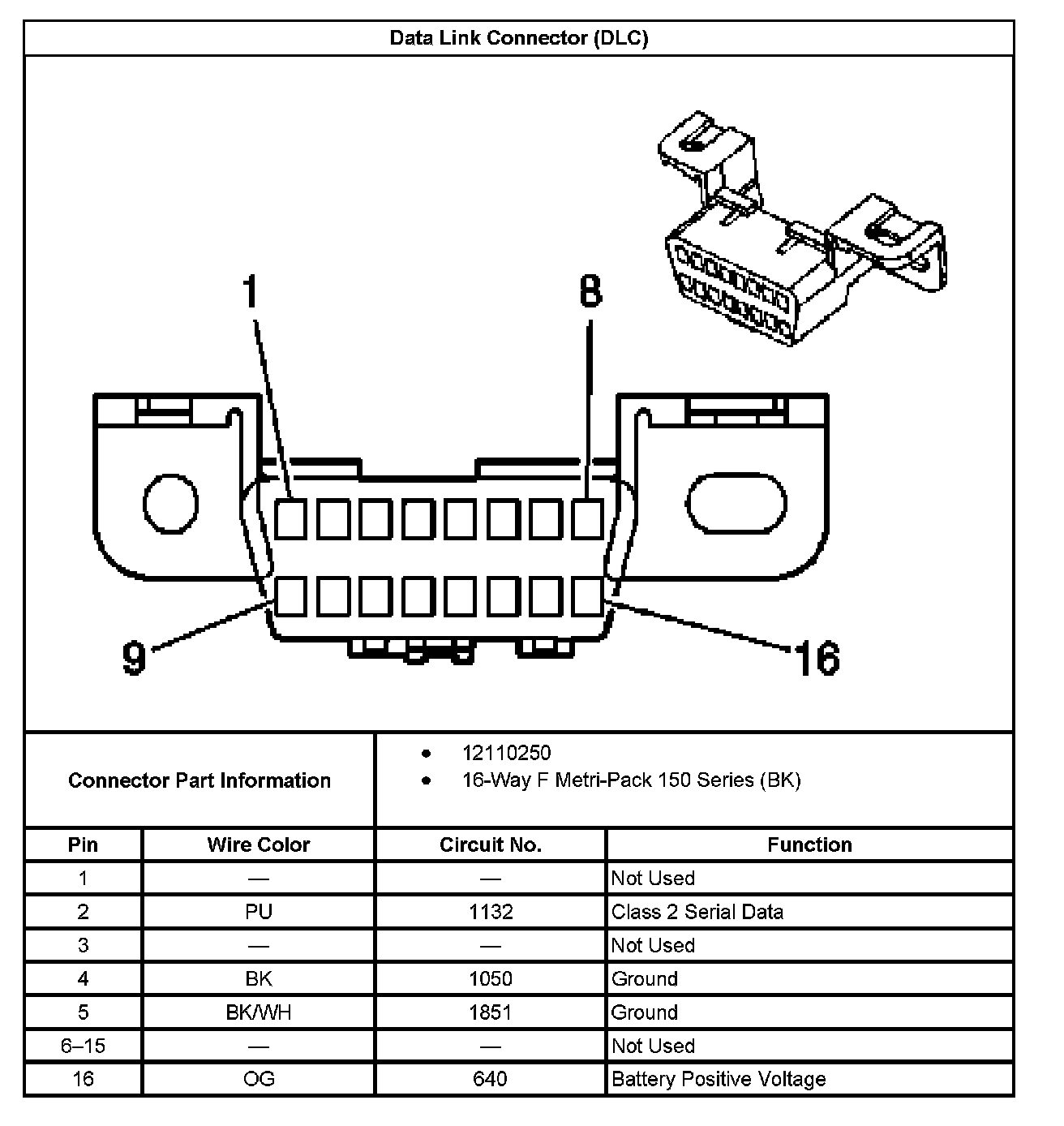

Data Link Connector (DLC)
Data Link Connector (DLC)
Data Link Connector (DLC):
