Home >> Hummer >> 2005 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> Body Control Module (BCM) - C3

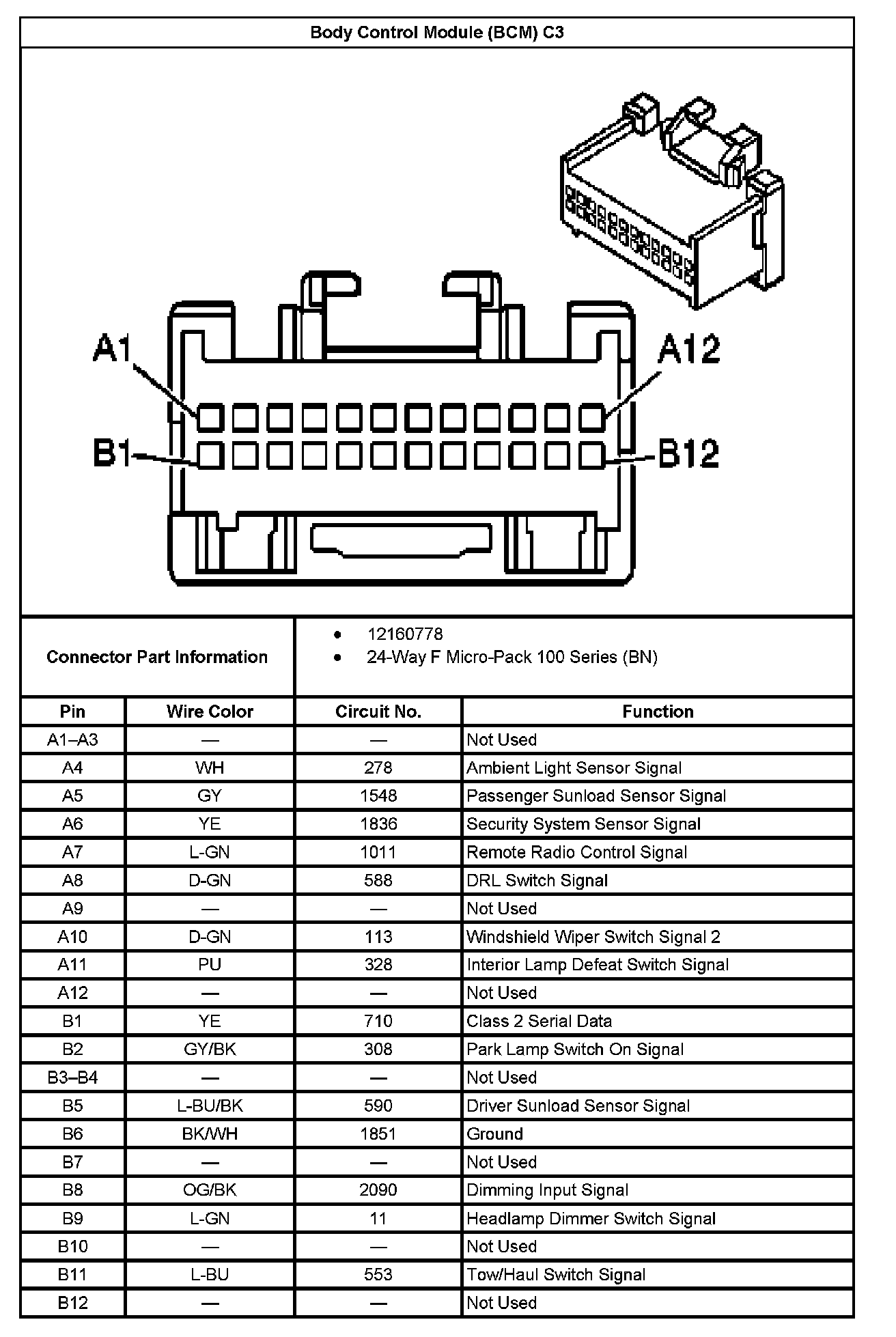

Body Control Module (BCM) - C3

Body Control Module (BCM) - C3:
