Home >> Hummer >> 2005 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> Body Control Module (BCM) - C2

Body Control Module (BCM) - C2

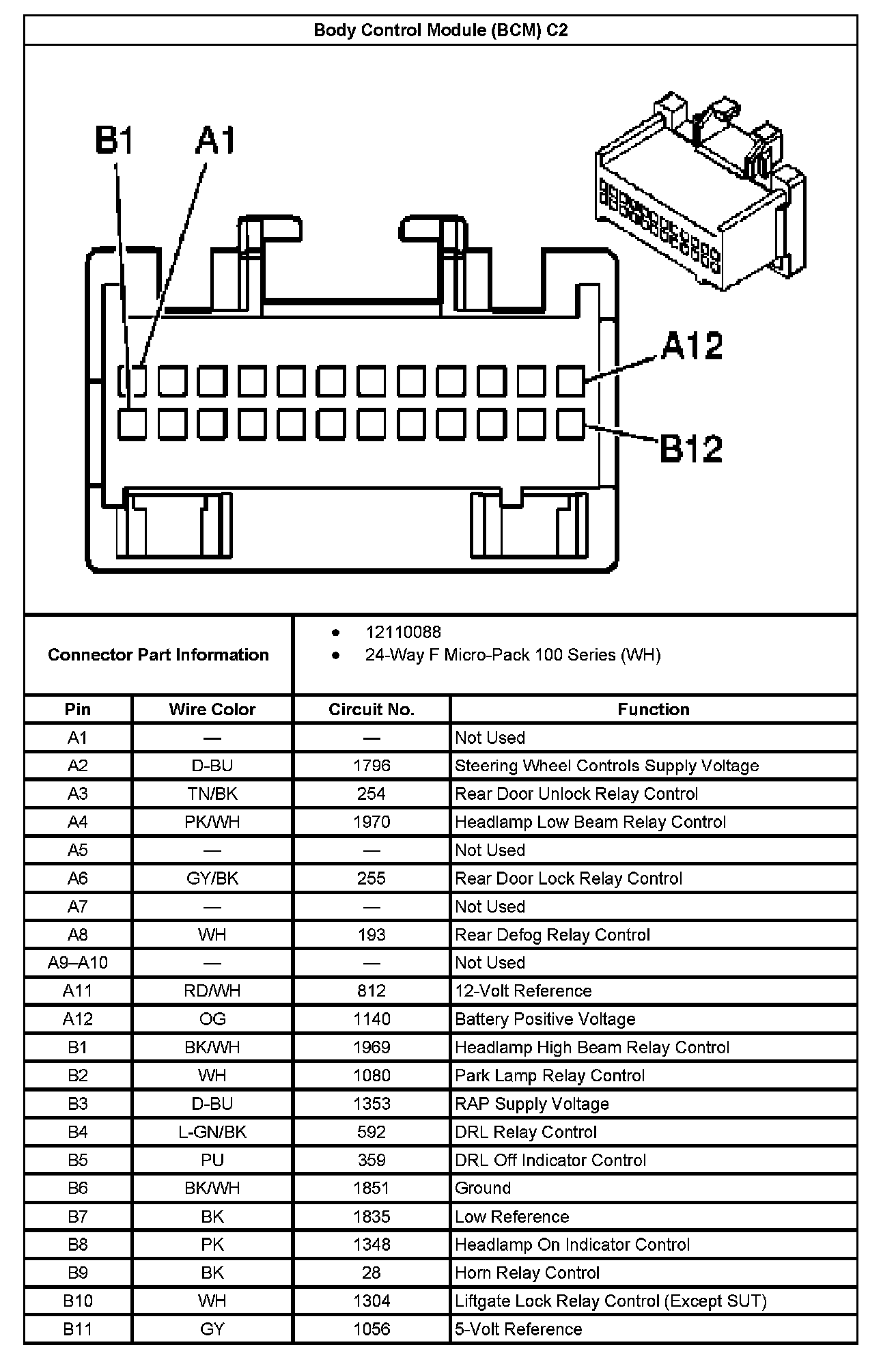

Body Control Module (BCM) - C2 Part 1:

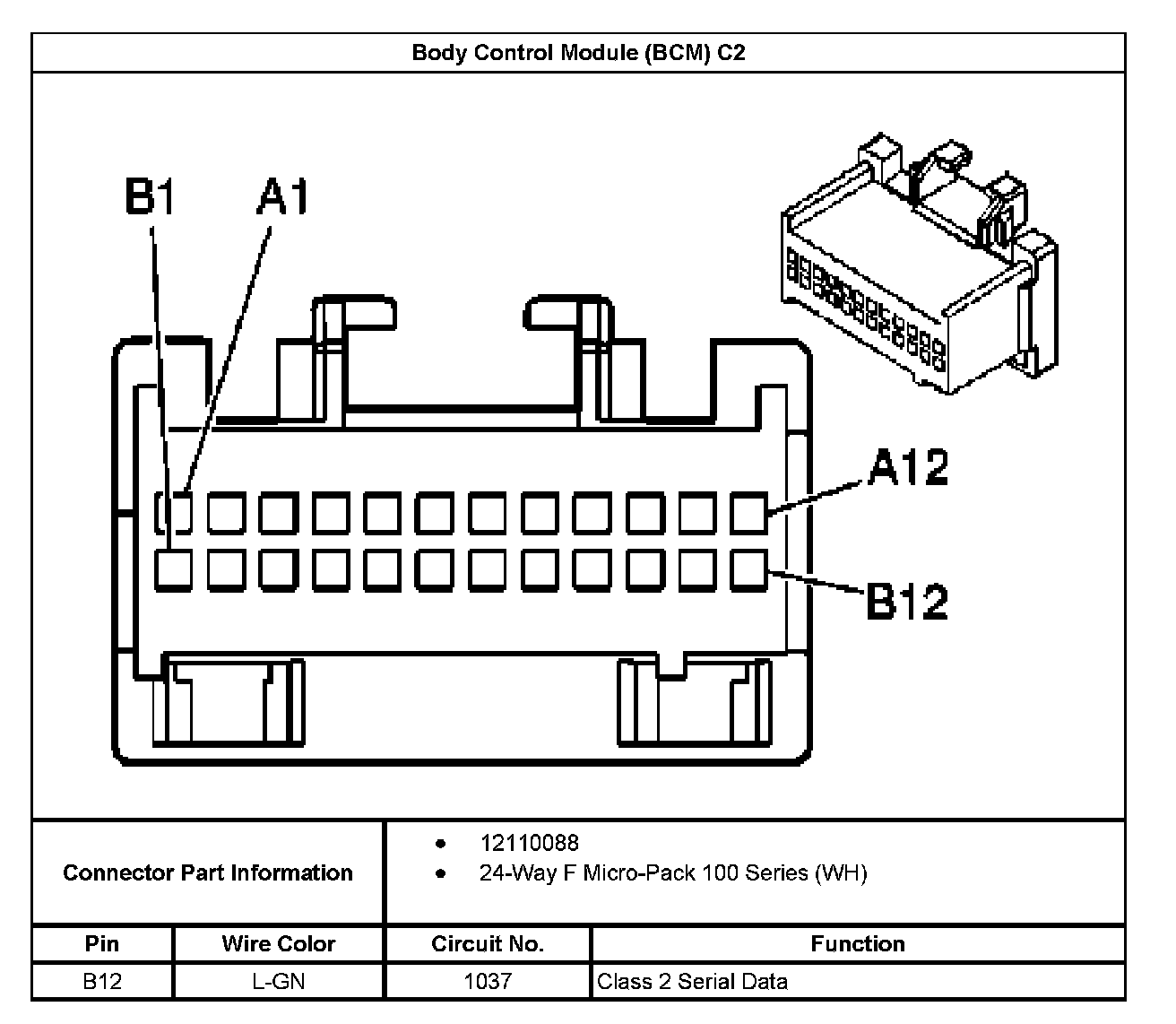

Body Control Module (BCM) - C2 Part 2:
