Home >> Hummer >> 2003 >> H2 V8-6.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Vehicle Speed Sensor >> Diagrams

Vehicle Speed Sensor: Diagrams

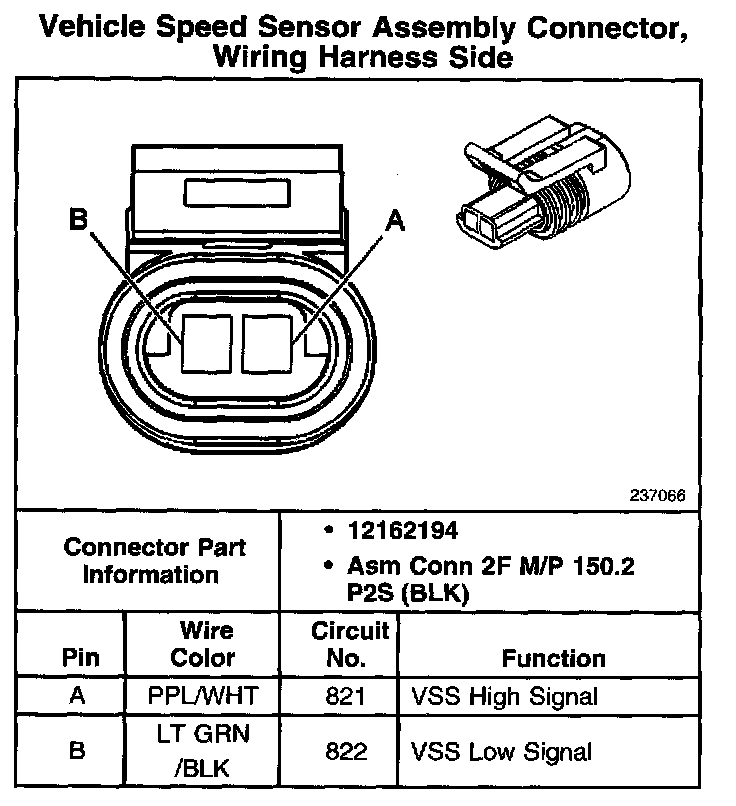

Vehicle Speed Sensor Assembly Connector, Wiring Harness Side:
