Home >> Hummer >> 2003 >> H2 V8-6.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oxygen Sensor >> Locations

Oxygen Sensor: Locations

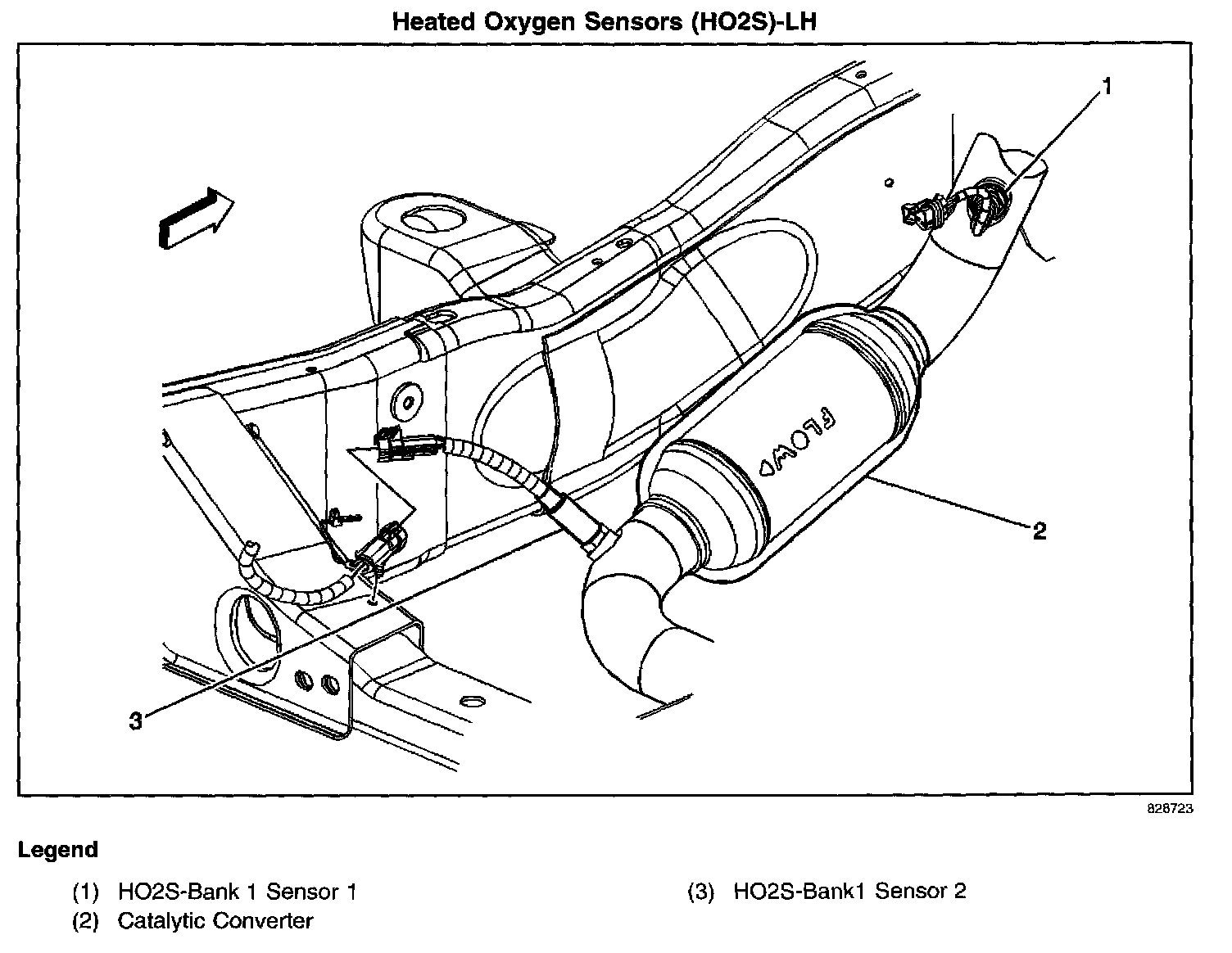

Heated Oxygen Sensors (HO2S) - LH:

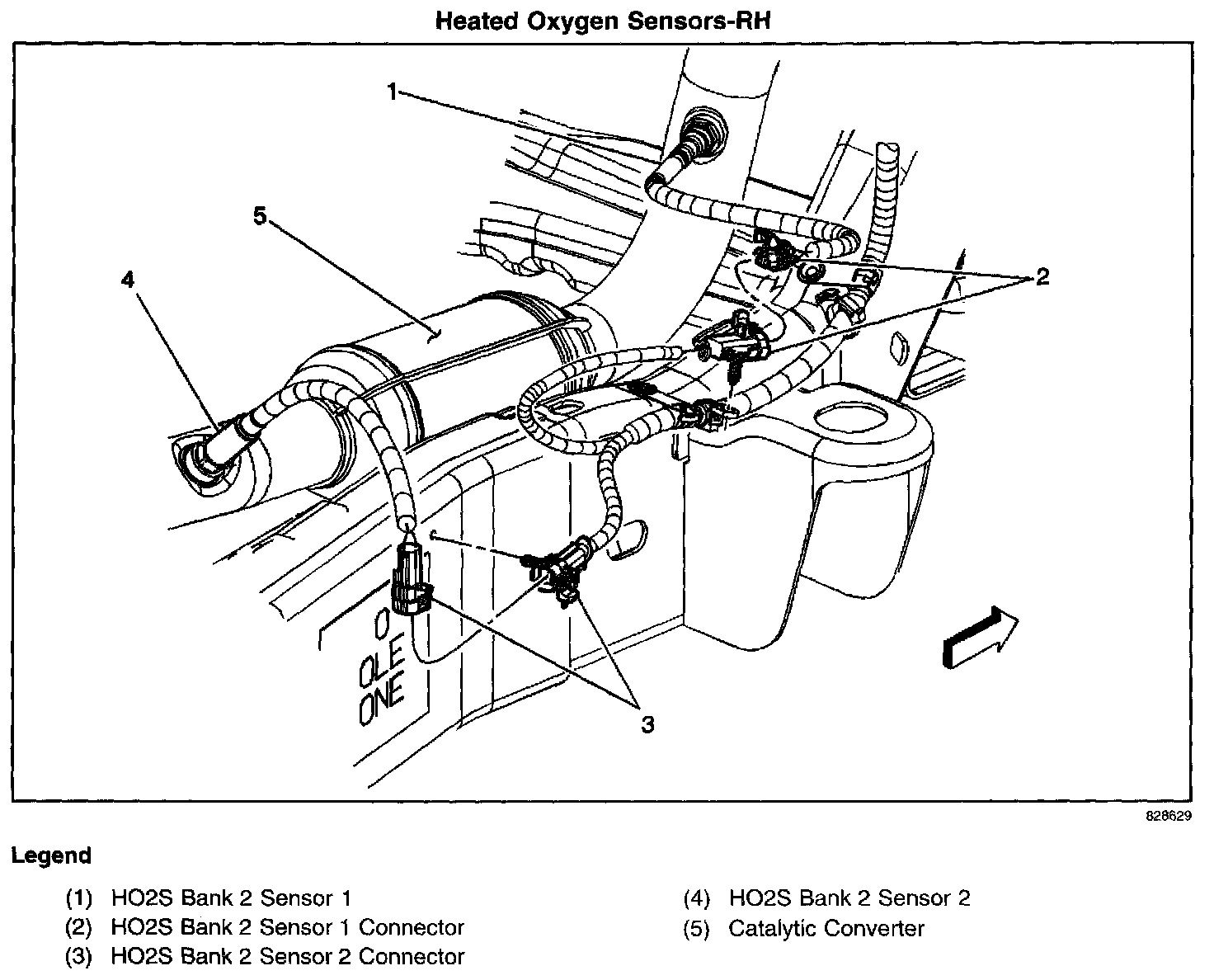

Heated Oxygen Sensors - RH:
