Hummer
>>
2003
>>
H2 V8-6.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Oxygen Sensor
>>
Diagrams
Oxygen Sensor: Diagrams

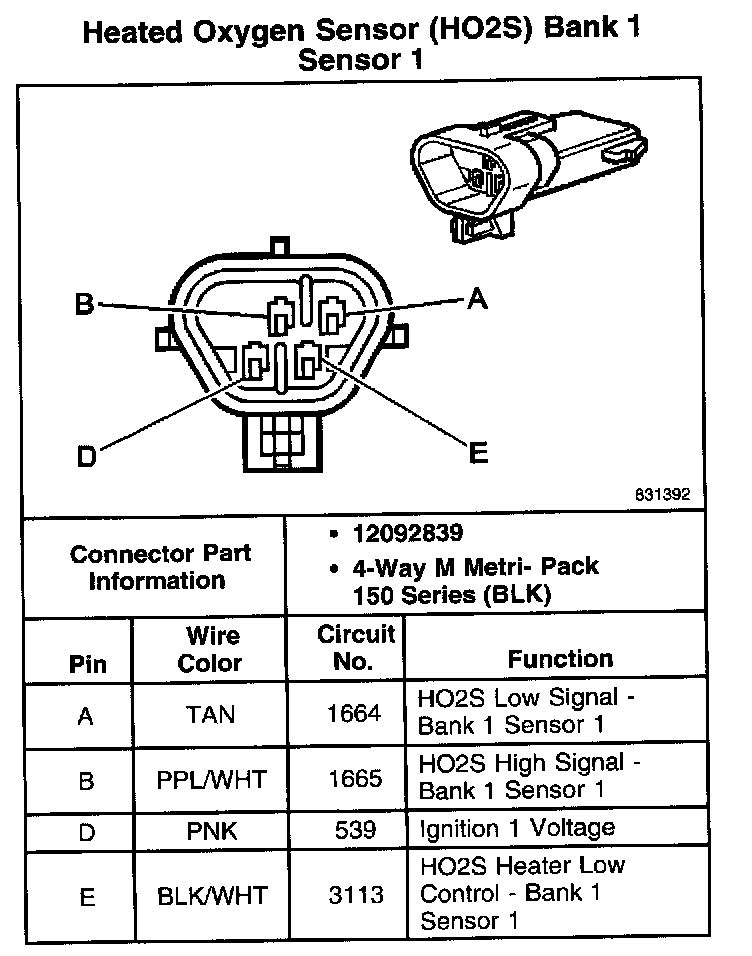

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1:

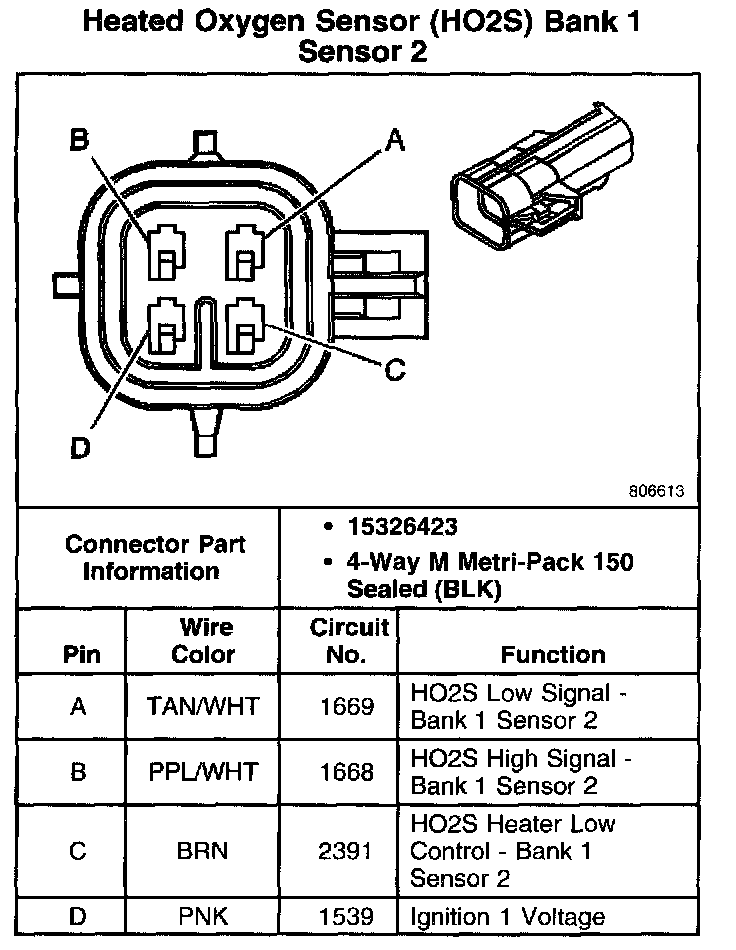

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2:

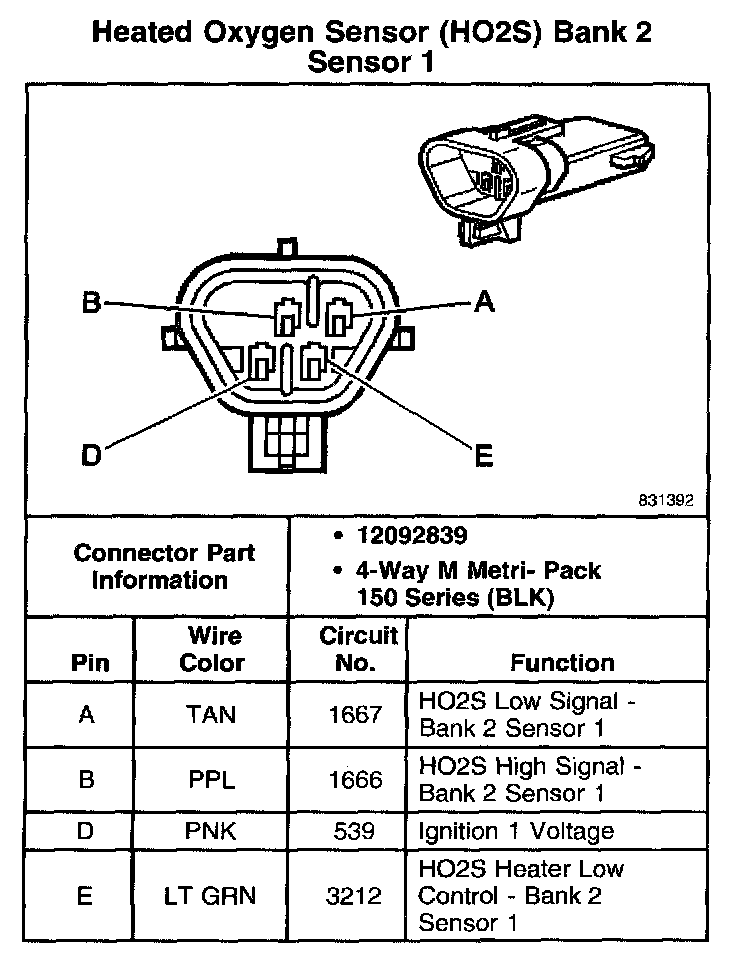

Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1:

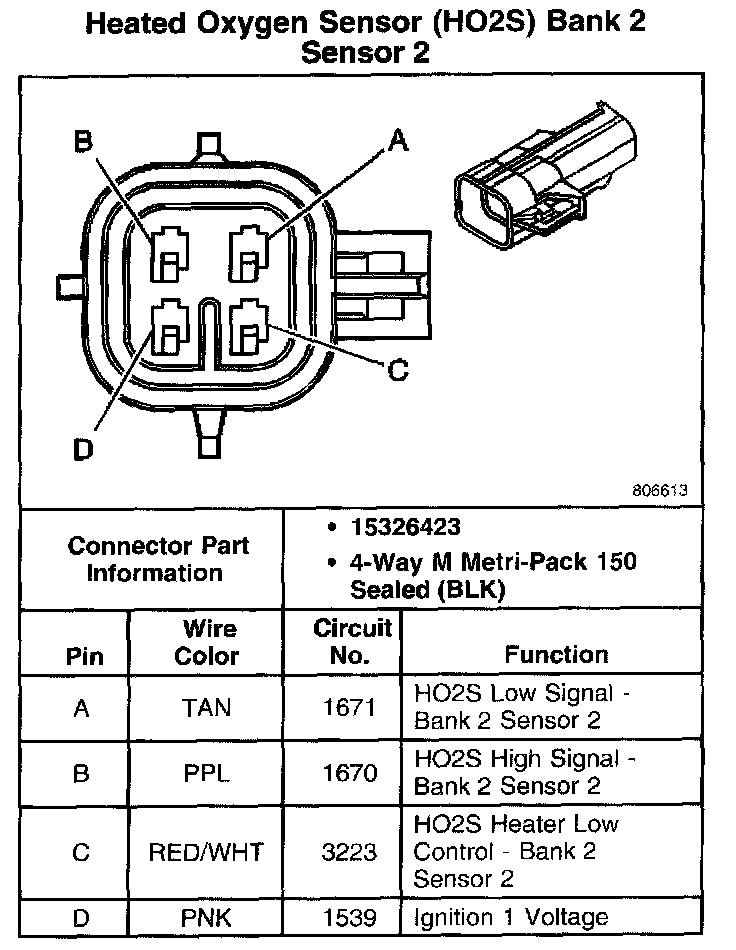

Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2:
