Compressor Clutch Relay: Service and Repair

COMPRESSOR RELAY REPLACEMENT

REMOVAL PROCEDURE




1. Remove the cover from the underhood convenience center (1).

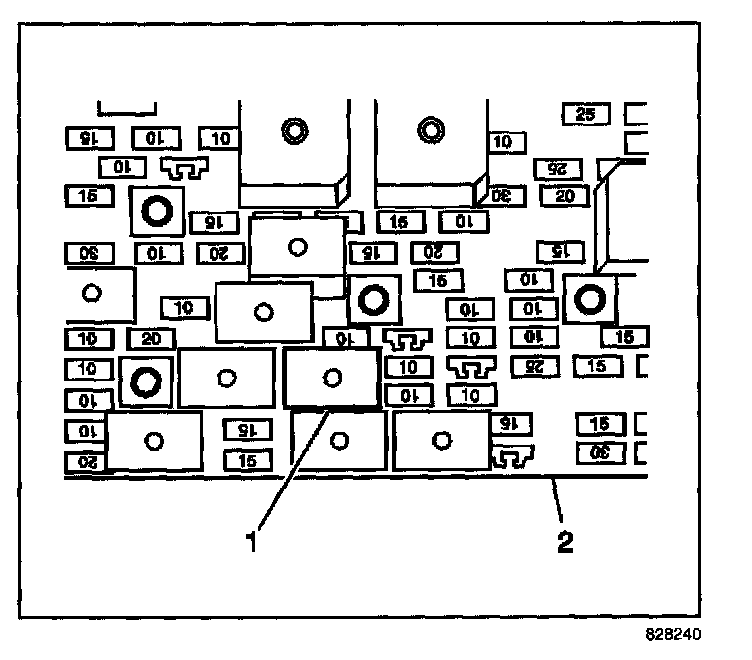

2. Remove the A/C compressor relay (1) from the convenience center (2).

INSTALLATION PROCEDURE

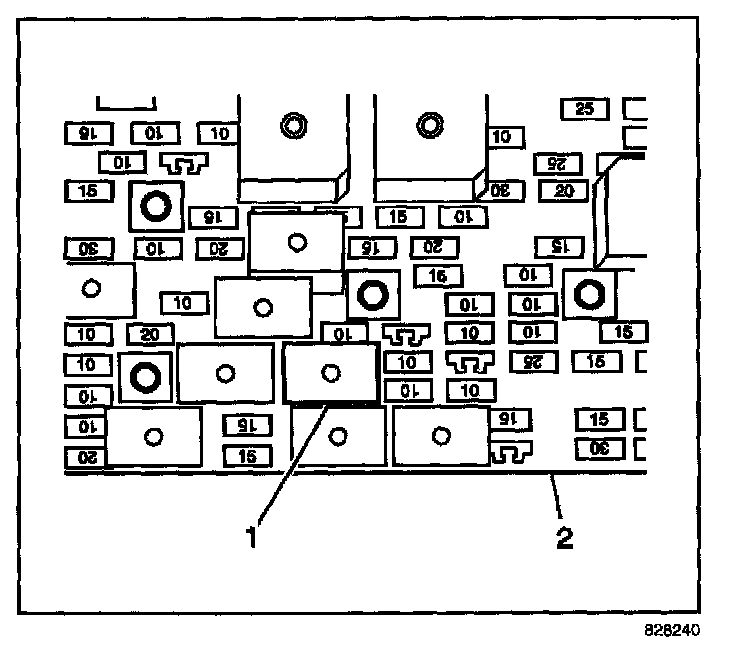

1. Install the A/C compressor relay (1) to the convenience center (2).
2. Install the cover to the underhood convenience center (1).
