Intake Manifold

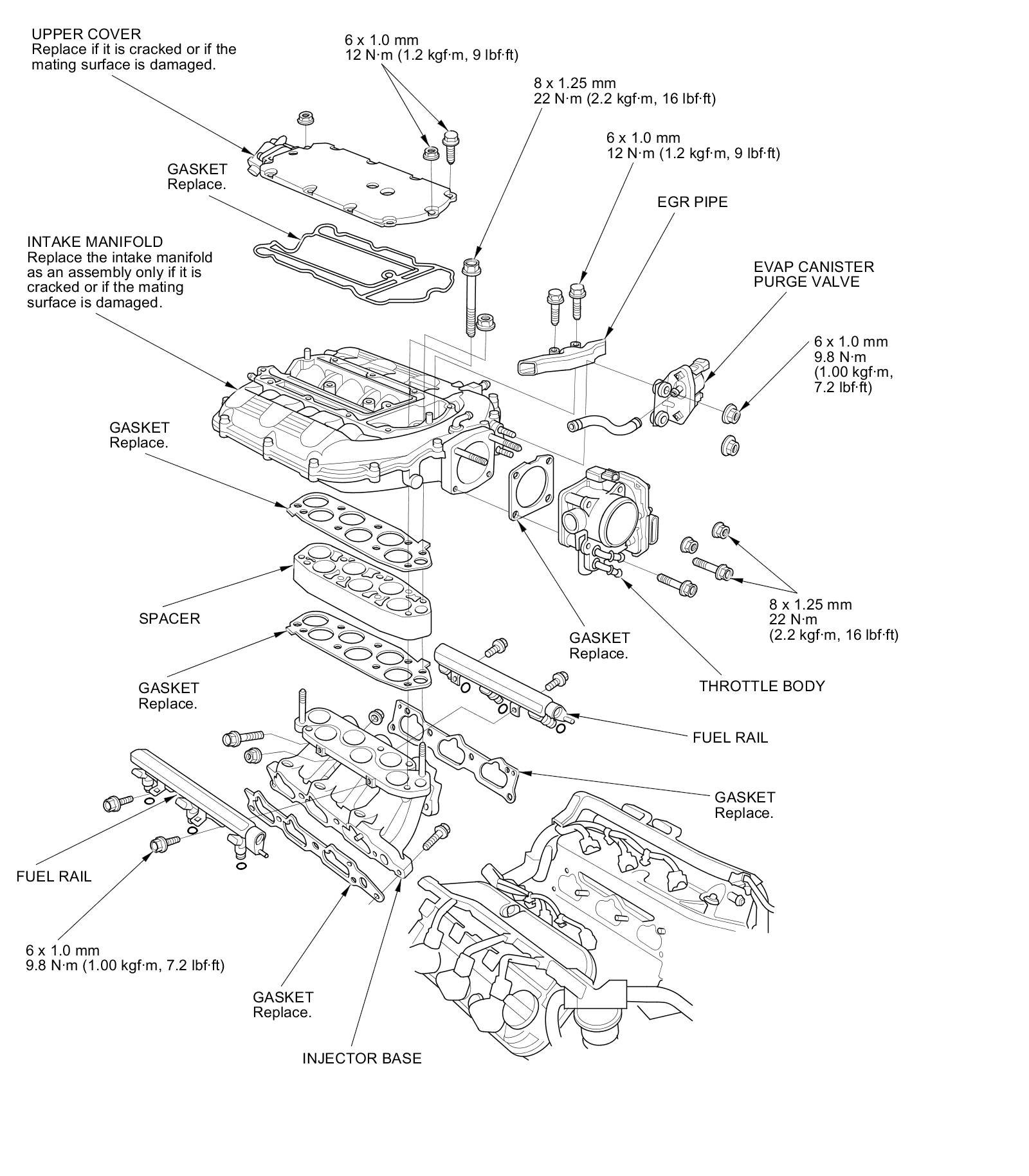

Exploded View

Intake Manifold Torquing:

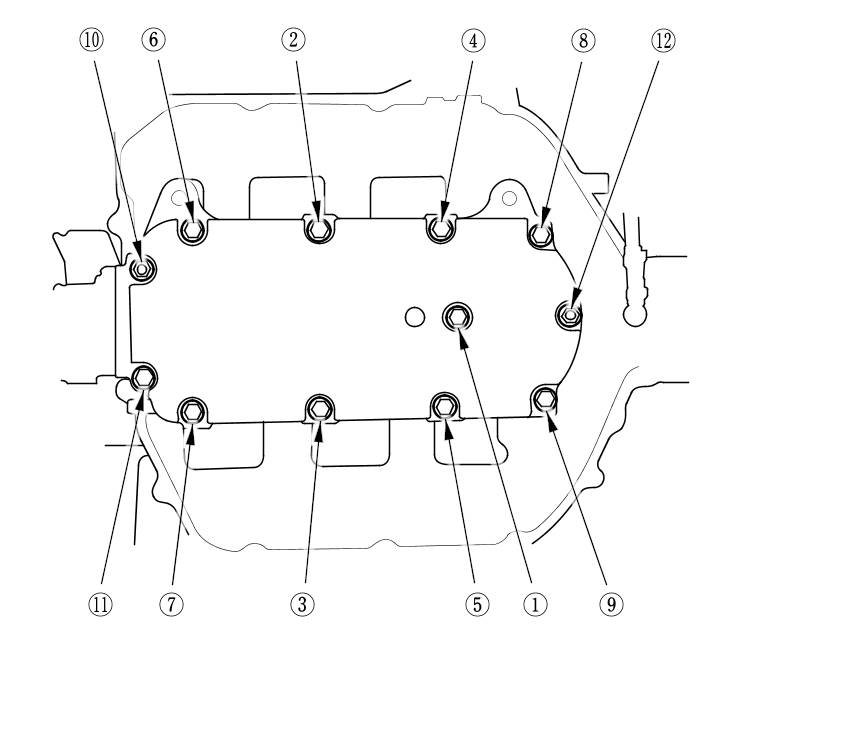

Tighten the manifold bolts and nuts sequentially in three steps. Always use a new intake manifold gasket.

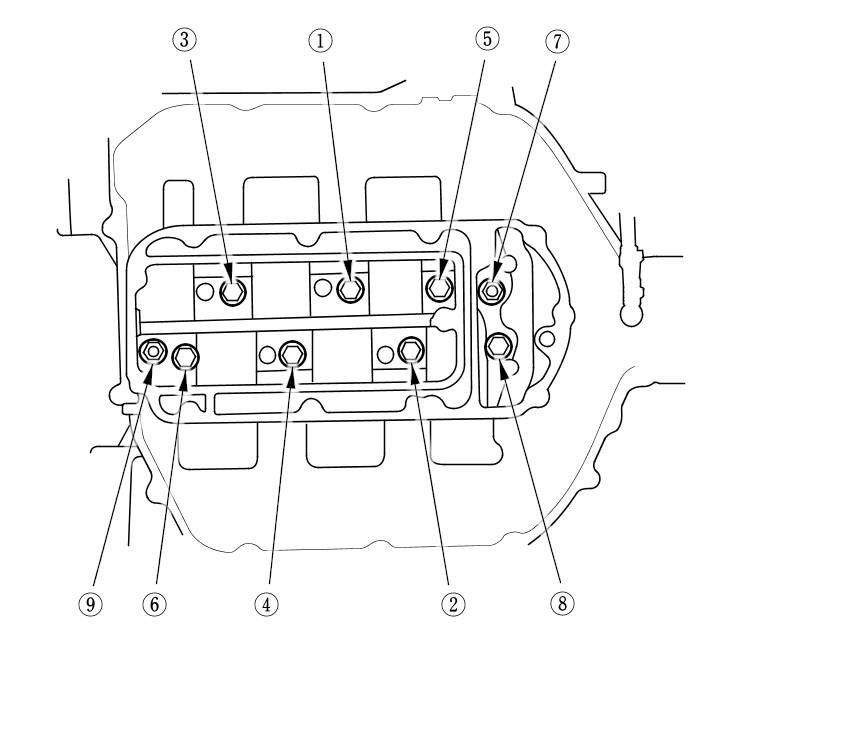

Tighten the upper cover bolts and nuts sequentially in three steps. Always use a new gasket.
