Home >> Honda >> 2012 >> Ridgeline V6-3.5L >> Repair and Diagnosis >> Power and Ground Distribution >> Power Distribution Module >> Locations

Power Distribution Module: Locations

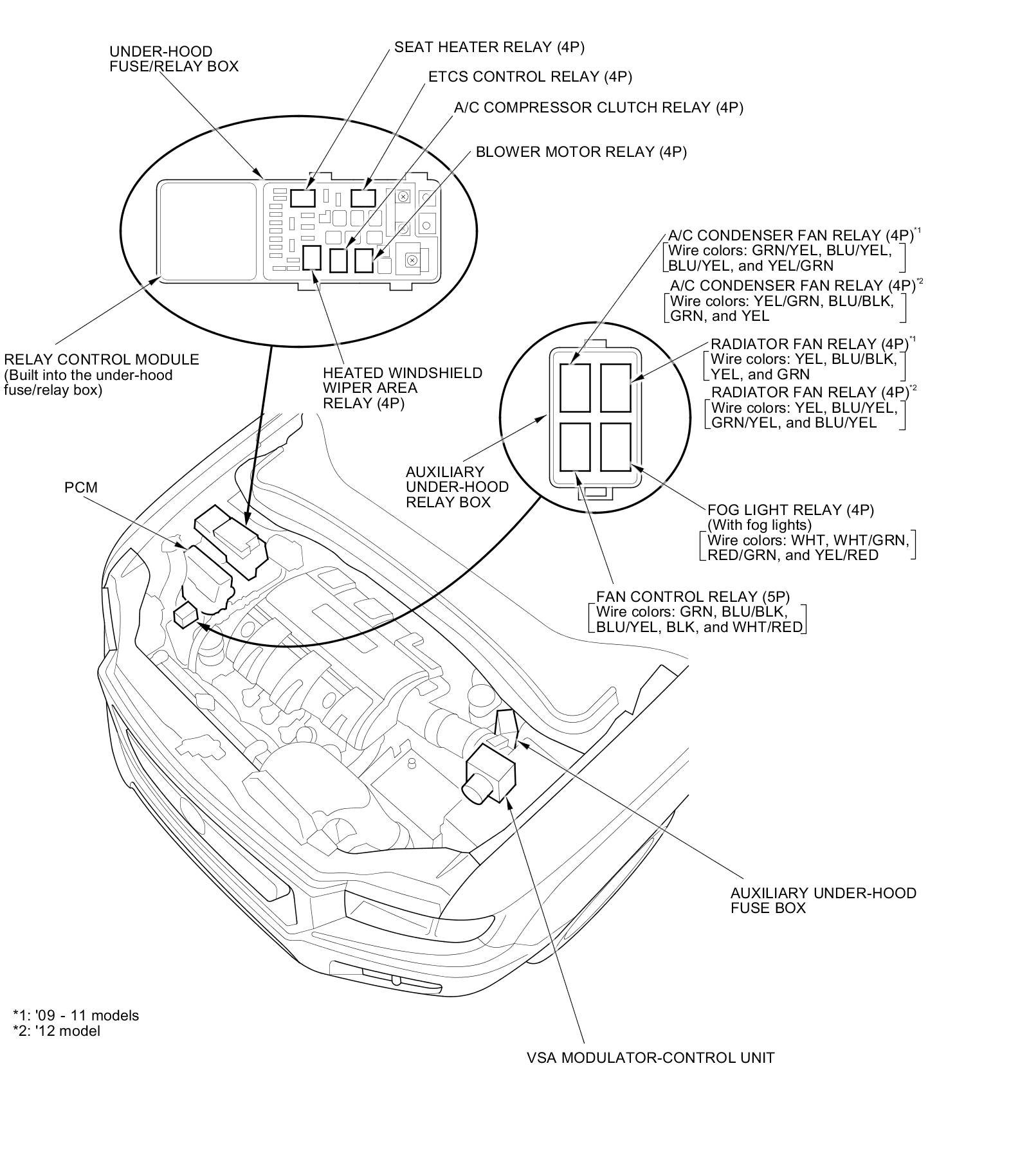

Relay and Control Unit Locations - Engine Compartment
