Honda
>>
2012
>>
Ridgeline V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Relay Box
>>

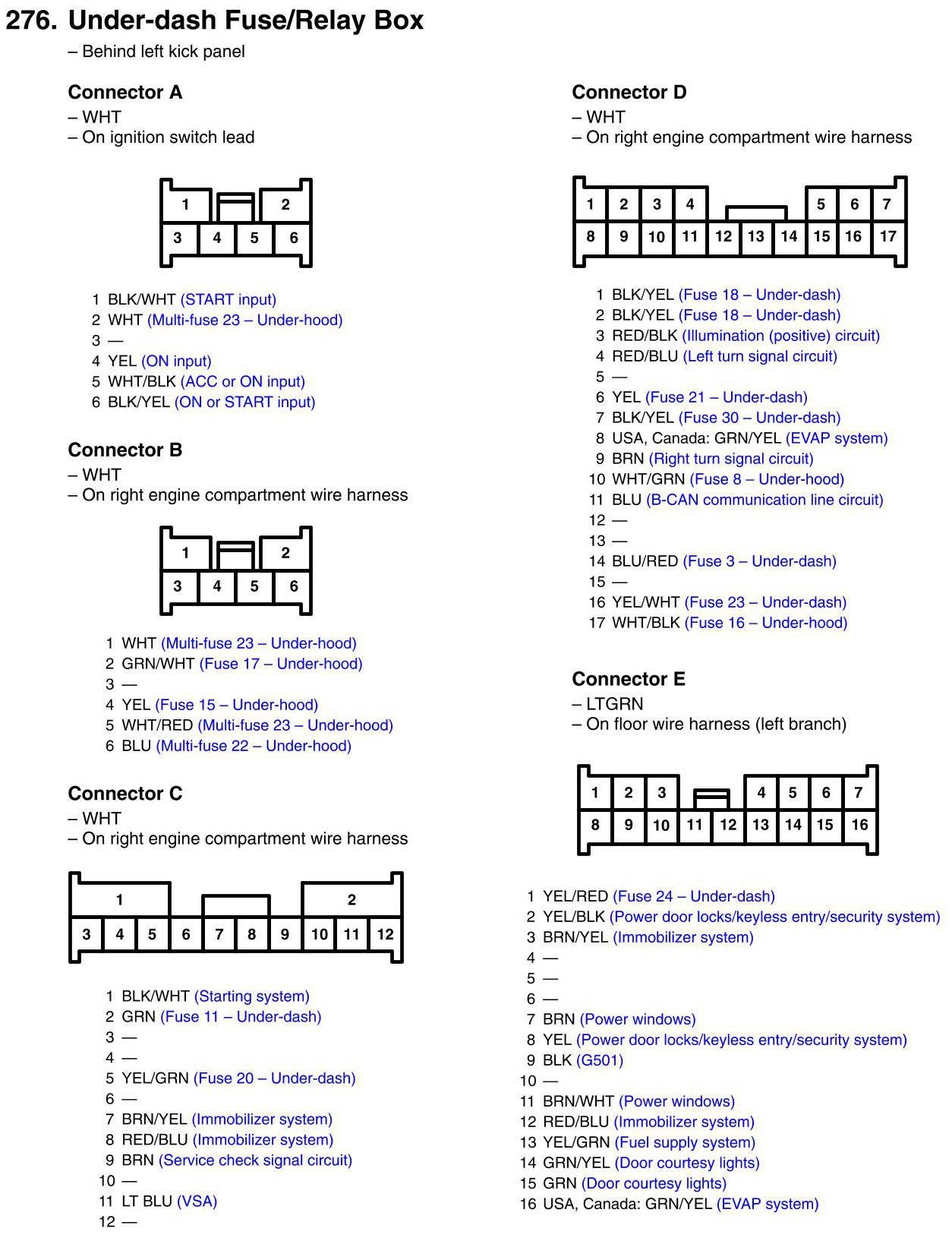

Under-dash Fuse/Relay Box Connector View
Under-dash Fuse/Relay Box Connector View
