Power Window Switch
>>

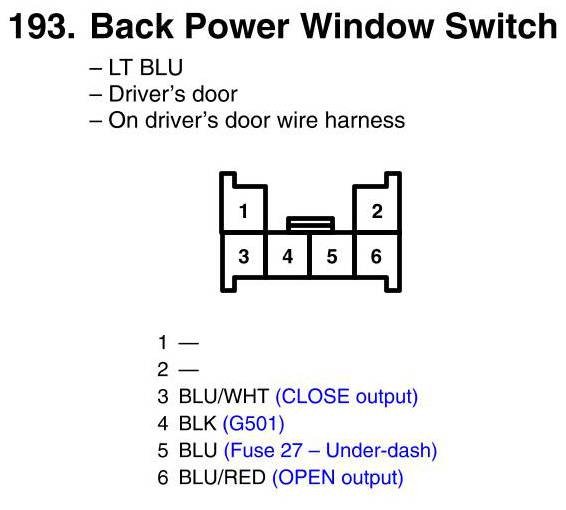

Back Power Window Switch Connector View
Back Power Window Switch Connector View
