Engine
>>
Cylinder Block Assembly
>>
Connecting Rod, Engine
>>
Connecting Rod Nut/Bolt Torque
Connecting Rod Nut/Bolt Torque

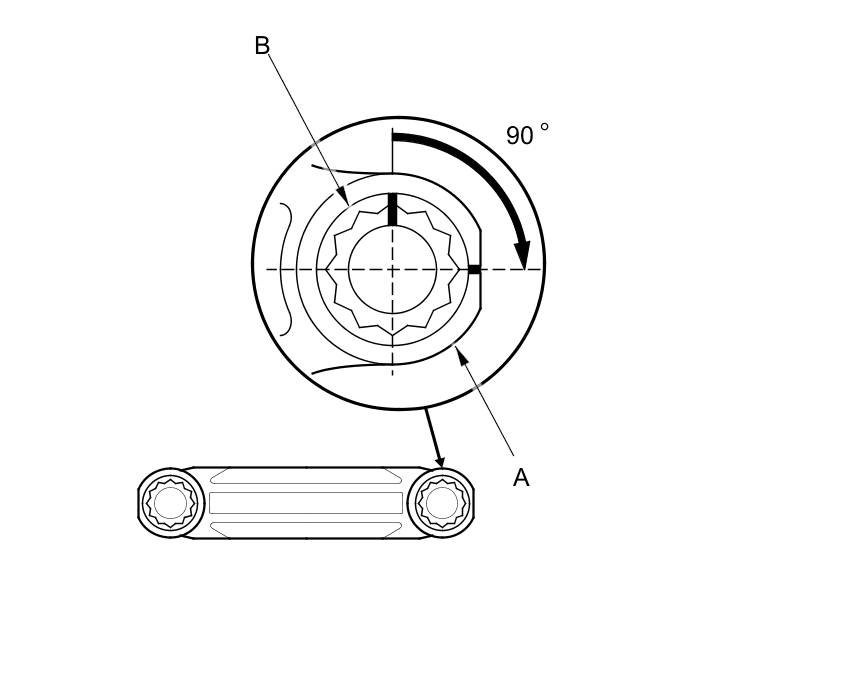

Torque the bolts (E) to
20 N-m (2.0 kgf-m, 15 lbf-ft).
Tighten the connecting rod bolt and additional
90 °.
