Intake Manifold

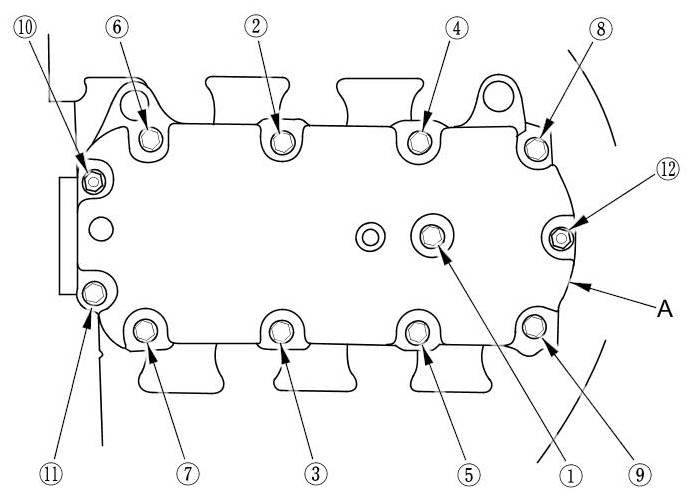

Intake Manifold

Tighten the bolts and nuts sequentially in three steps. Always use a new intake manifold gasket.

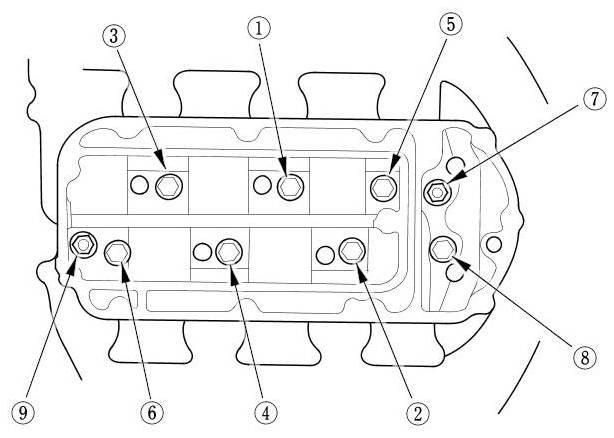

Upper cover (A)

Tighten the bolts and nuts sequentially in three steps. Always use a new gasket.
