Power Sliding Door Module
>>

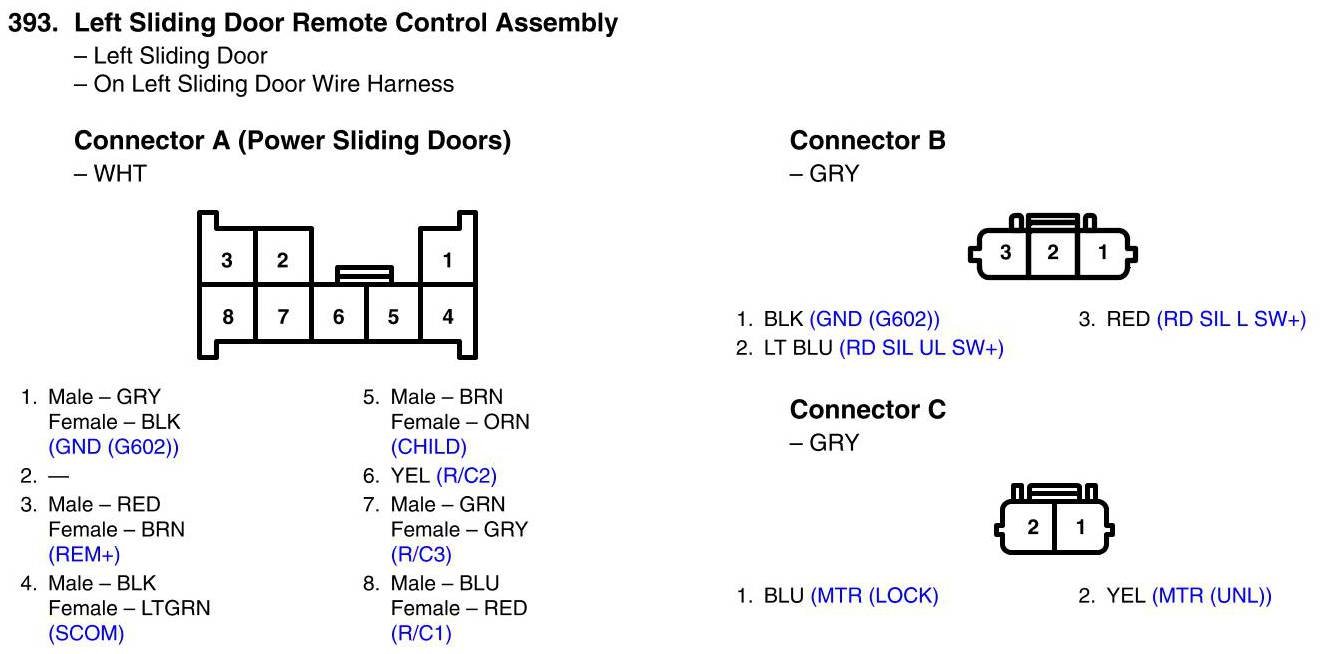

Left Sliding Door Remote Control Assembly Connector View
Left Sliding Door Remote Control Assembly Connector View
