Humidity/In-Car Temperature Sensor Replacement

Humidity/In-Car Temperature Sensor Replacement

1. Remove the instrument panel Instrument Panel Removal / Installation.

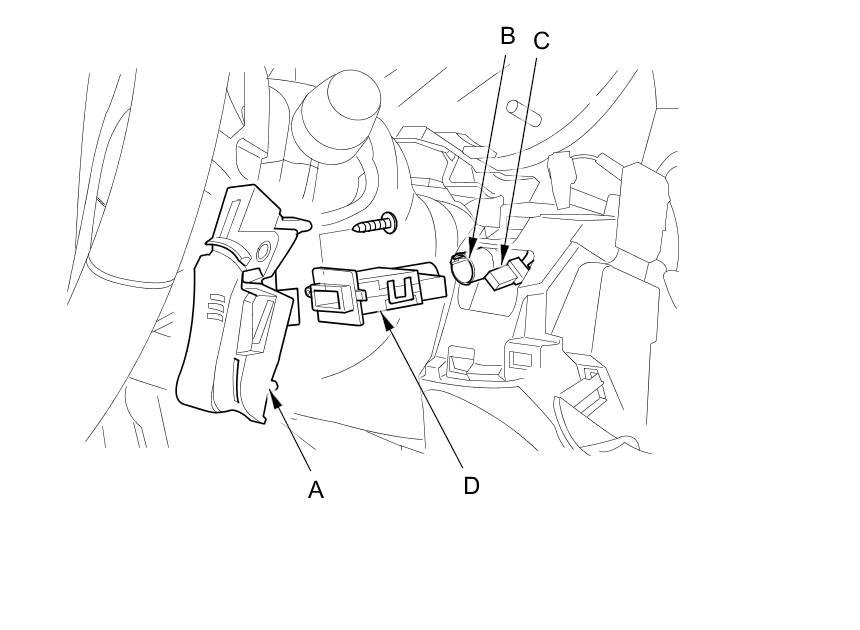

2. Remove the humidity/in-car temperature sensor trim (A) Humidity/In-Car Temperature Sensor Trim Removal / Installation.





3. Remove the aspirator air hose (B), and disconnect the connector (C).

4. Remove the self-tapping screw and the humidity/in-car temperature sensor (D) from the humidity/in-car temperature sensor trim (A).

5. Install the sensor in the reverse order of removal. Be sure to connect the aspirator air hose securely.
