lemon-mirror
:
Home
>>
Honda
>>
2012
>>
Fit L4-1.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Fuse To Components Index
Fuse To Components Index

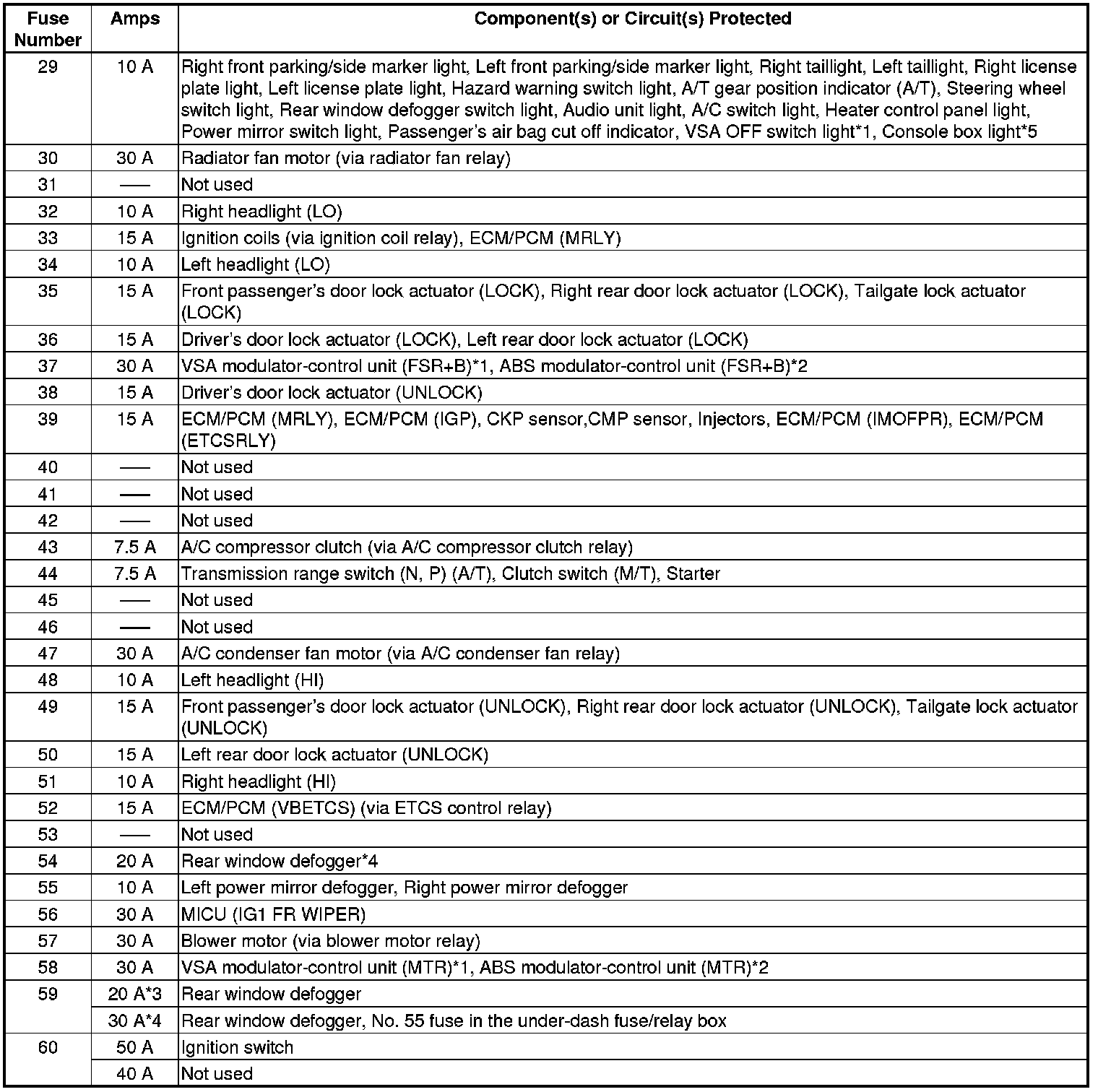

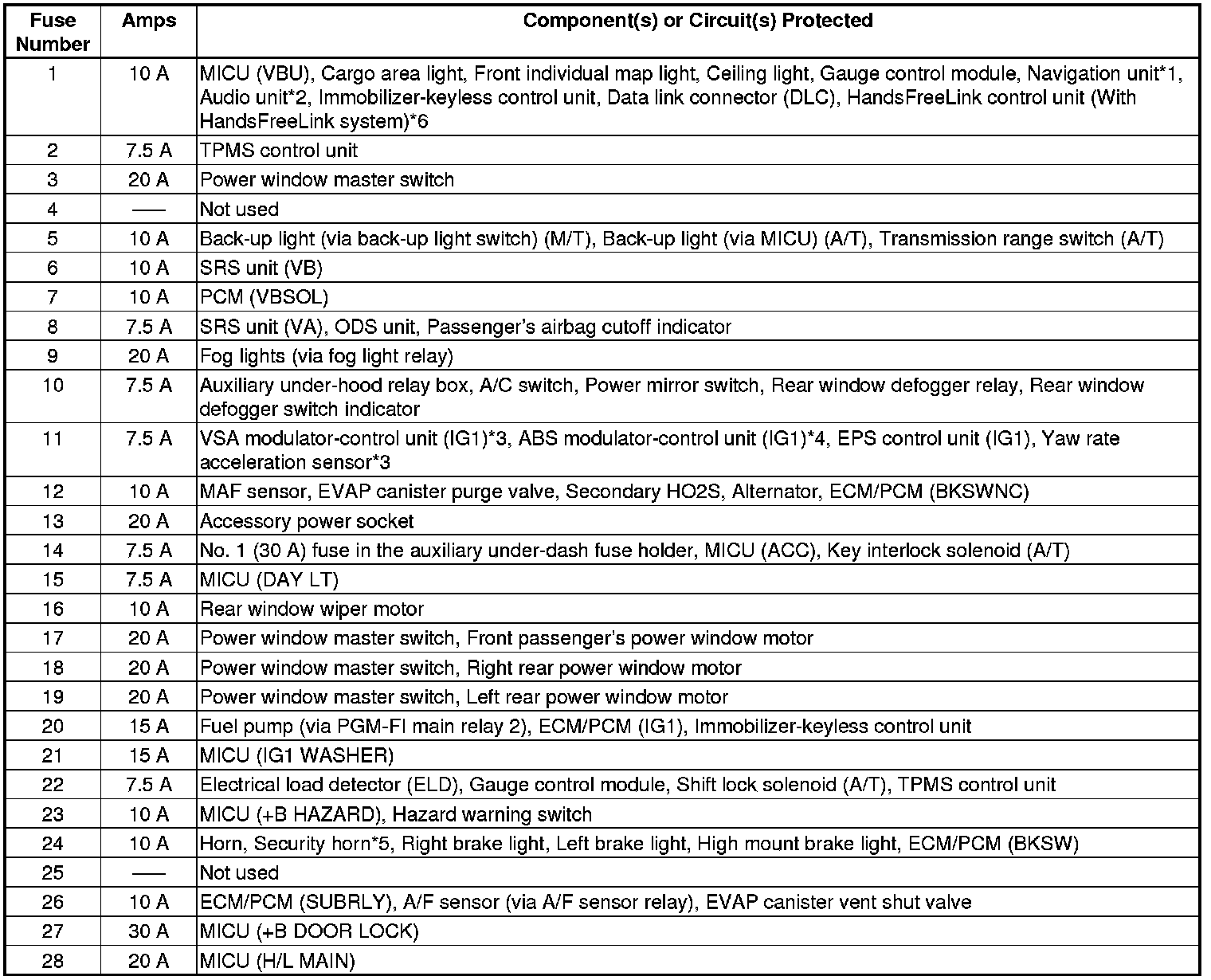

Fuse to Components Index

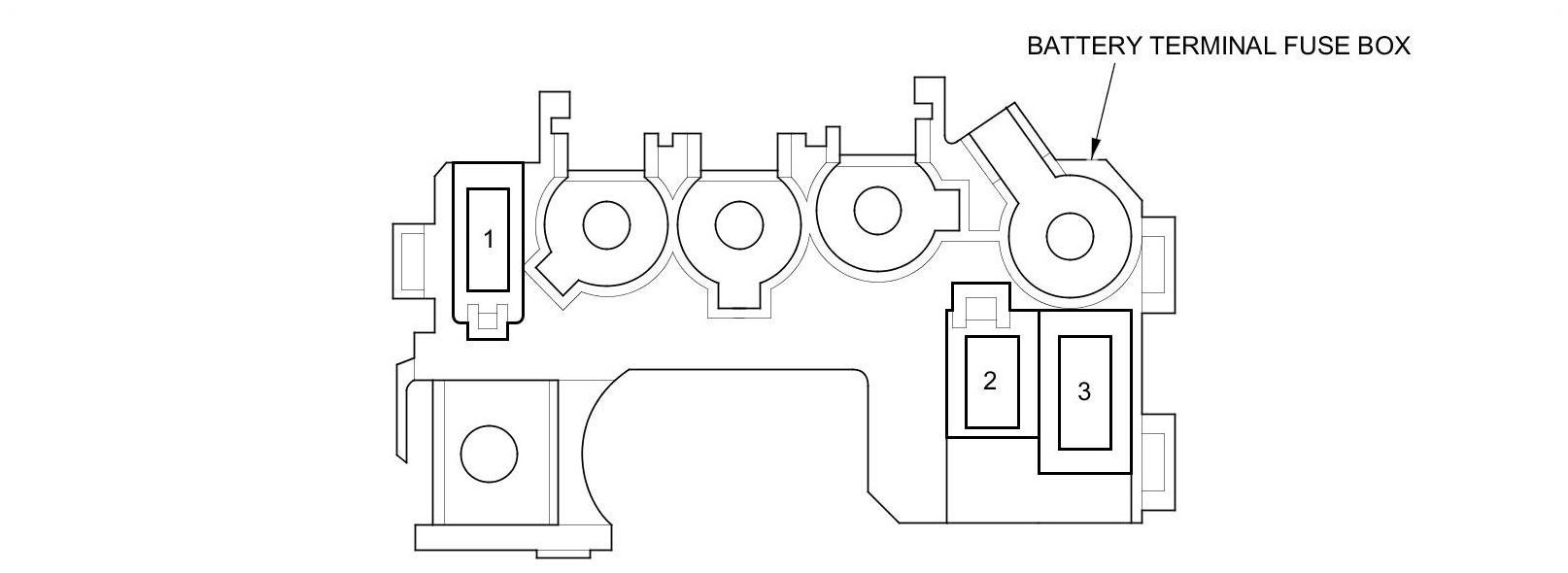

Battery Terminal Fuse Box

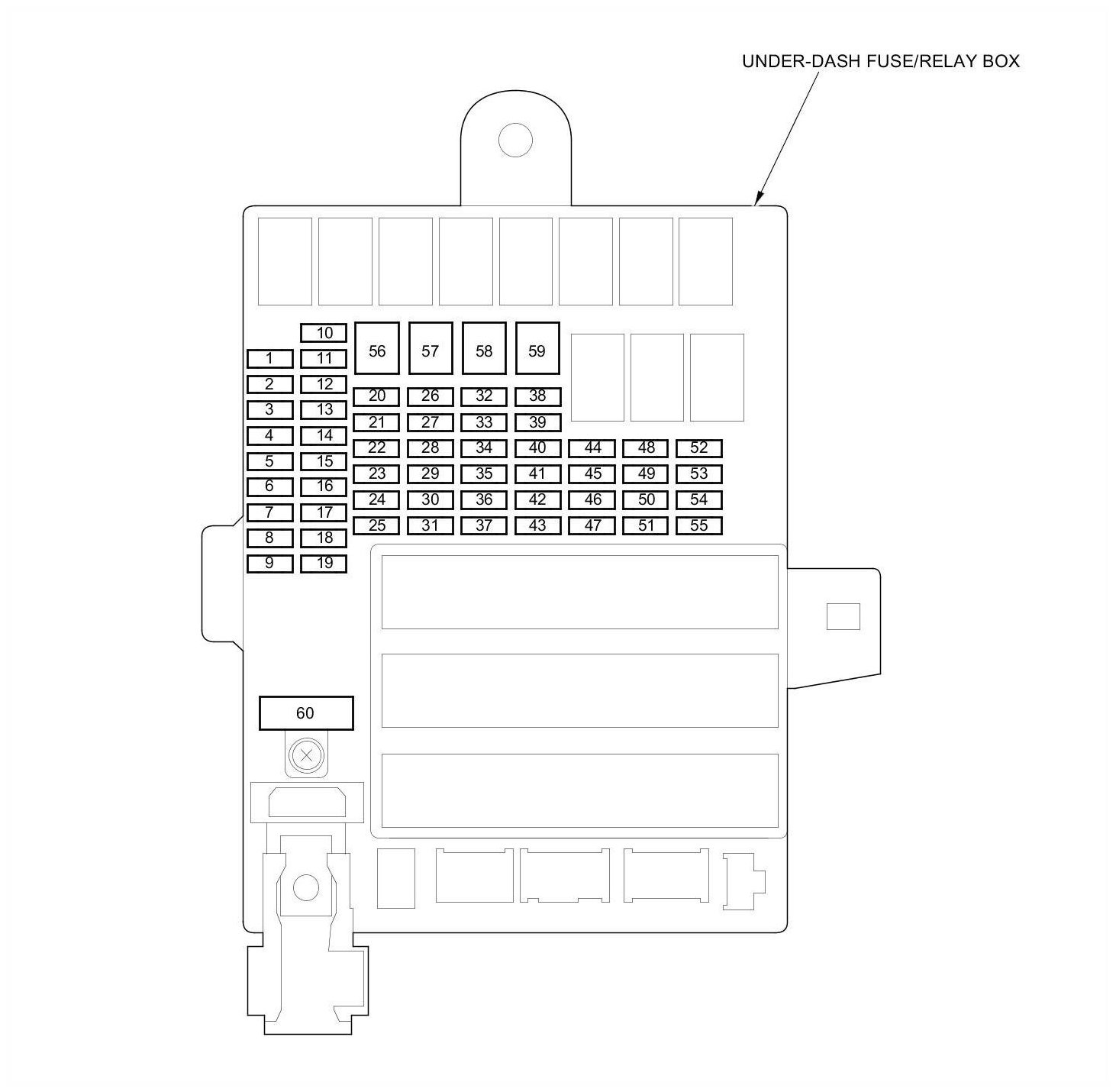

Under-dash Fuse/Relay Box

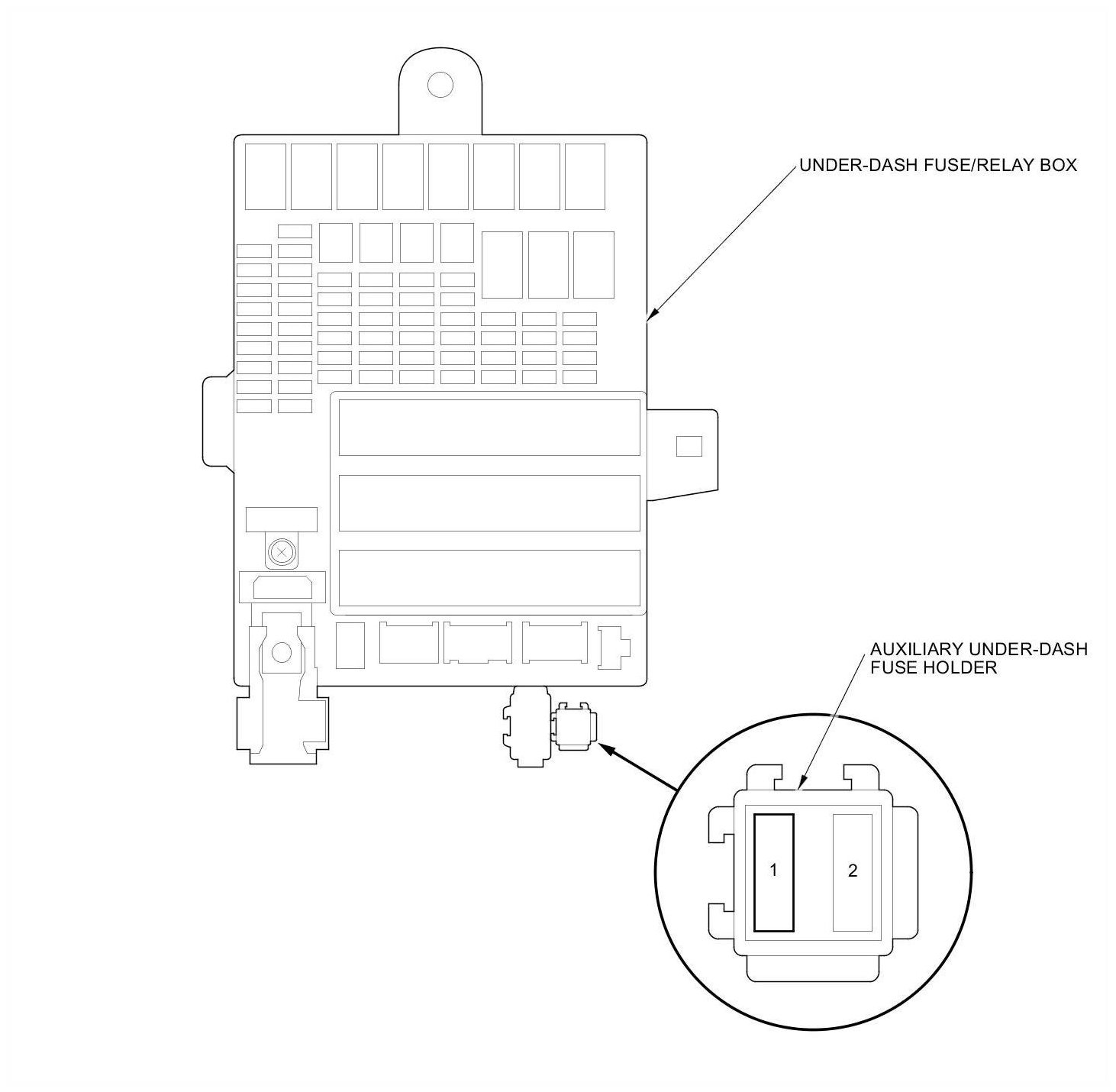

Auxiliary Under-dash Fuse Holder
