Intake Manifold

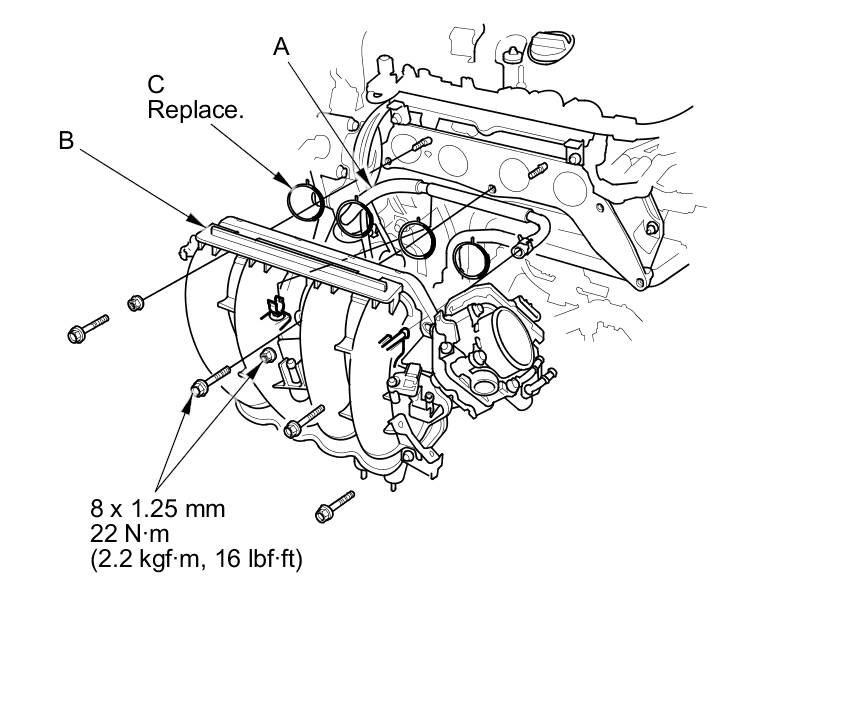

Intake manifold (B)

Tighten the bolts and nuts in a crisscross pattern in three steps, beginning with the inner bolt.
