Home >> Honda >> 2012 >> Civic Si L4-2.4L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

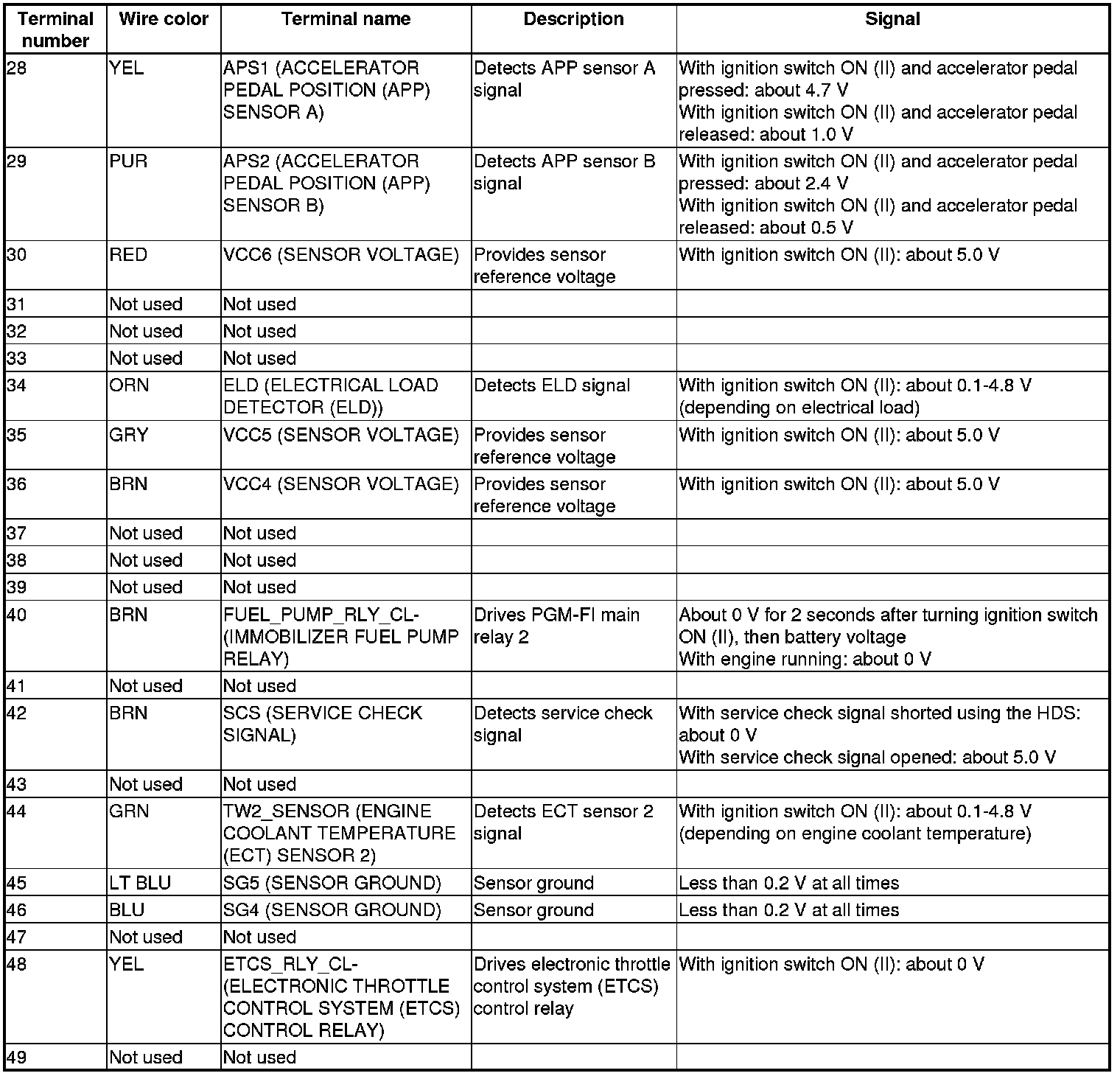

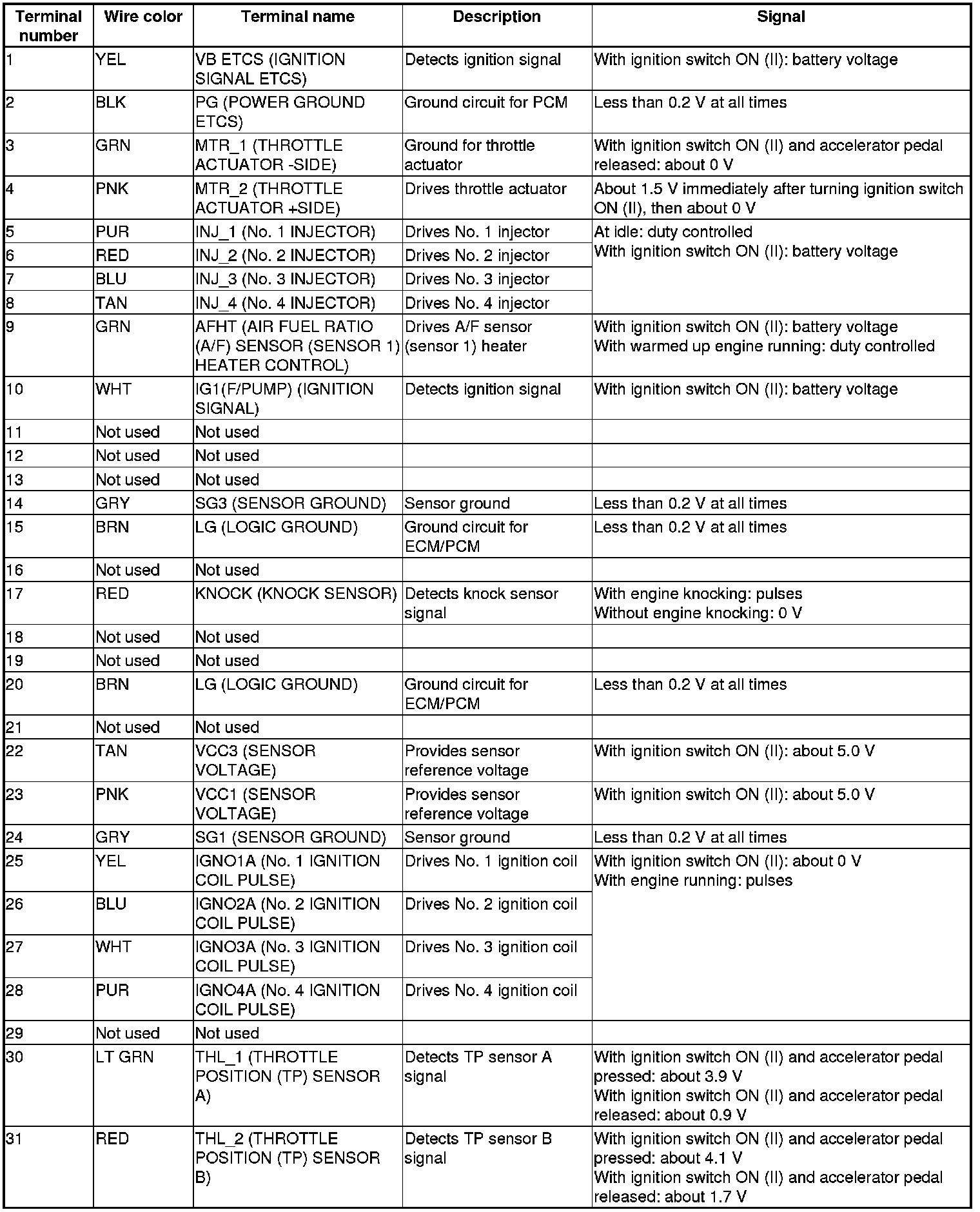

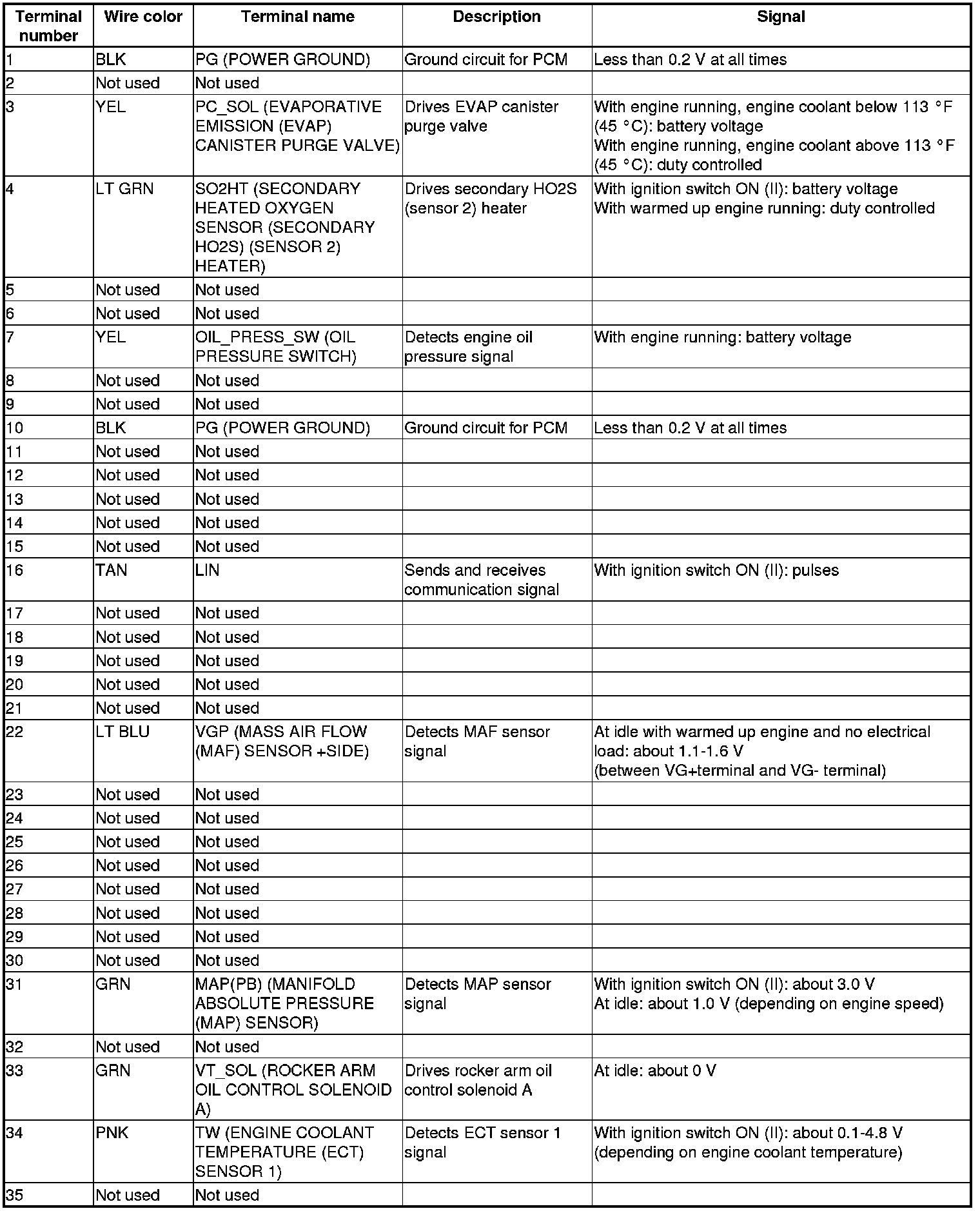

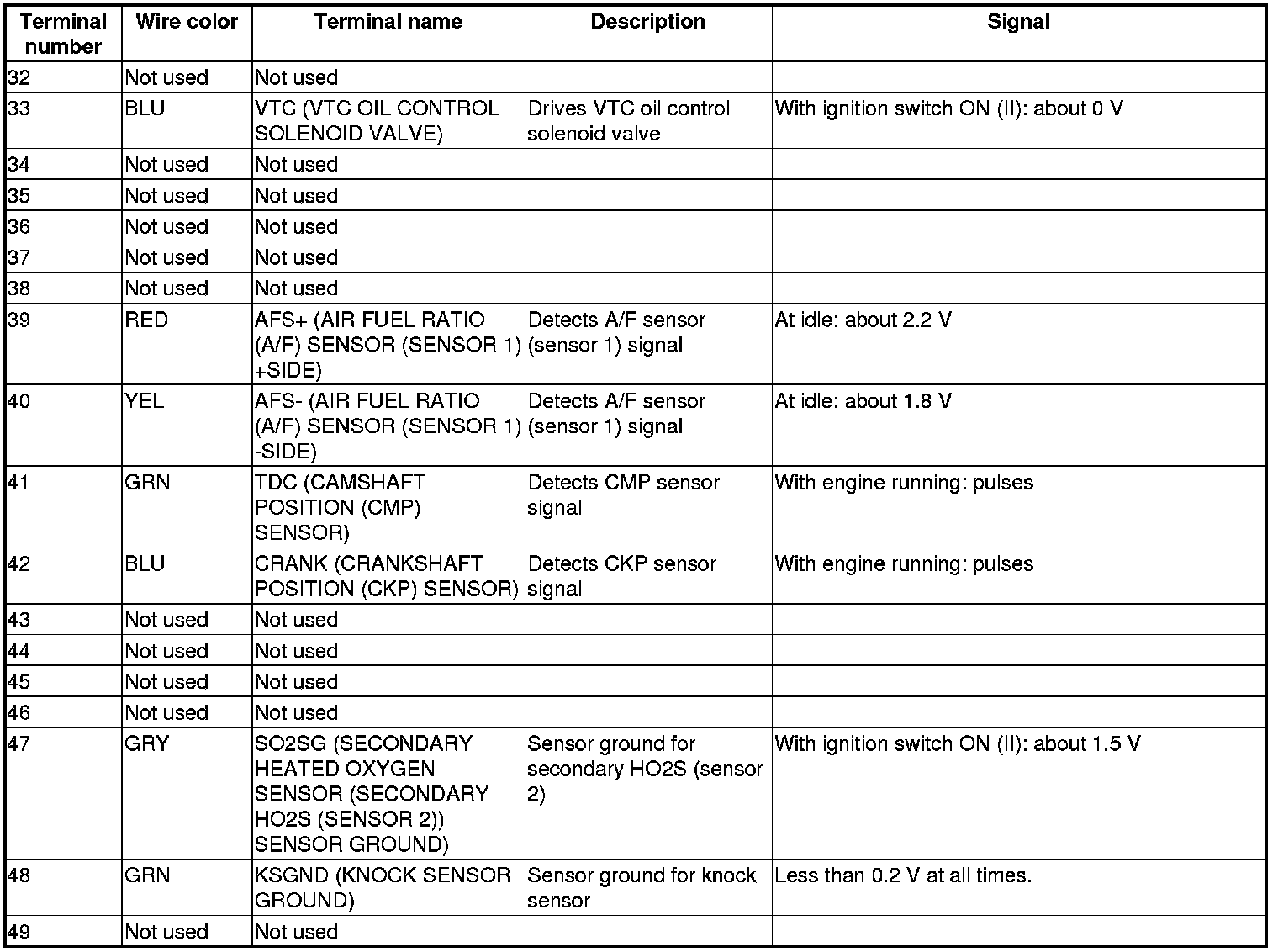

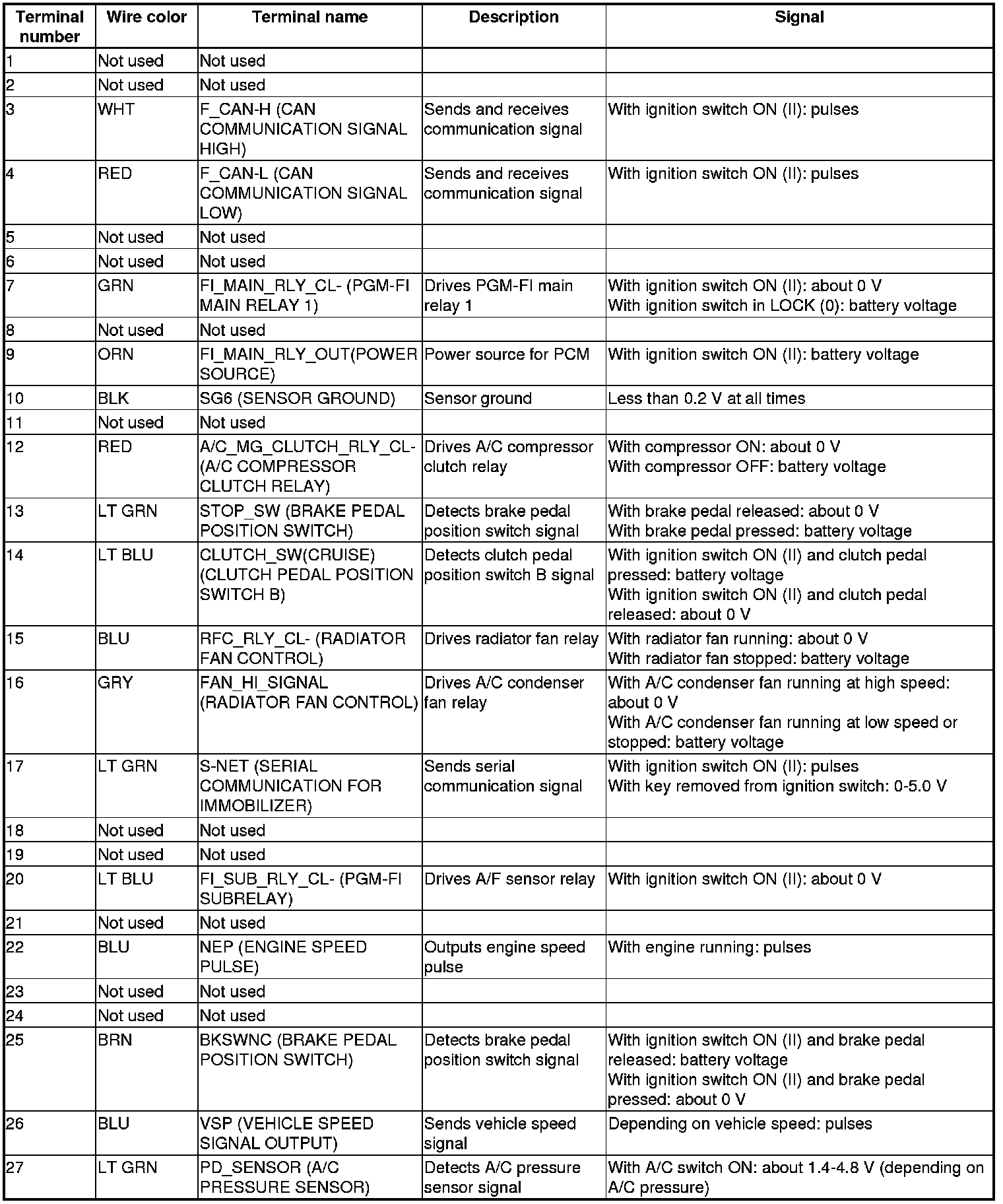

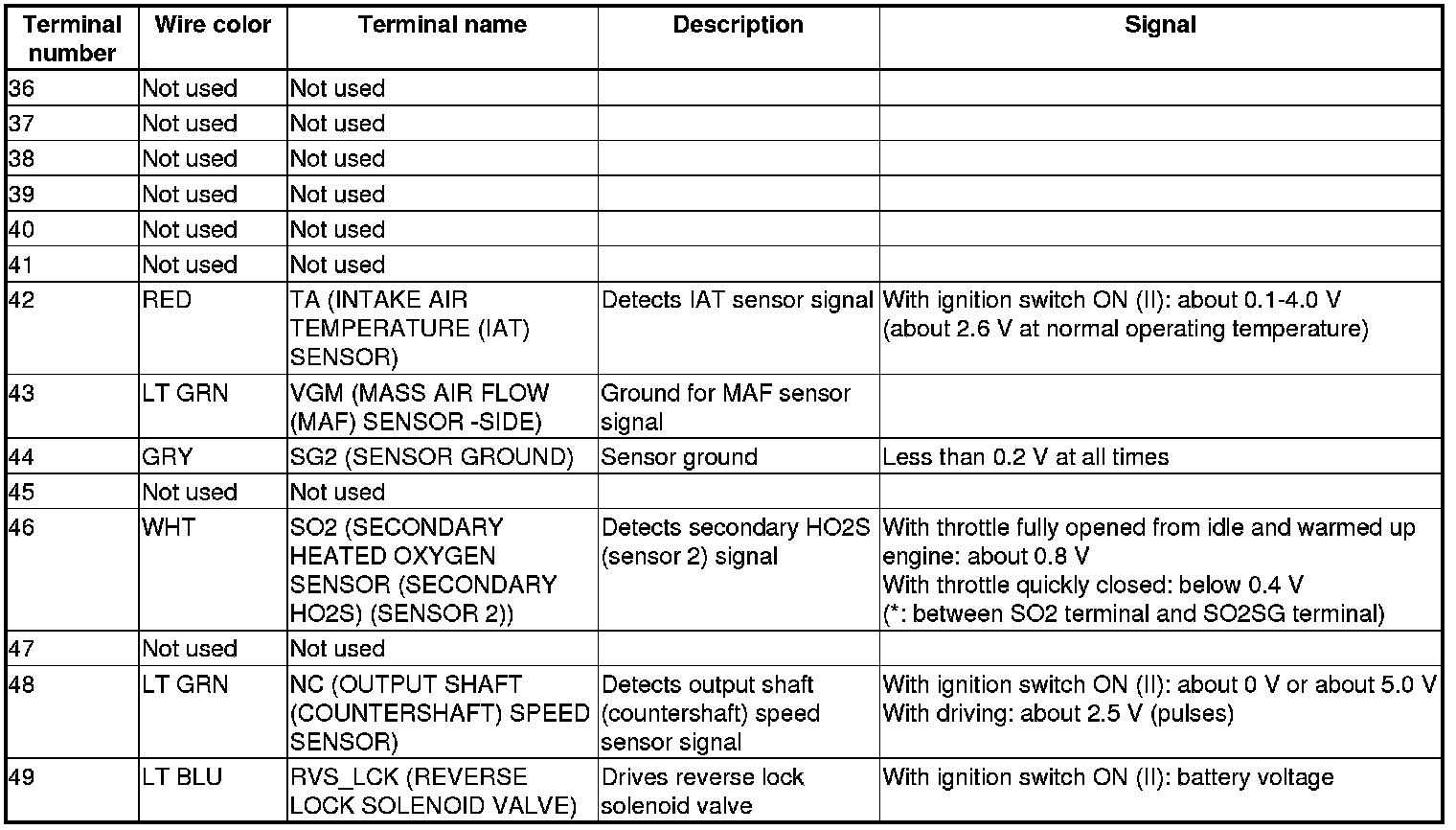

Pinout Values and Diagnostic Parameters




Engine

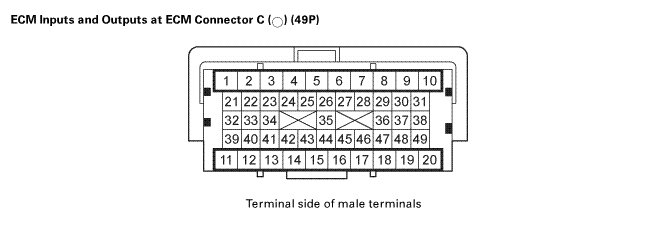

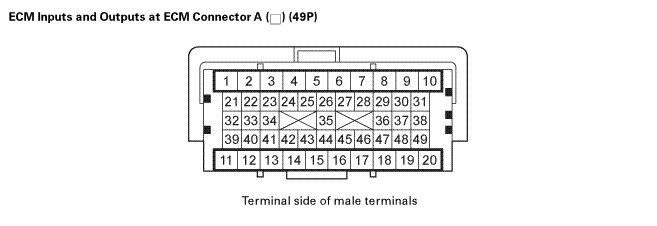

ECM Connector for Inputs and Outputs
