Air Flow Meter/Sensor: Service and Repair

MAF Sensor/IAT Sensor Removal and Installation

Removal

1. MAF/IAT Sensor





1. Disconnect the connector.

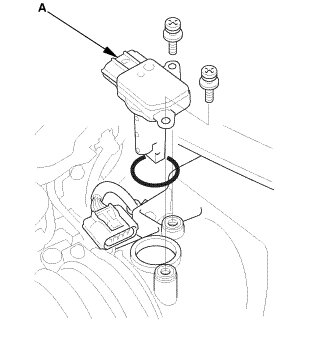

2. Remove the MAF sensor/IAT sensor (A).

Installation

1. MAF/IAT Sensor

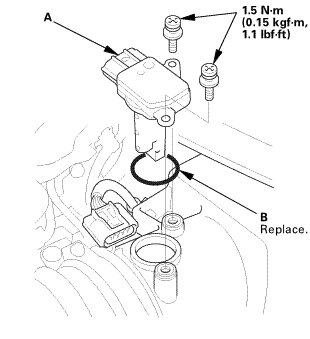

1. Install the MAF sensor/IAT sensor (A) with a new O-ring (B).

2. Connect the connector.
