Home >> Honda >> 2012 >> Civic L4-1.8L >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Locations

Keyless Entry: Locations

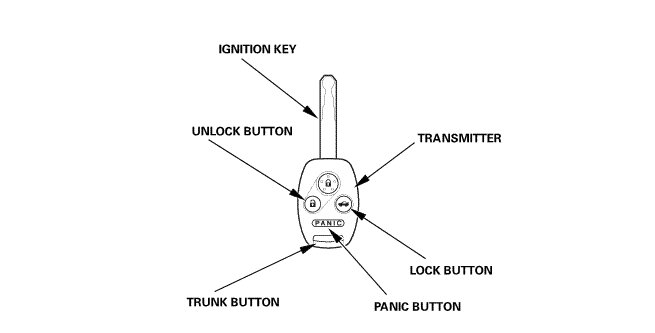

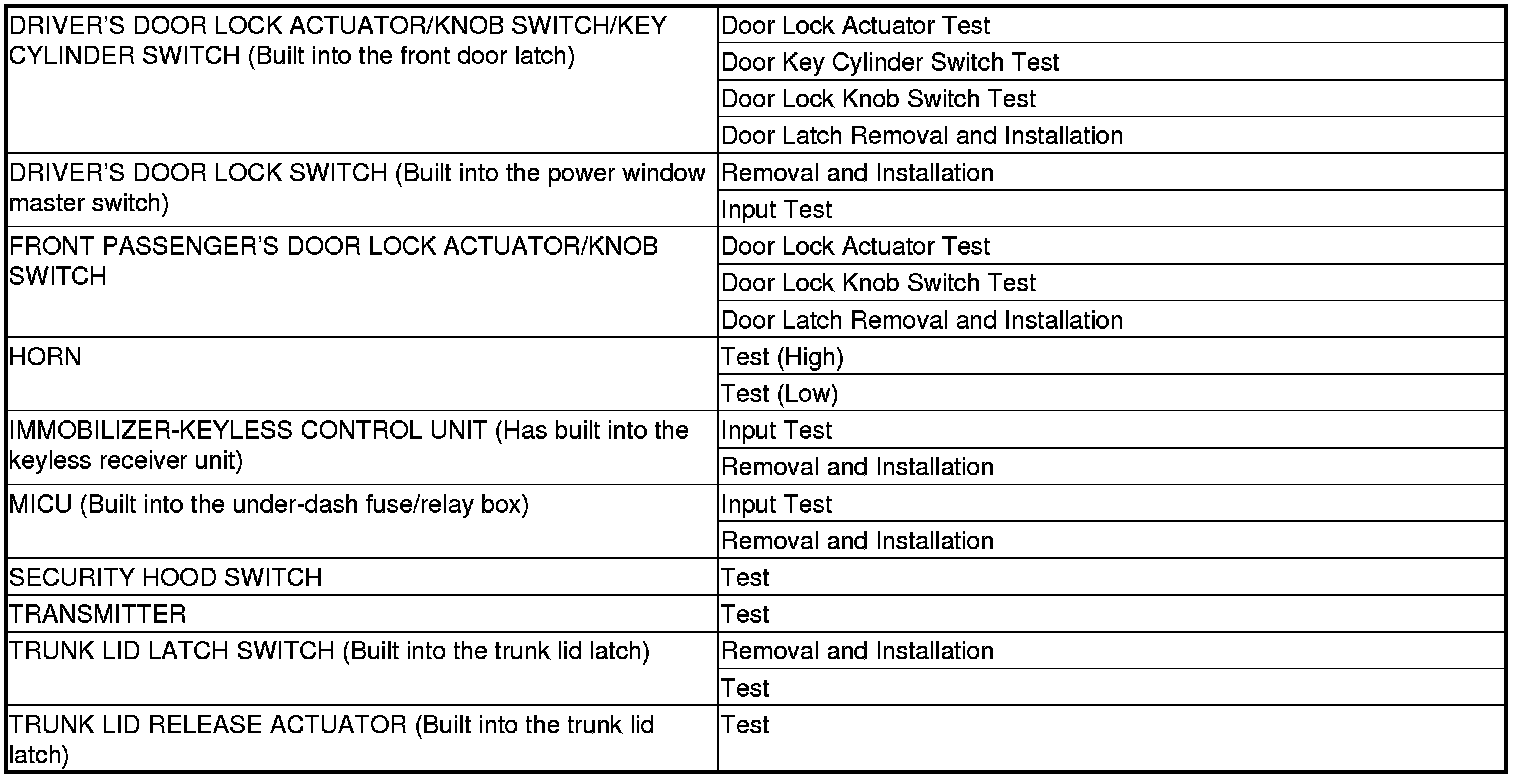

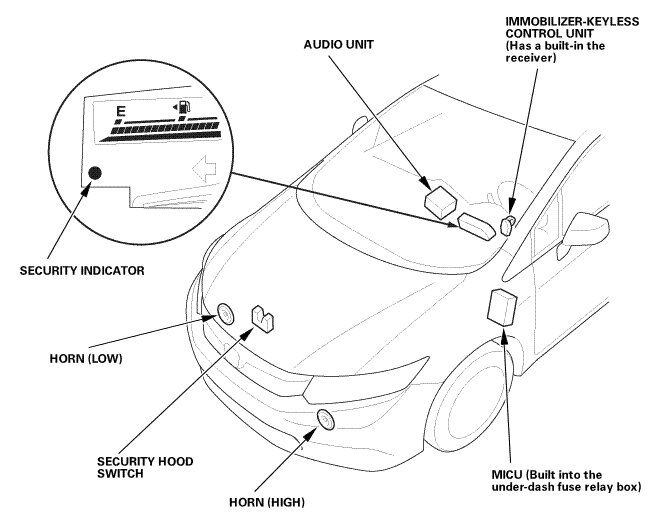

Keyless/Power Door Locks/Security System Component Location Index

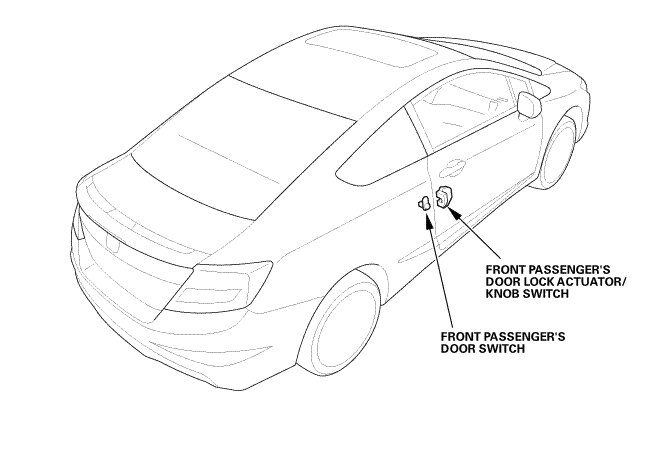

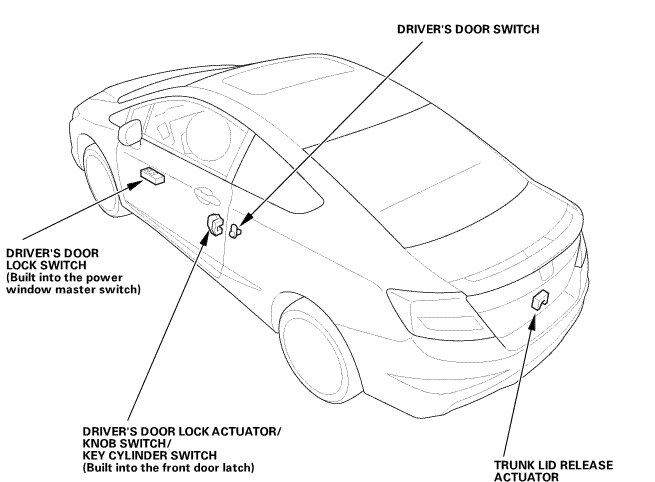

2-Door





2-Door





2-Door





2-Door

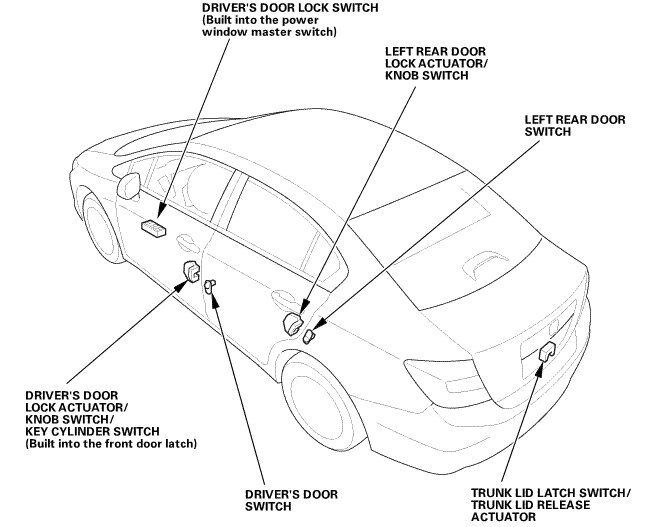

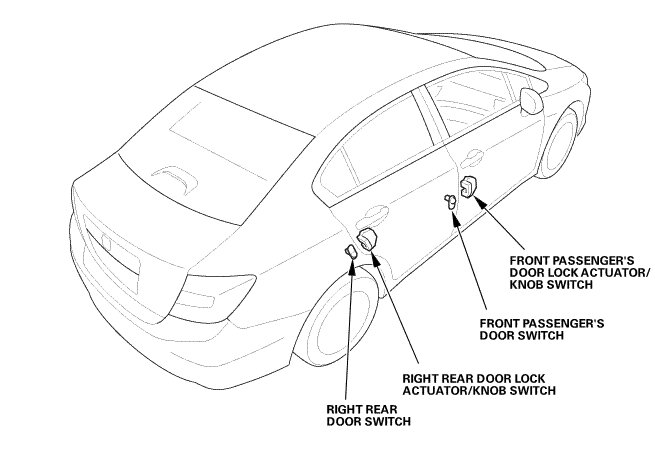

4-Door





4-Door










4-Door
