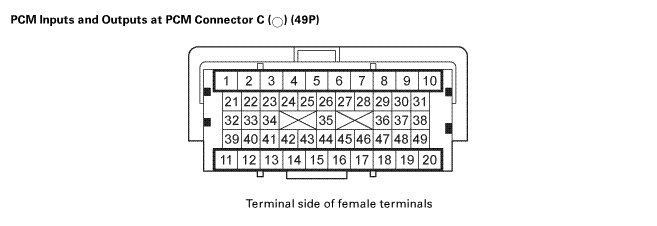

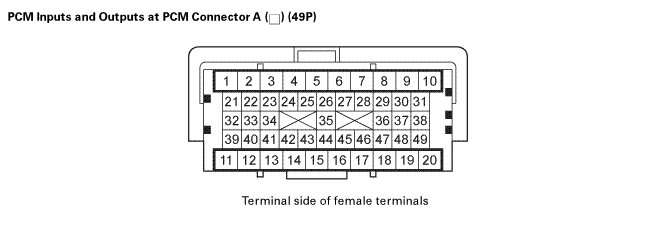

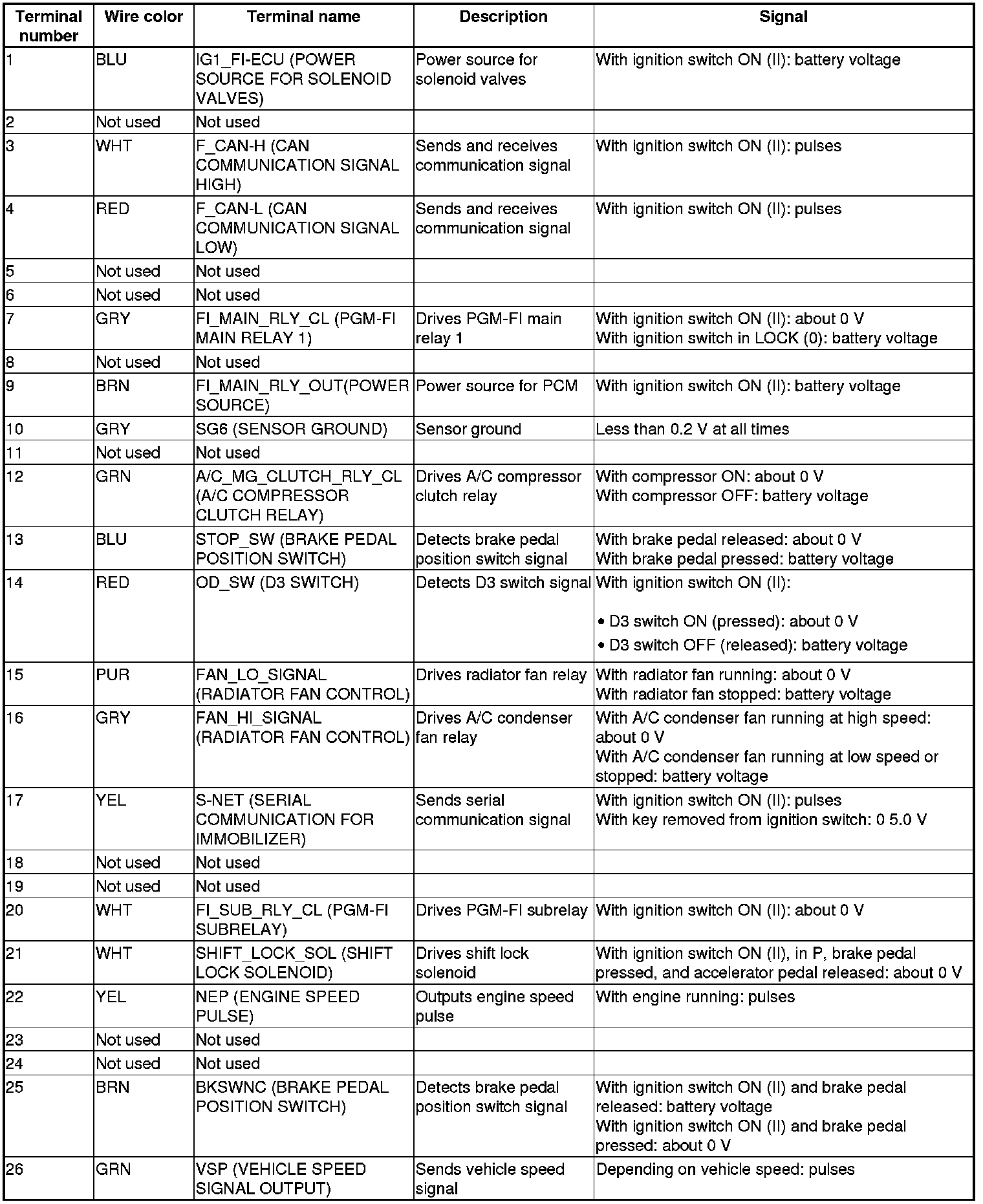

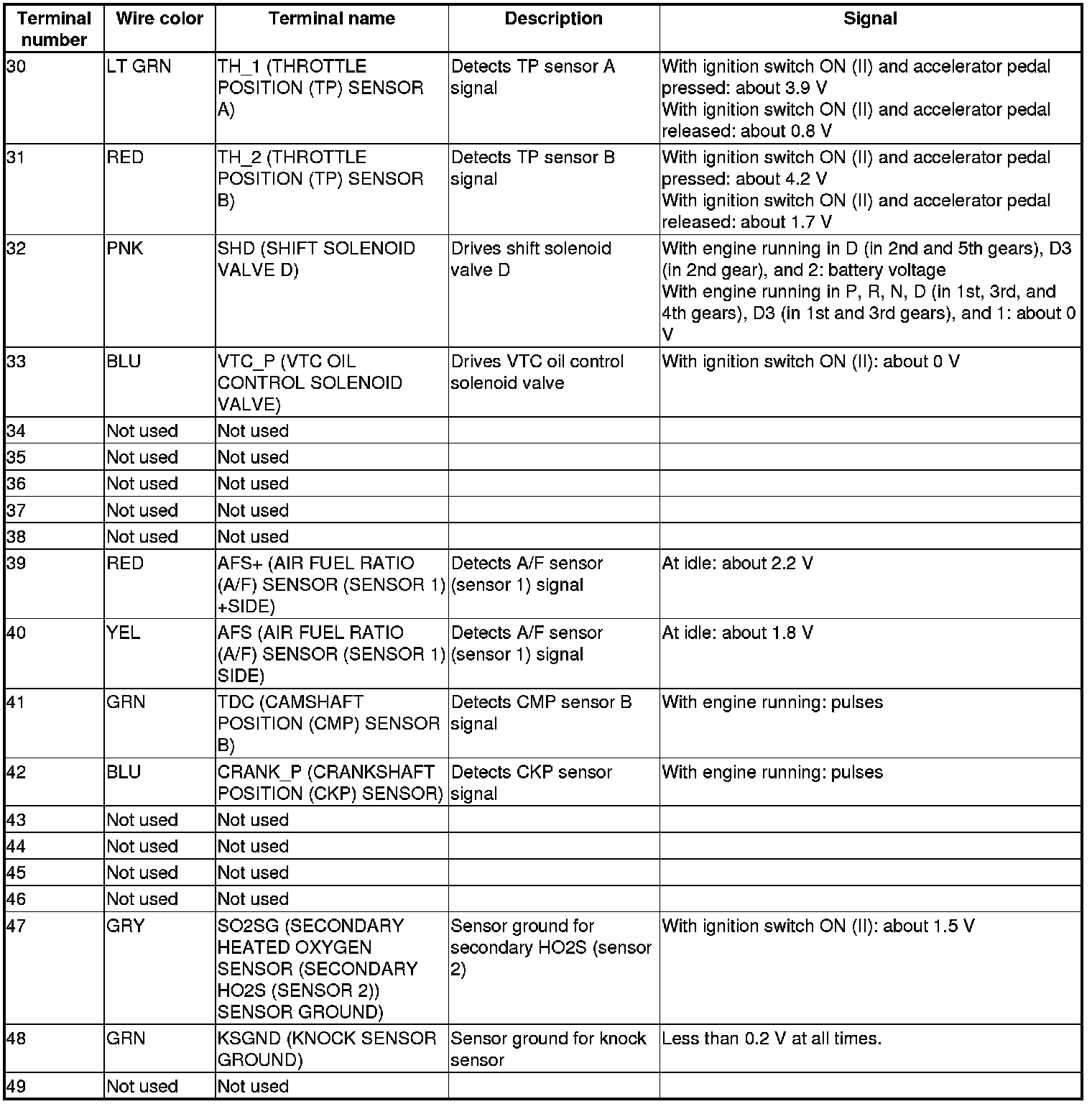

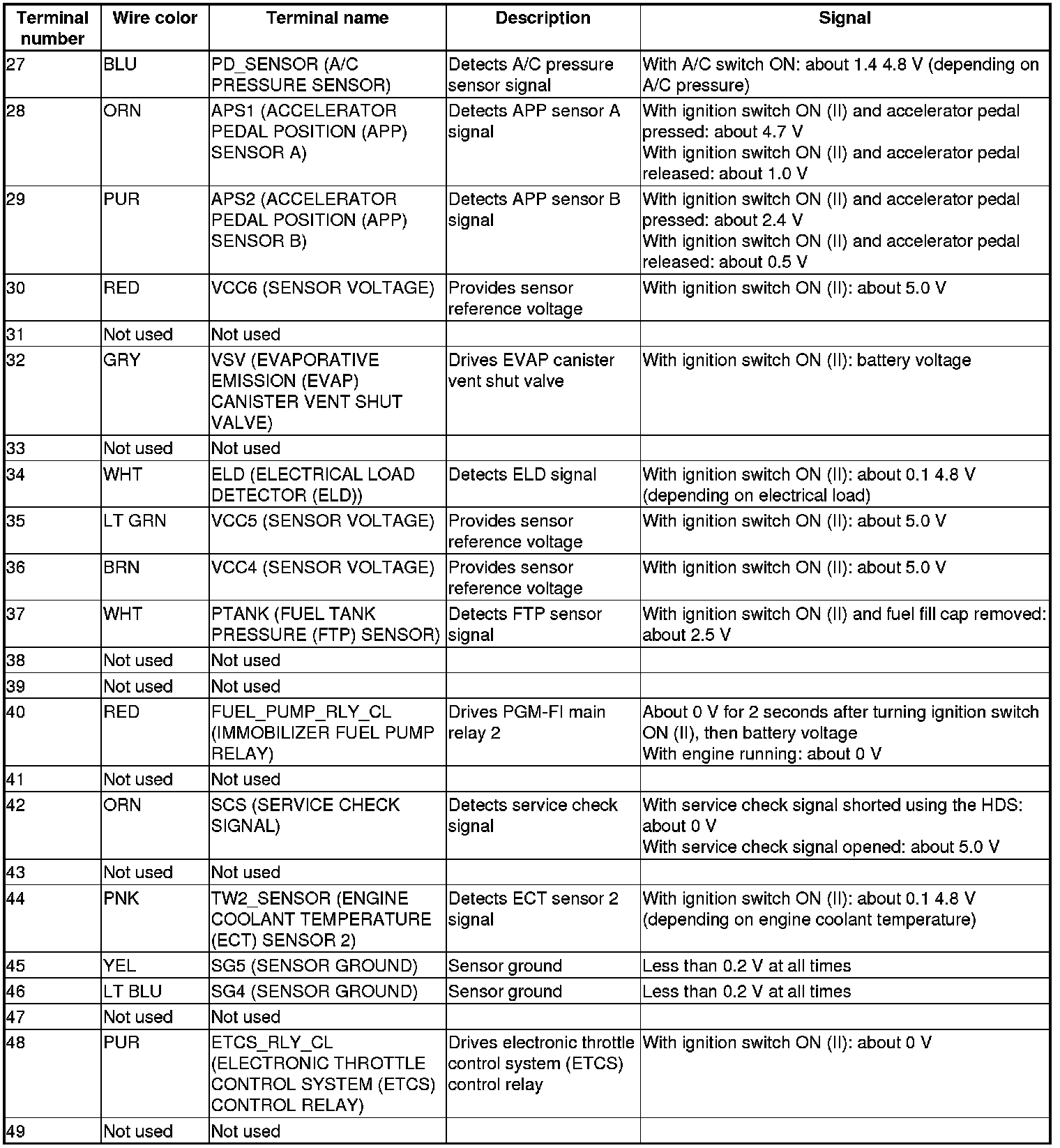

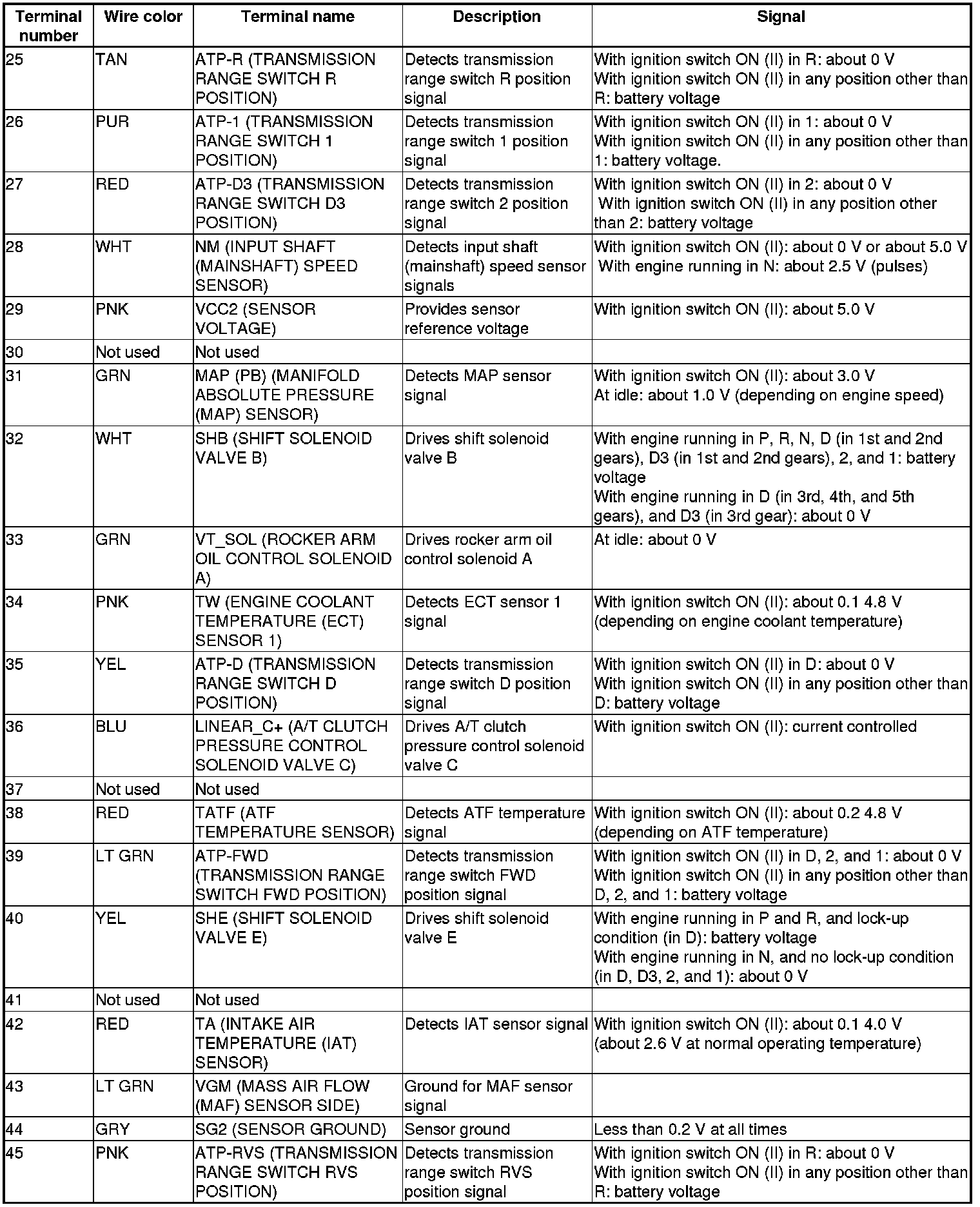

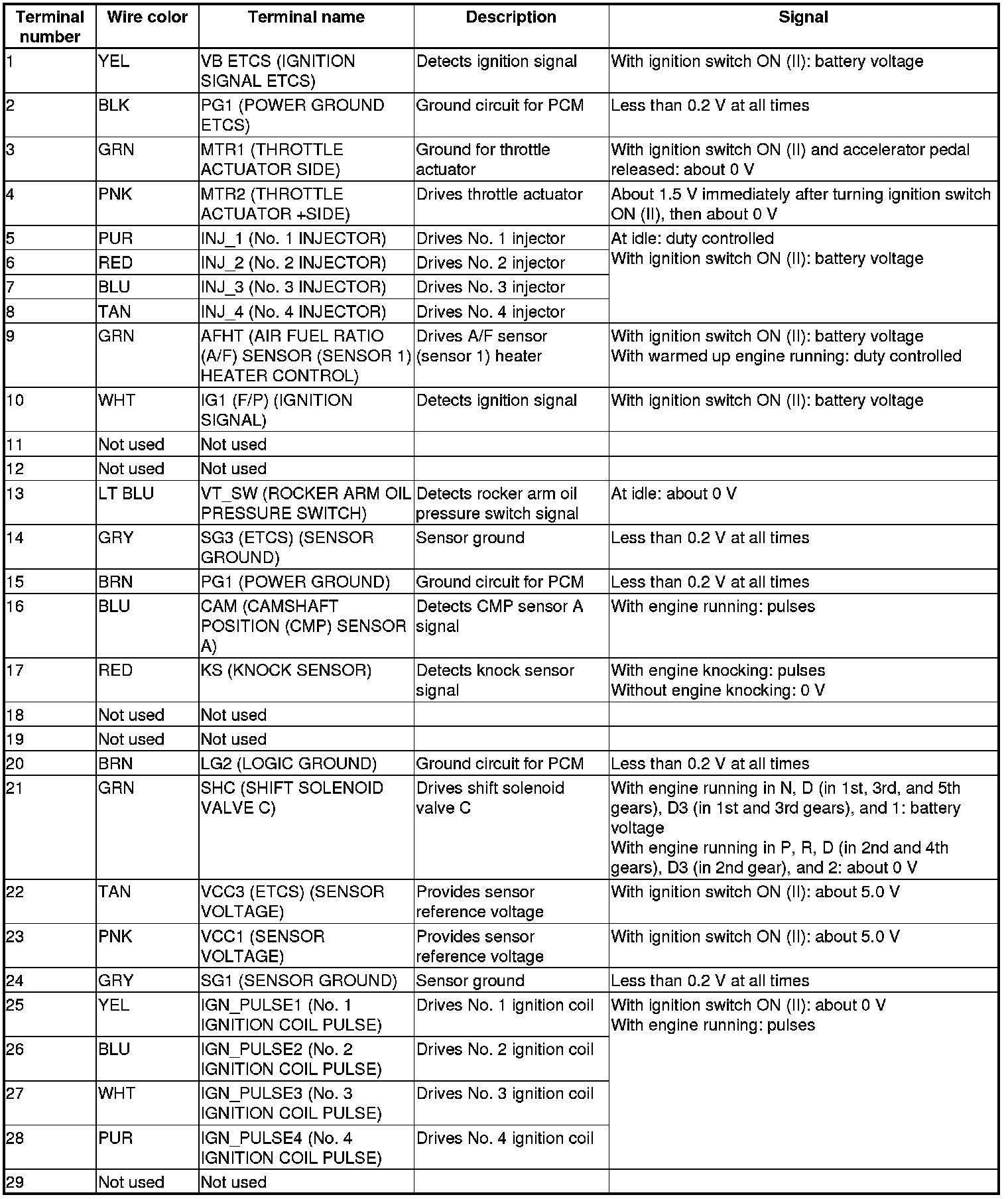

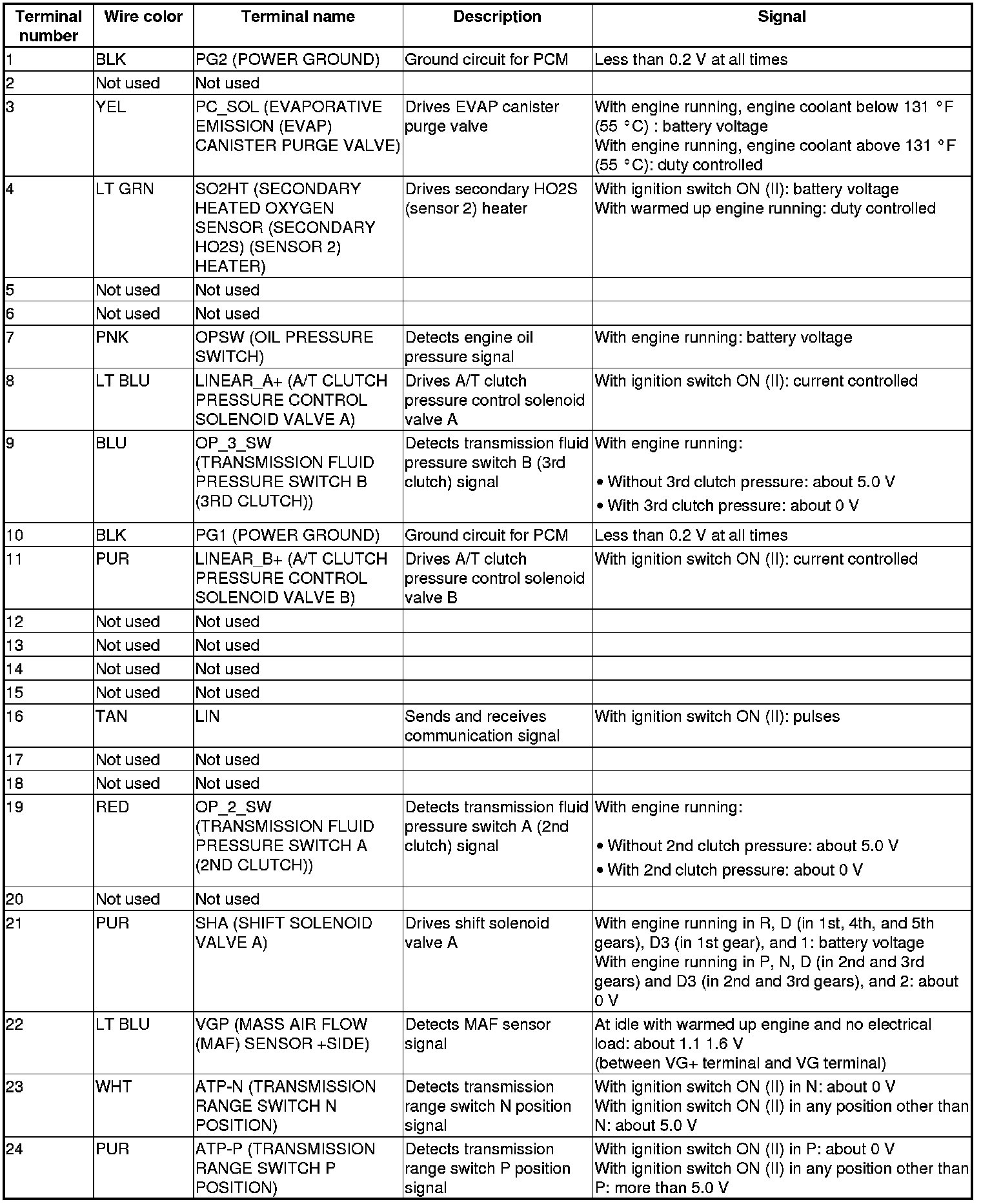

ECM/PCM Connector for Inputs and Outputs
ECM/PCM Connector for Inputs and Outputs
Engine
ECM/PCM Connector for Inputs and Outputs
