Voice Activation System
>>
Voice Activation Module
>>

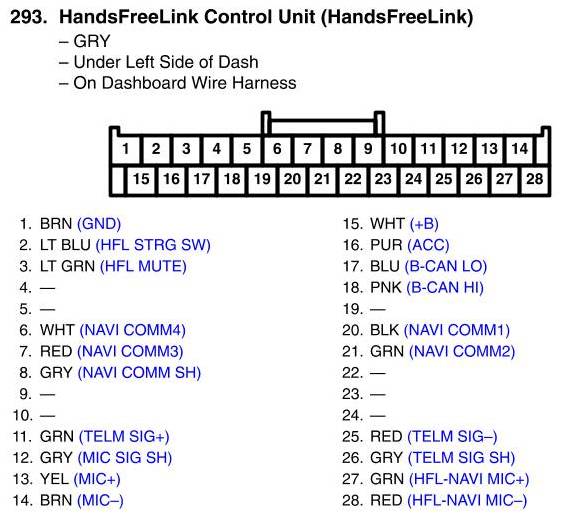

HandsFreeLink Control Unit Connector View
HandsFreeLink Control Unit Connector View
