Home >> Honda >> 2011 >> Fit L4-1.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> ECM/PCM Inputs And Outputs At Connector B

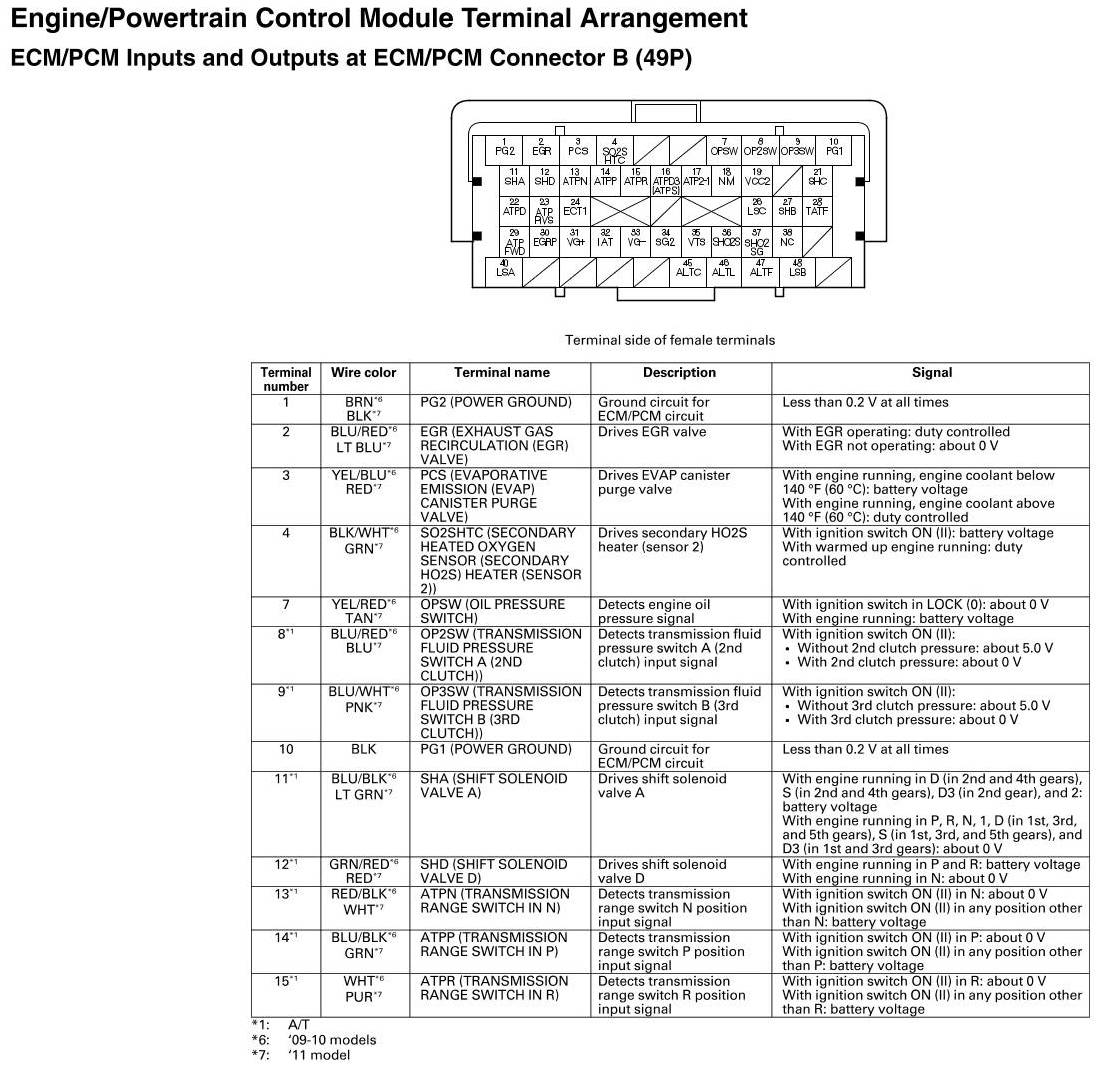

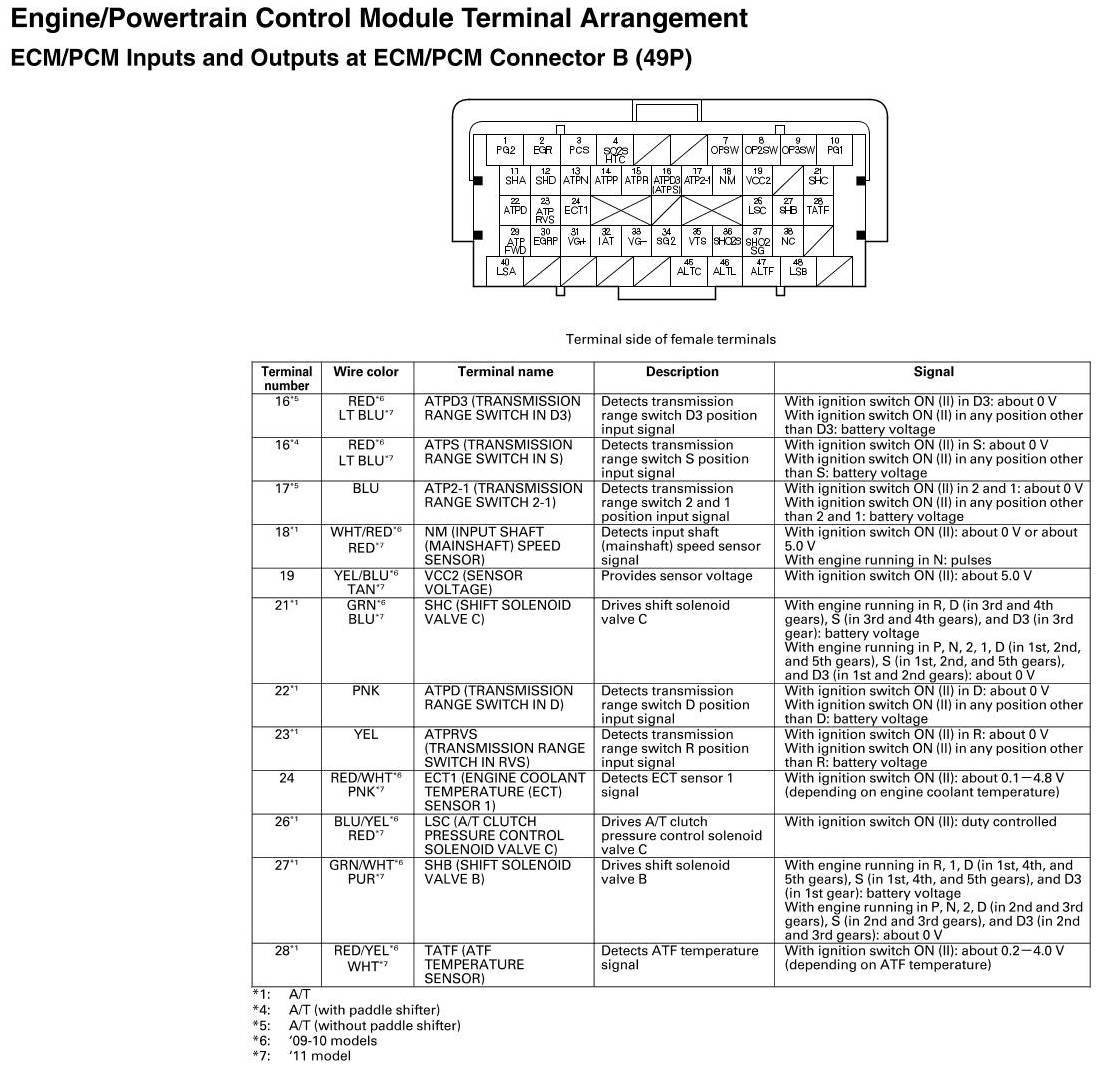

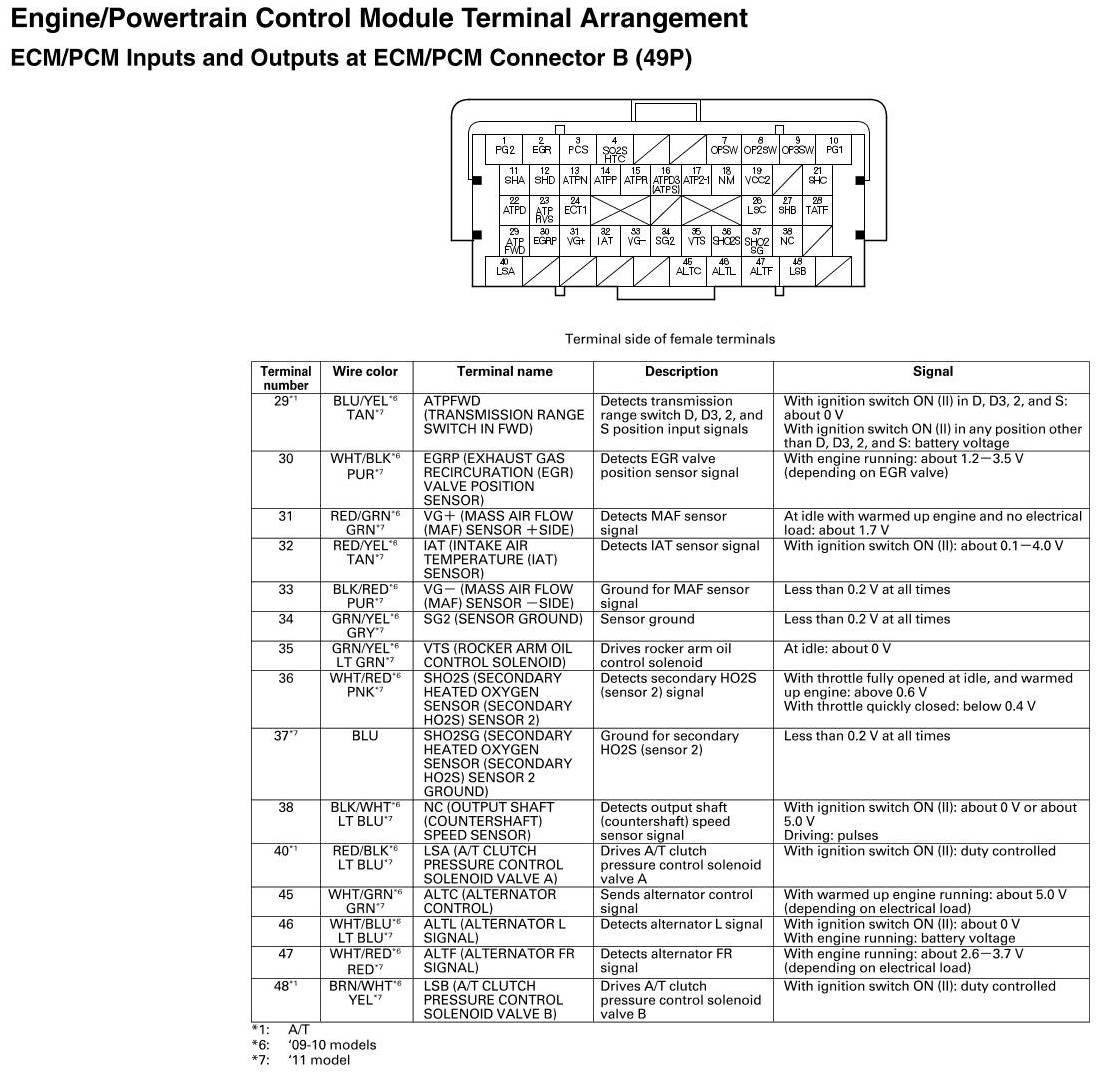

ECM/PCM Inputs And Outputs At Connector B
