Maintenance Minder Code Definitions

Maintenance Minder

All the maintenance items displayed in the odometer/trip meter or the multi-information display are in code.

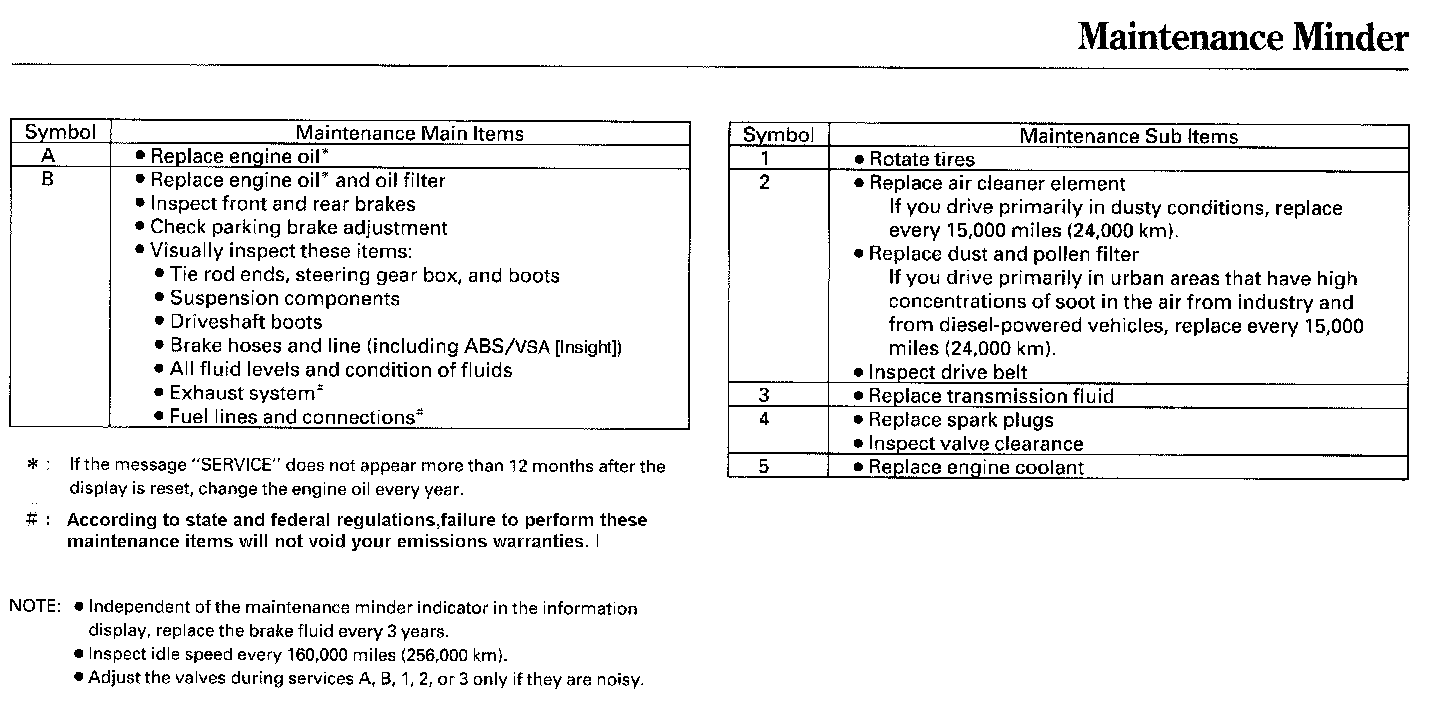

For explanation of codes and maintenance to be performed see the image above.
