Intake Manifold

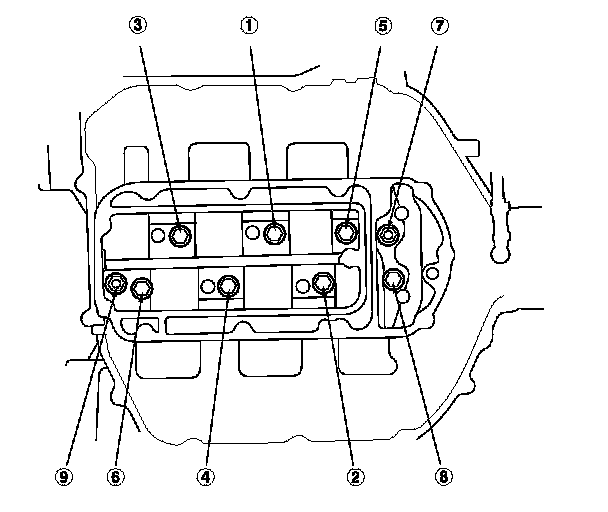

Intake Manifold Torque and Sequence

Intake manifold. Tighten the bolts and nuts sequentially in three steps. Always use a new intake manifold gasket.

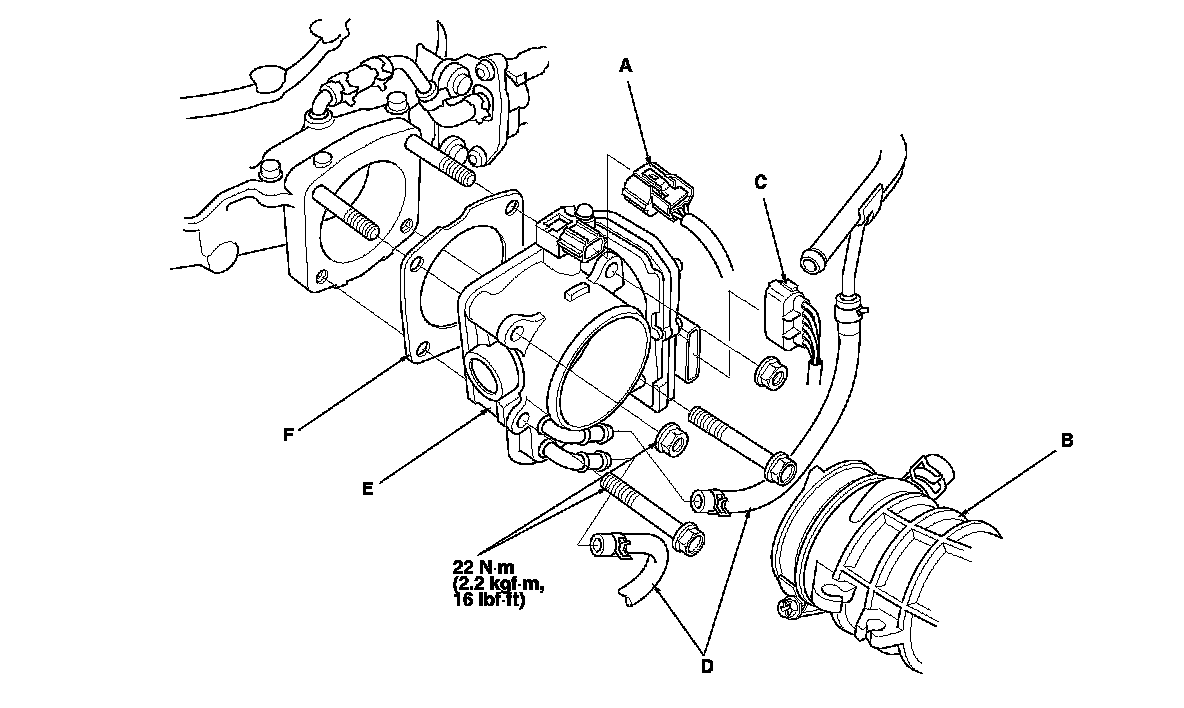

Throttle Body
