System Specifications

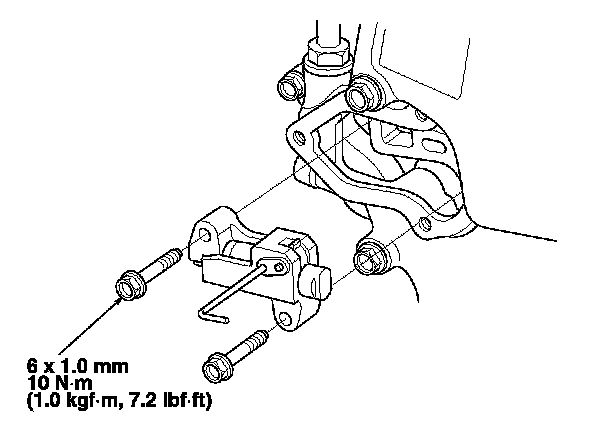

Timing Belt/Chain Tensioner Torque

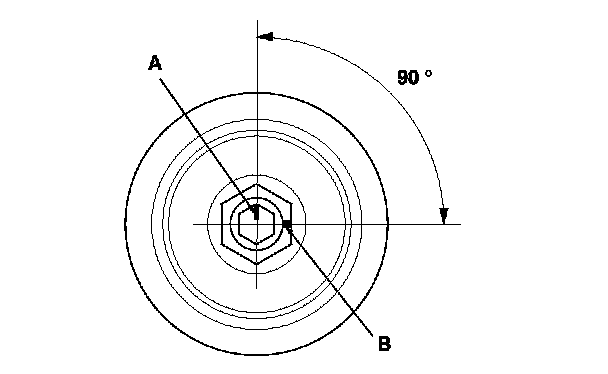

Crankshaft Pulley Torque

Tighten the bolt to 69 N-m (7.0 kgf-m, 51 lbf-ft).
If the pulley bolt or crankshaft are new, tighten the bolt to 177 N-m (18.0 kgf-m, 130 lbf-ft), then remove the bolt and tighten it to 69 N-m (7.0 kgf-m, 51 lbf-ft).
Then tighten the bolt an additional 90 °.






Timing Cover Torque
