System Specifications

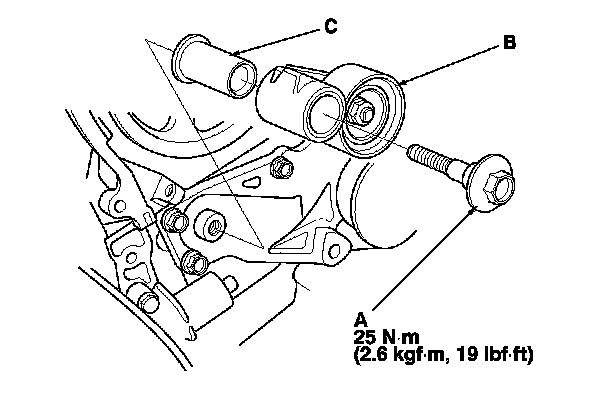

Timing Belt Adjuster Torque

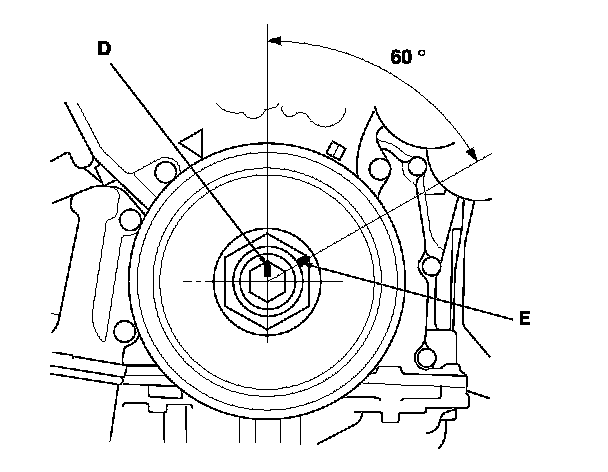

Crankshaft Pulley Torque
Crankshaft pulley, tighten the bolt to 64 N-m (6.5 kgf-m, 47 lbf-ft).
Then tighten the bolt an additional 60 °.

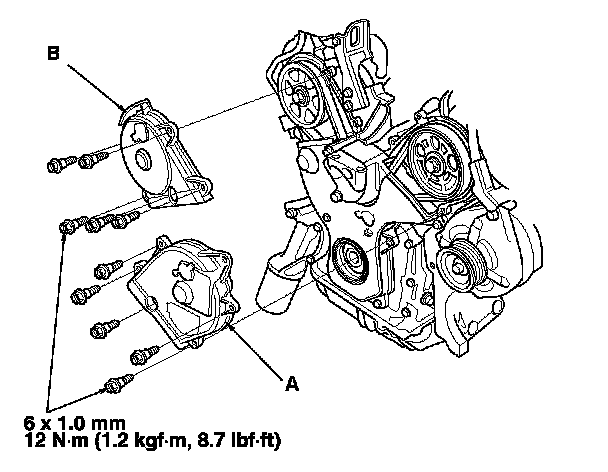

Timing Cover Torque
