Navigation Module
>>

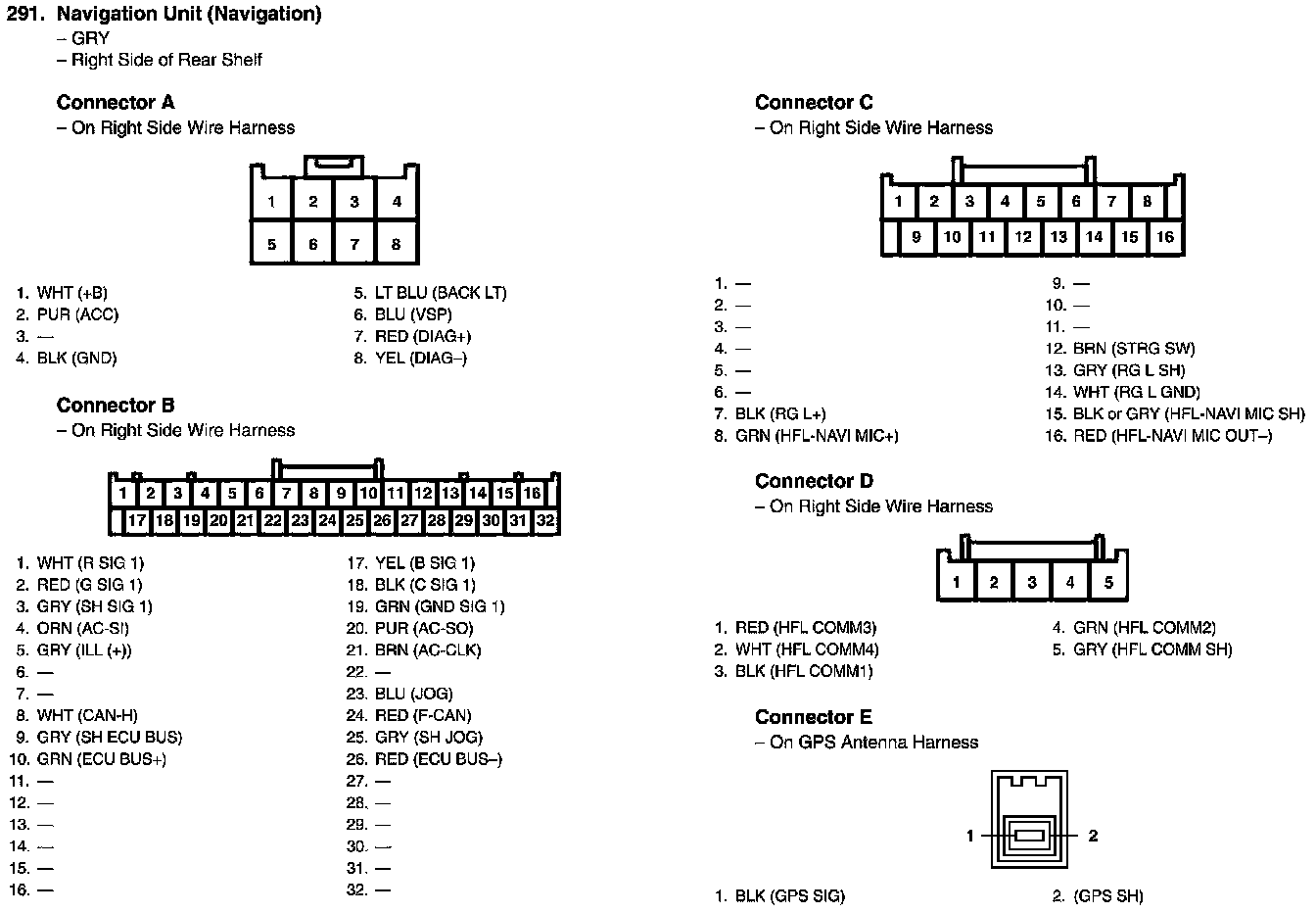

Navigation Unit Connector View (Navigation)
Navigation Unit Connector View (Navigation)
