Home >> Honda >> 2008 >> Ridgeline V6-3.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Locations

Engine Control Module: Locations

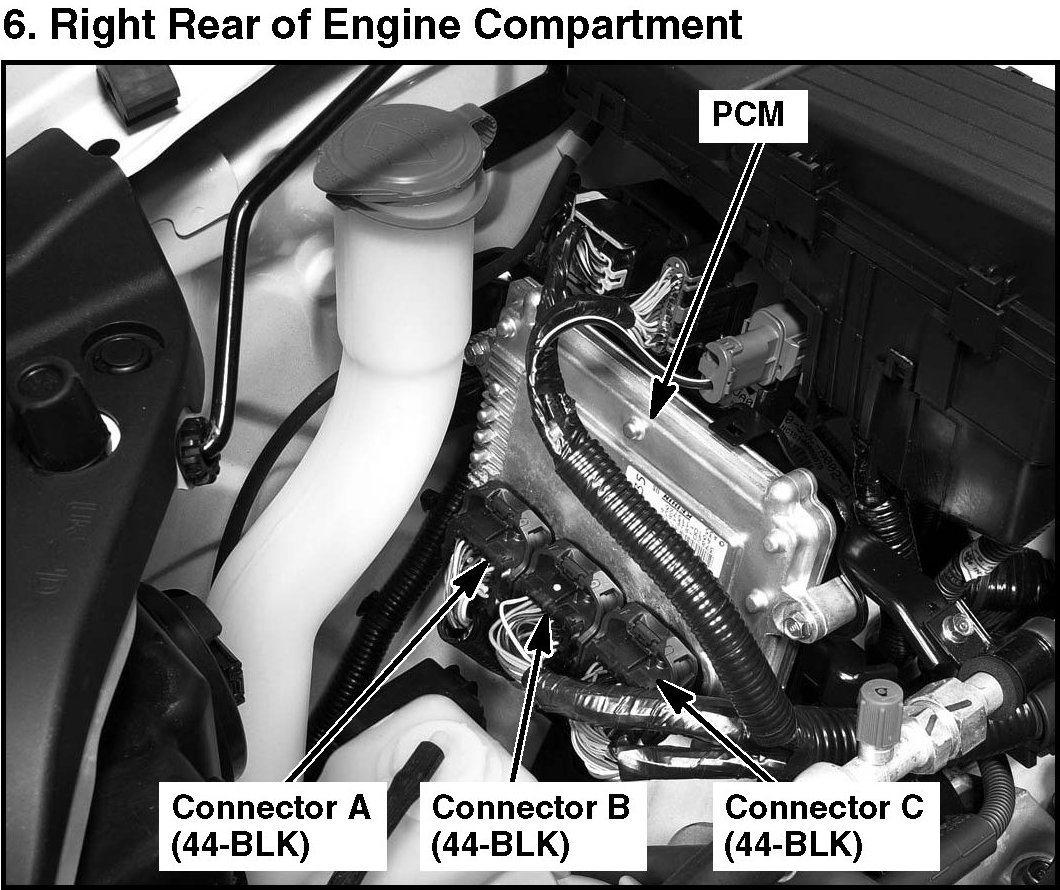

6. Right Rear Of Engine Compartment:

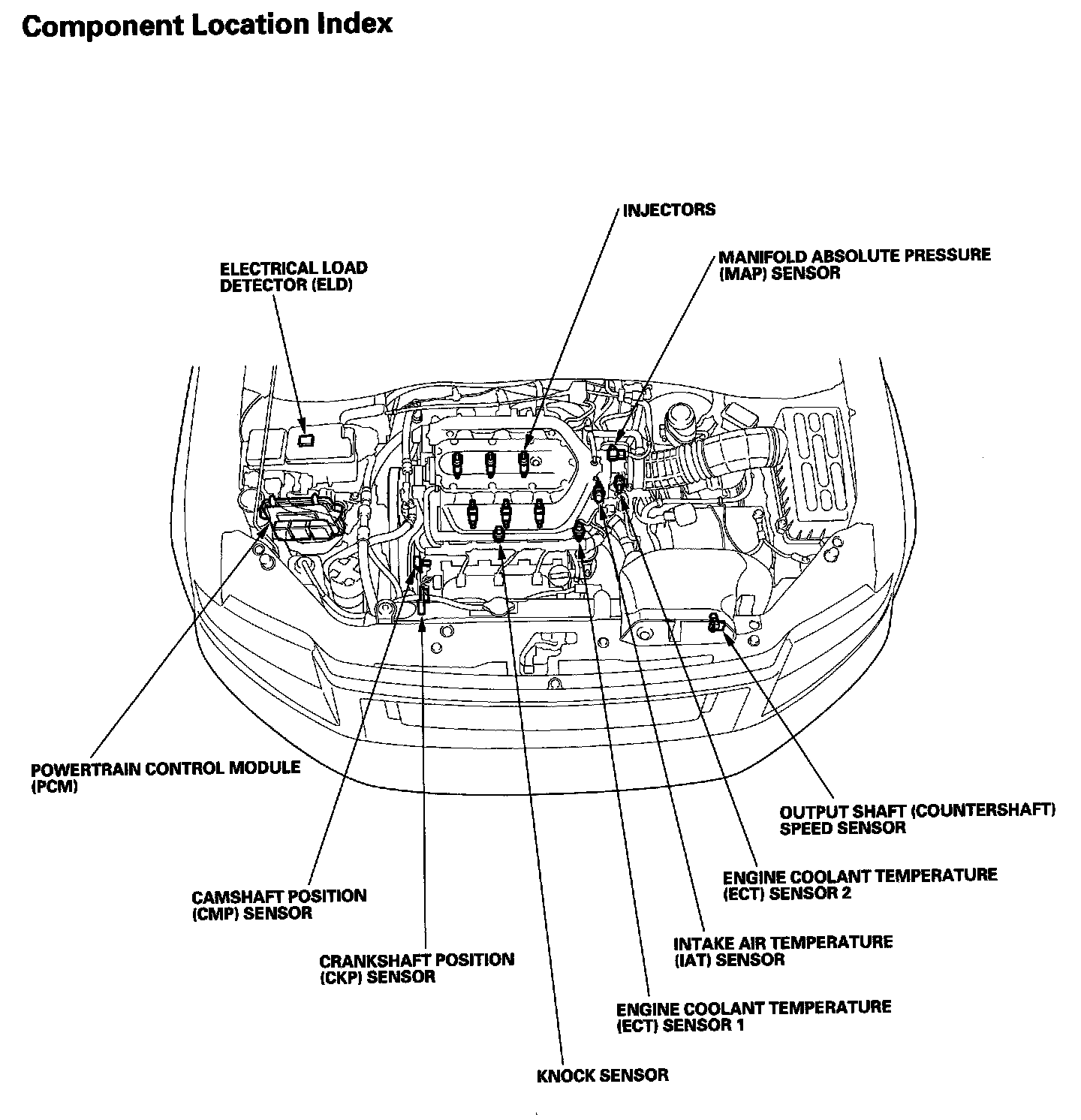

PGM-FI System Component Location Index:

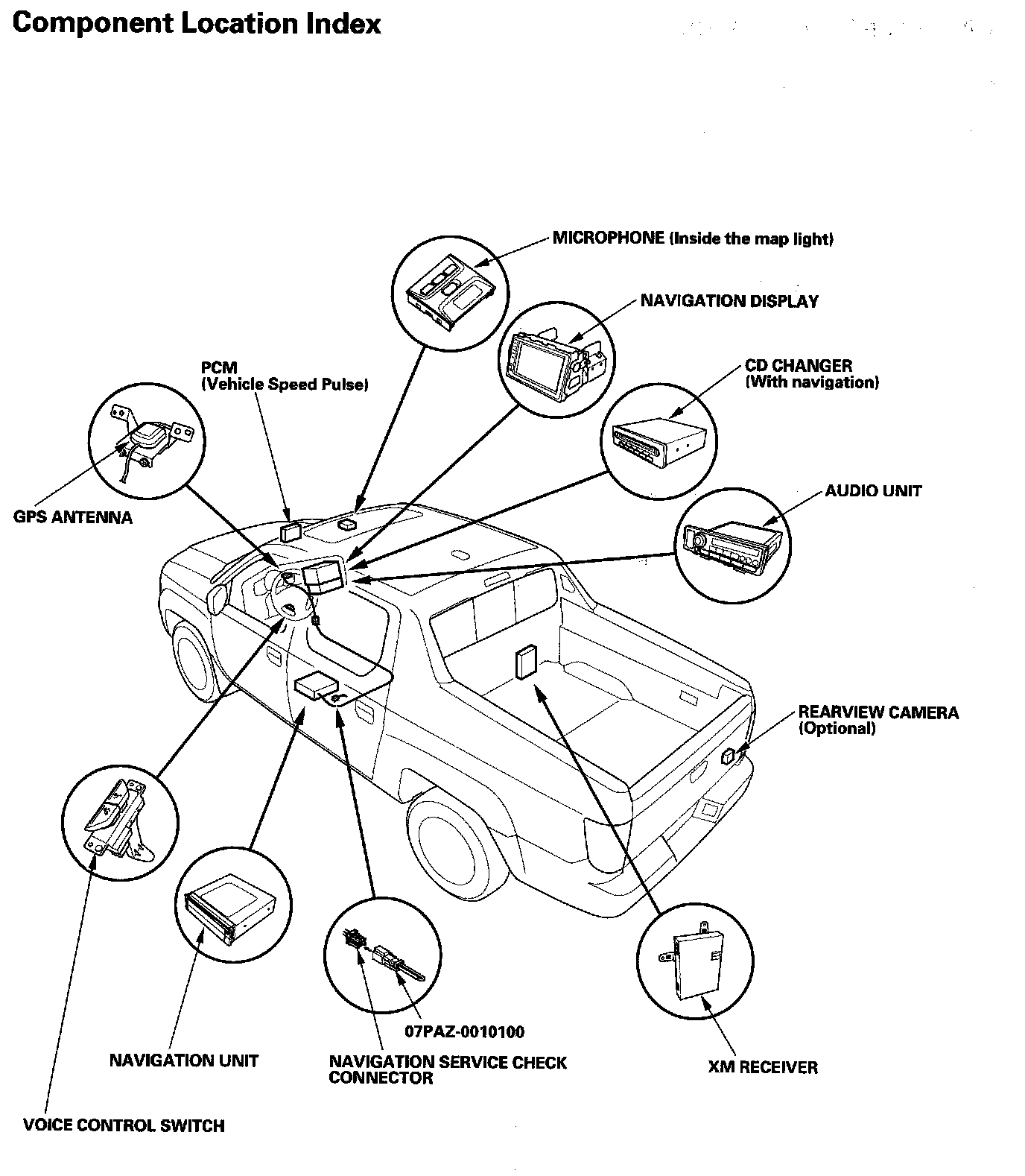

Navigation System Component Location Index:

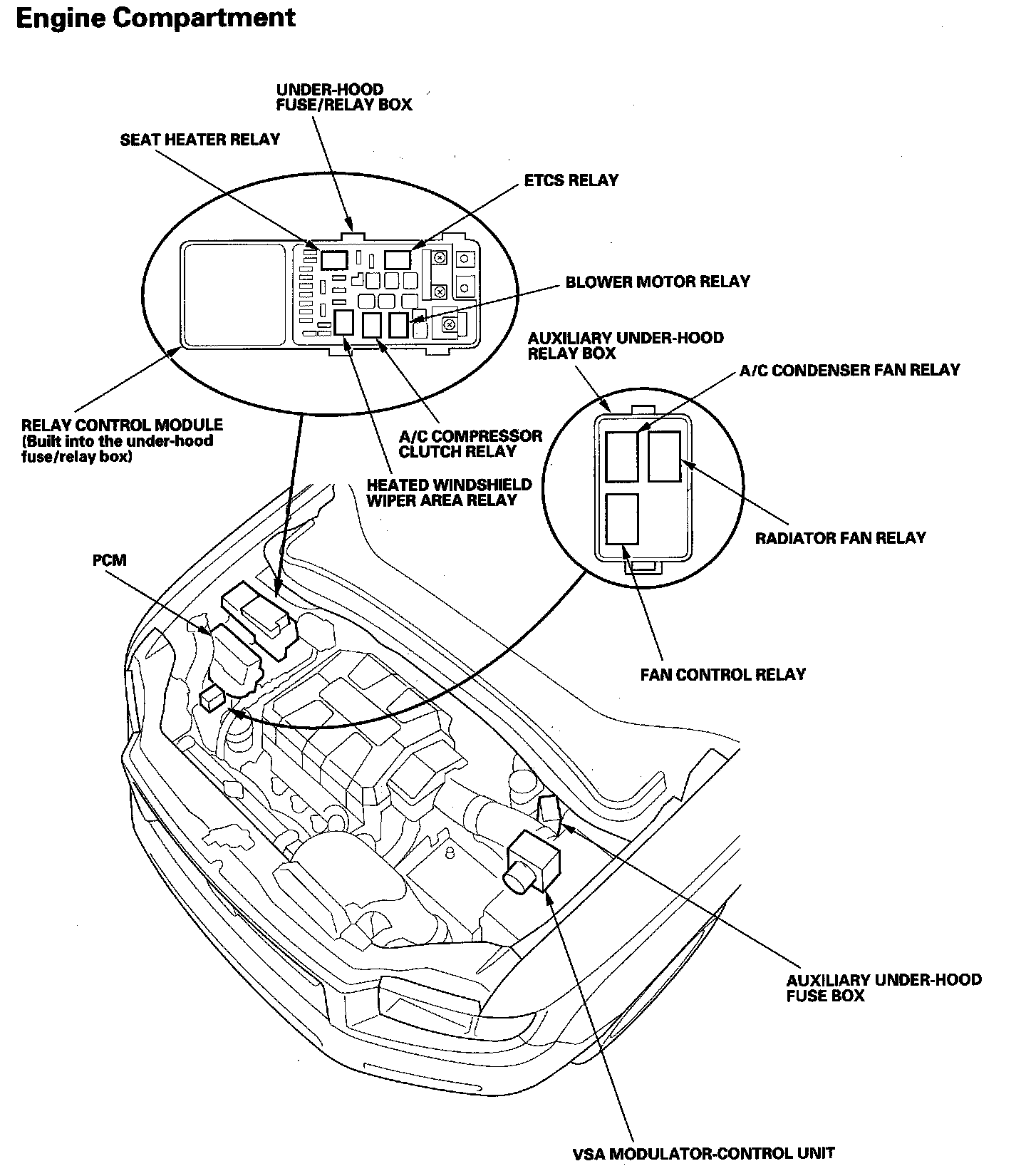

Relay And Control Unit Locations Engine Compartment:

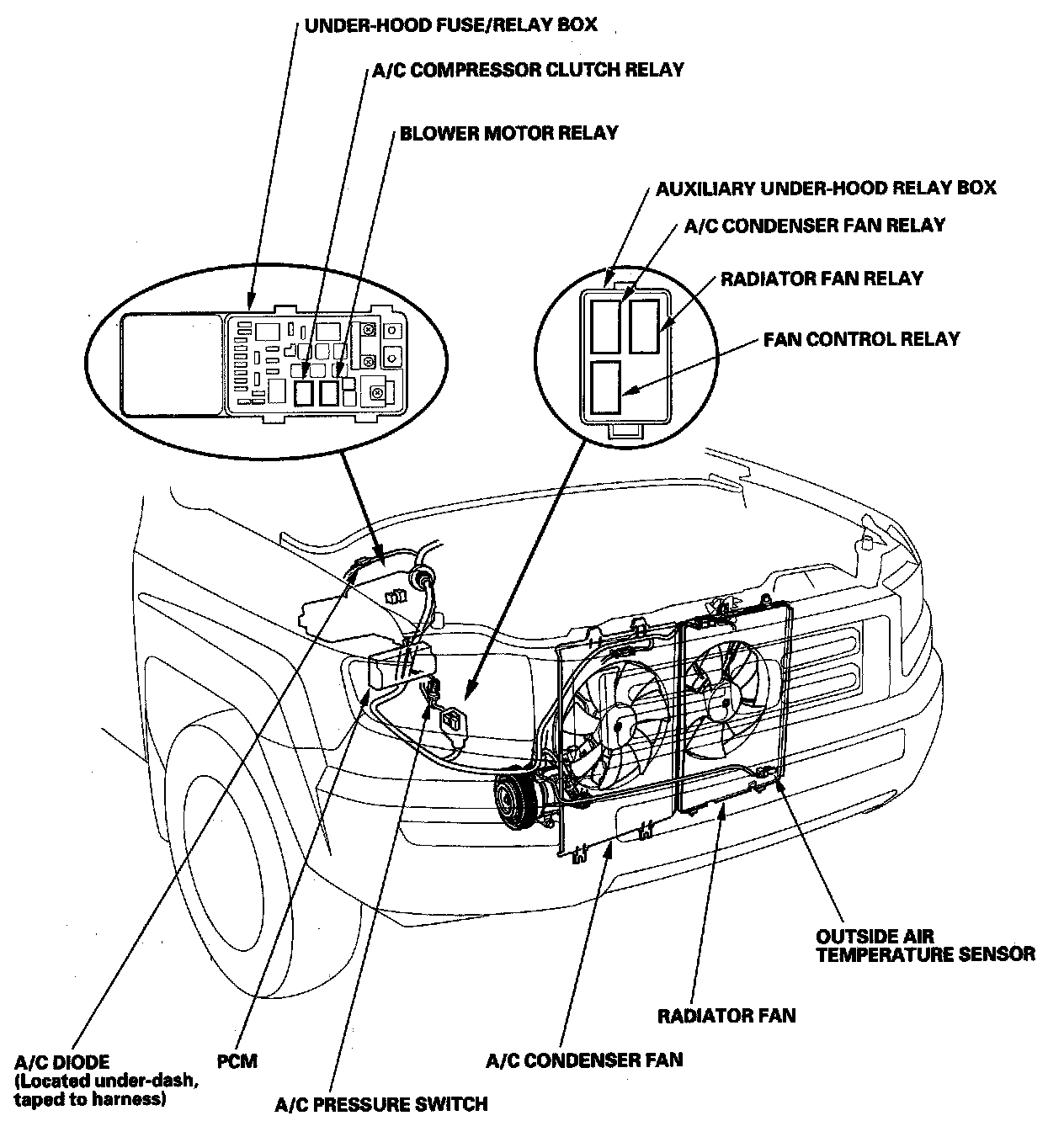

Climate Control Component Location Index:
