Navigation Display

256. Navigation Display Unit (RTL, EX-L):

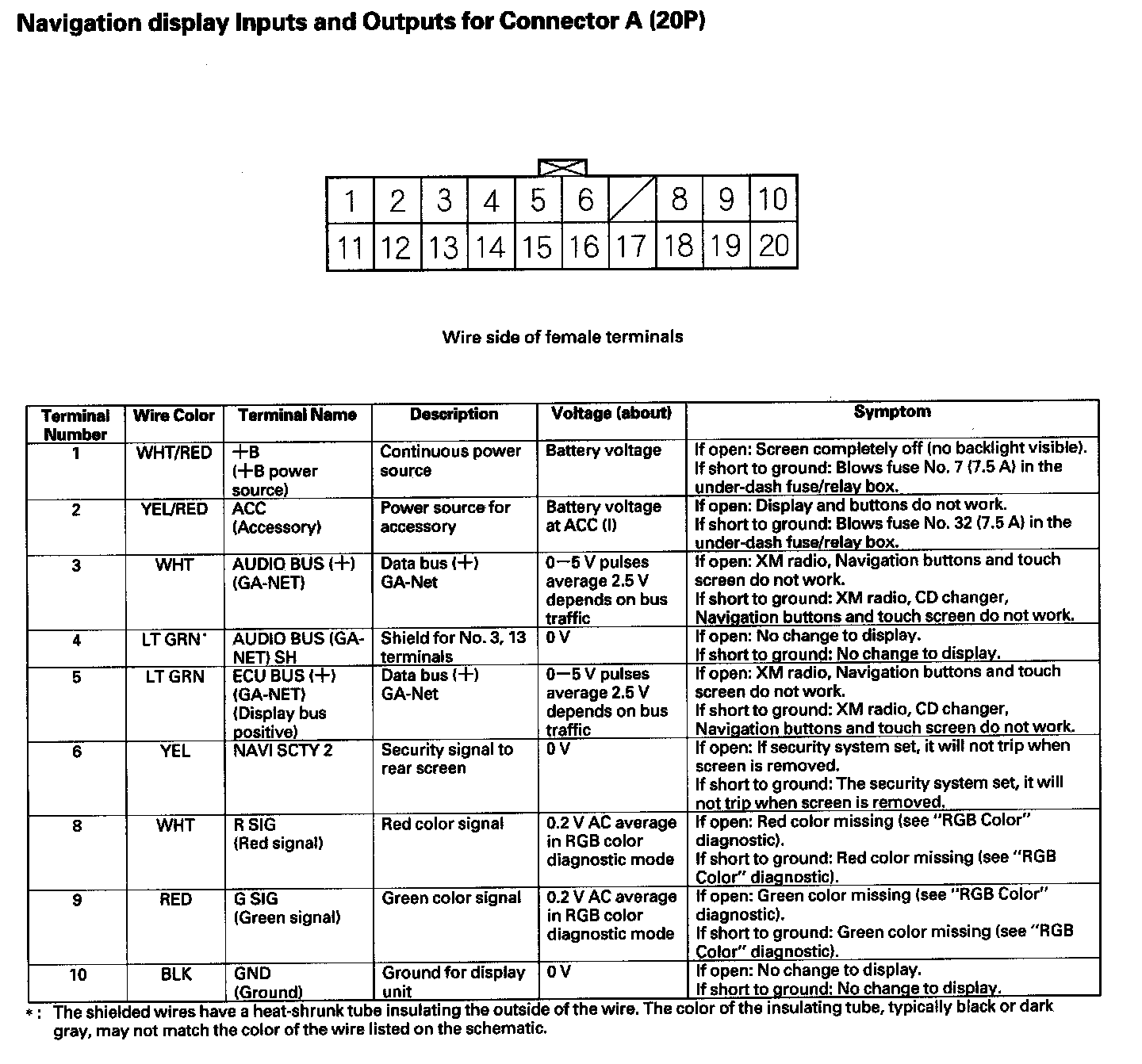

Navigation Display Inputs And Outputs For Connector A (20P) Part 1:

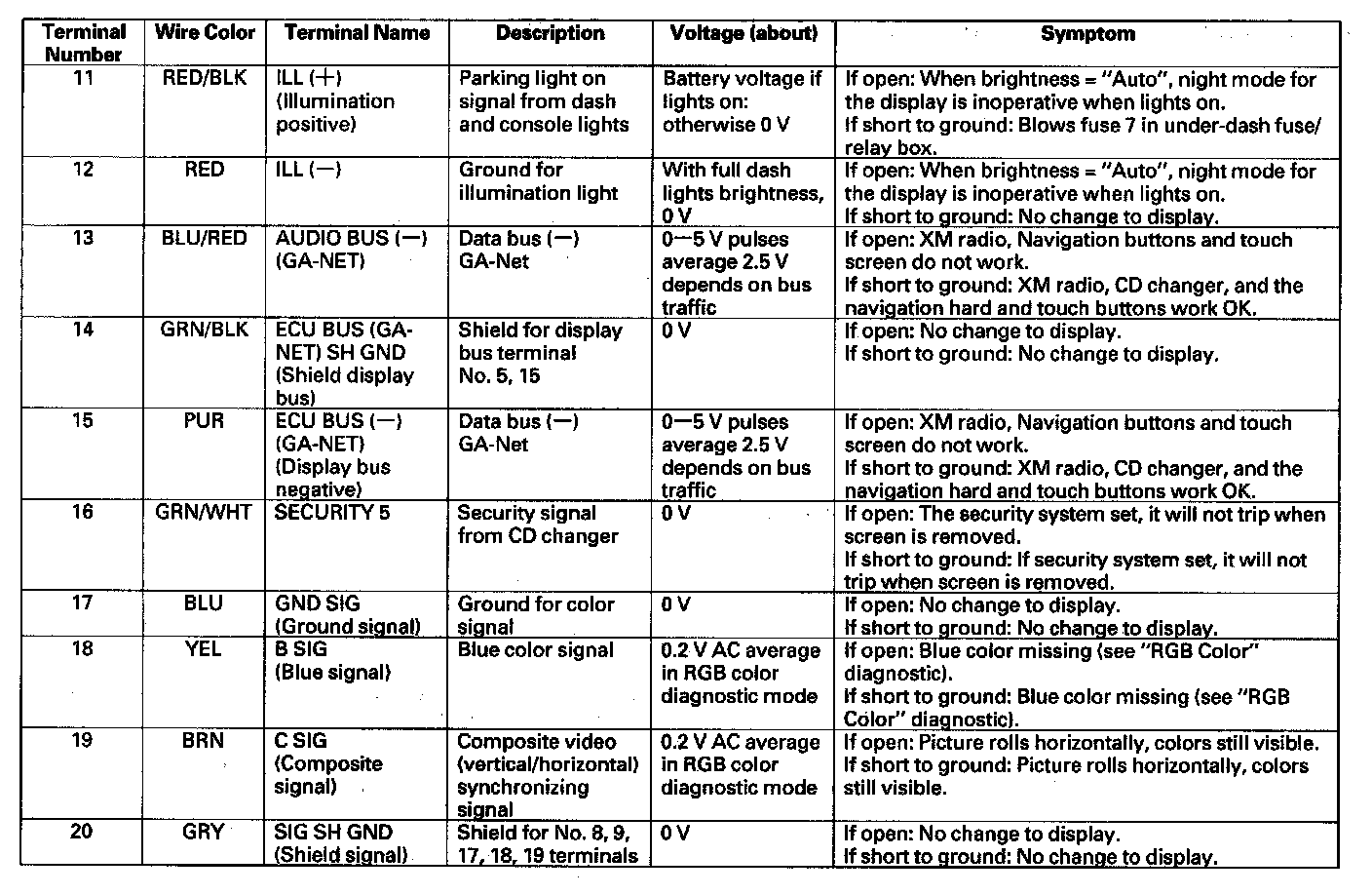

Navigation Display Inputs And Outputs For Connector A (20P) Part 2:

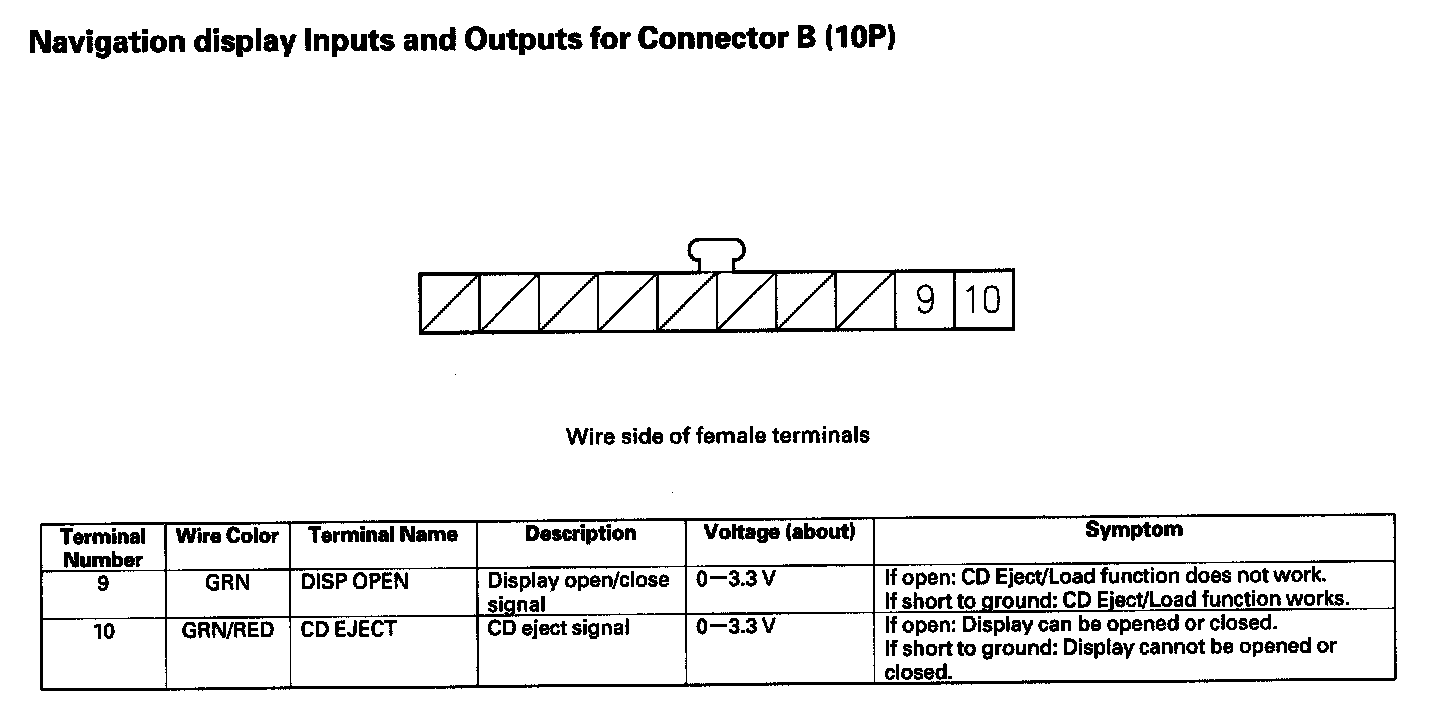

Navigation Display Inputs And Outputs For Connector B (10P):
