Intake Manifold
Intake ManifoldUpper

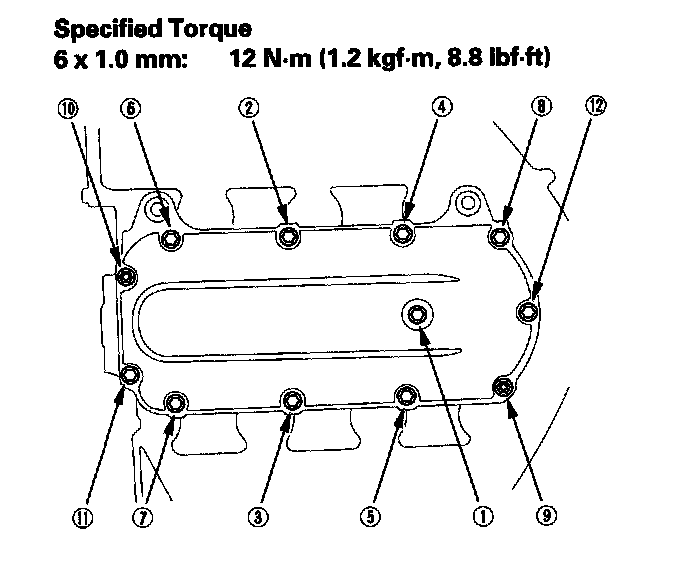

Torque the bolts and nuts sequentially in three steps.
Lower
Torque the bolts and nuts sequentially in three steps.
Throttle Body

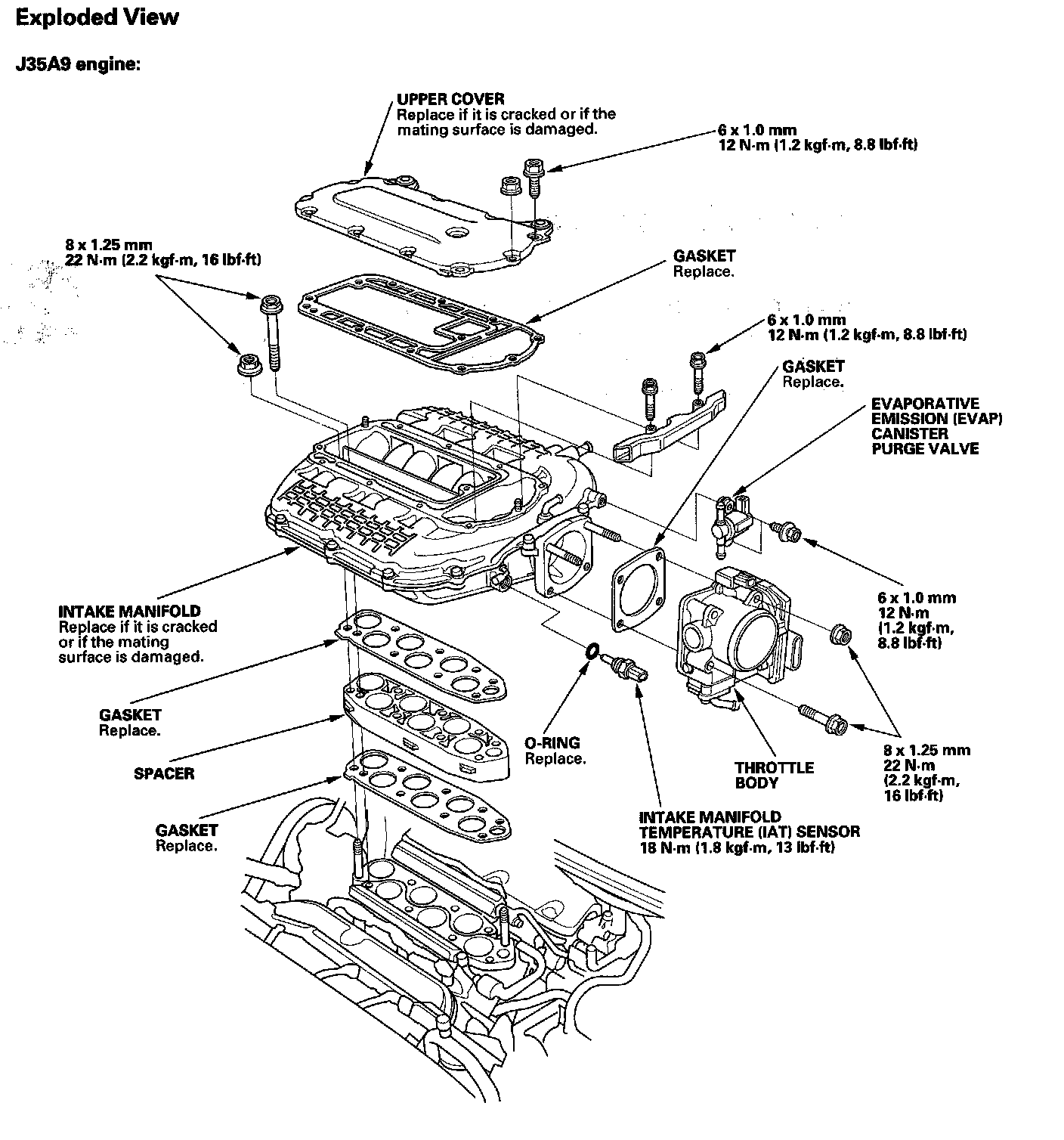

J35A9 Engine
Intake Manifold (Part 1):

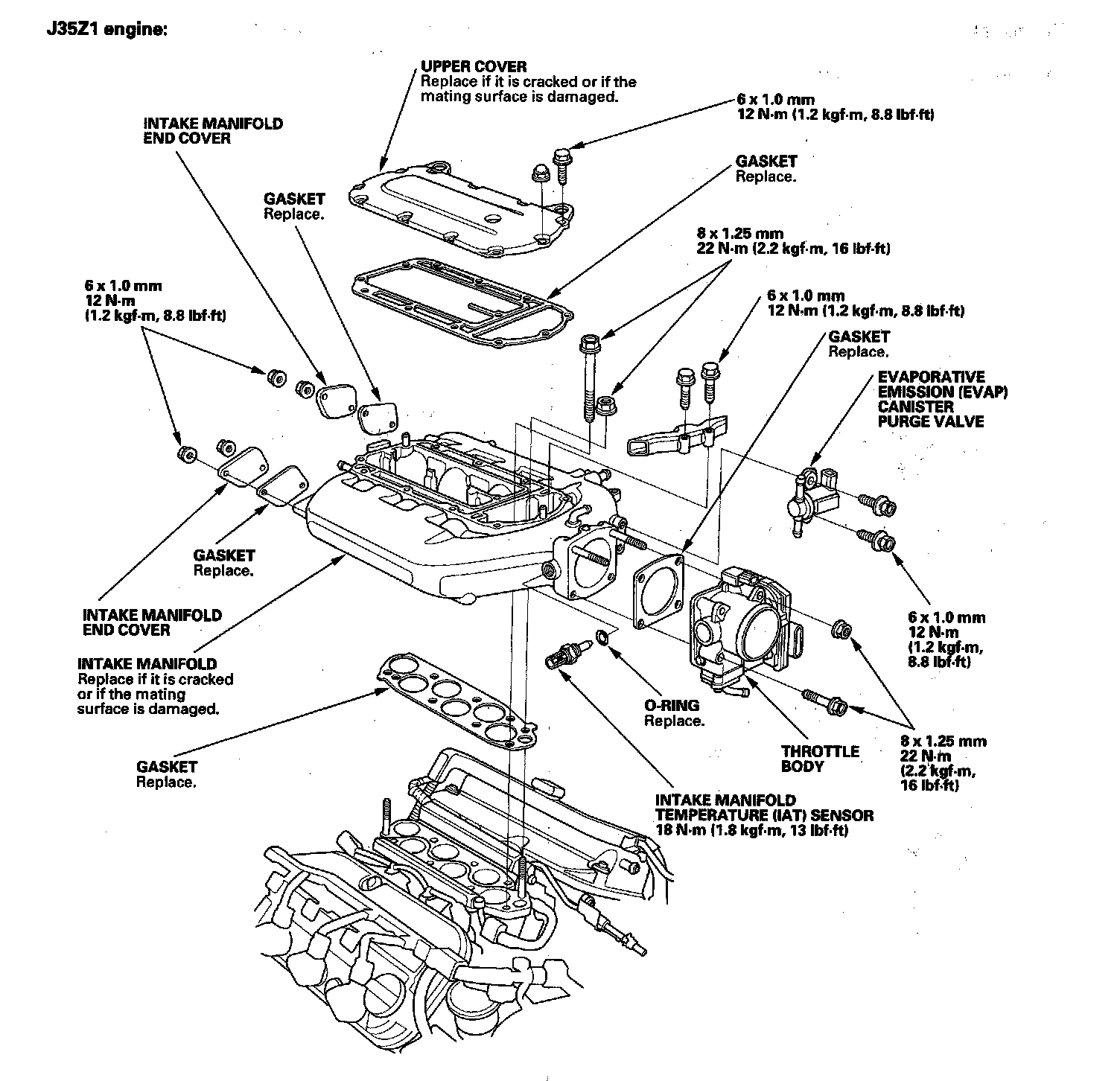

J35Z1 Engine
Intake Manifold (Part 2):
Upper
Torque the bolts and nuts sequentially in three steps.
Lower
Torque the bolts and nuts sequentially in three steps.
Throttle Body
J35A9 Engine
J35Z1 Engine
