Engine Control Module: Locations

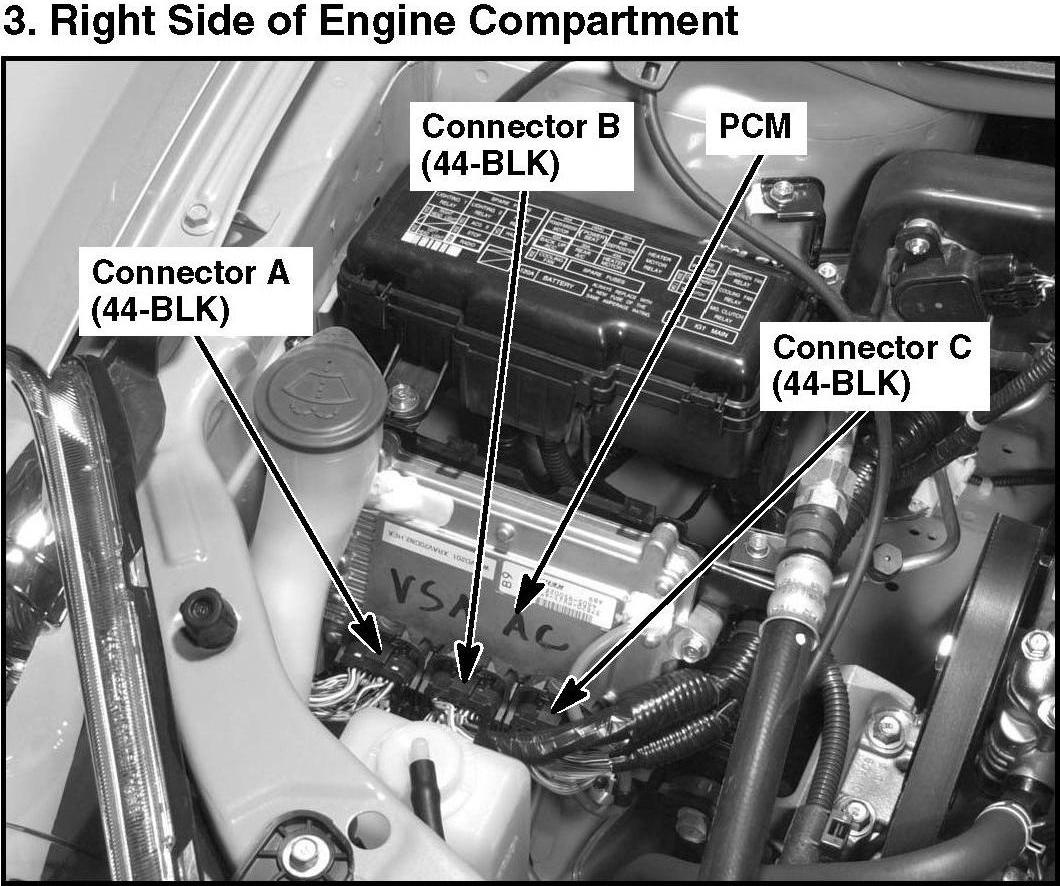

3. Right Side Of Engine Compartment:

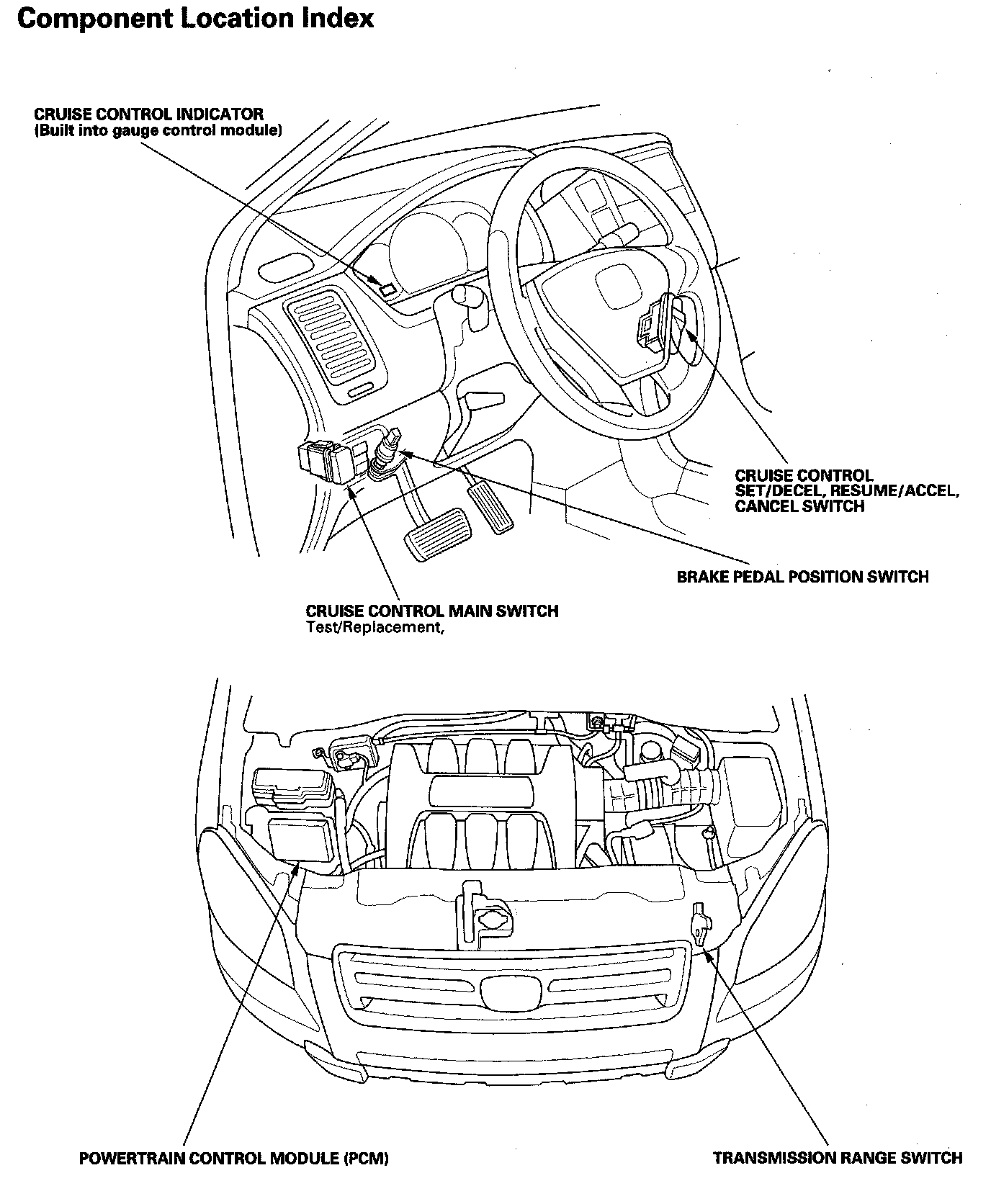

Cruise Control Component Location Index:

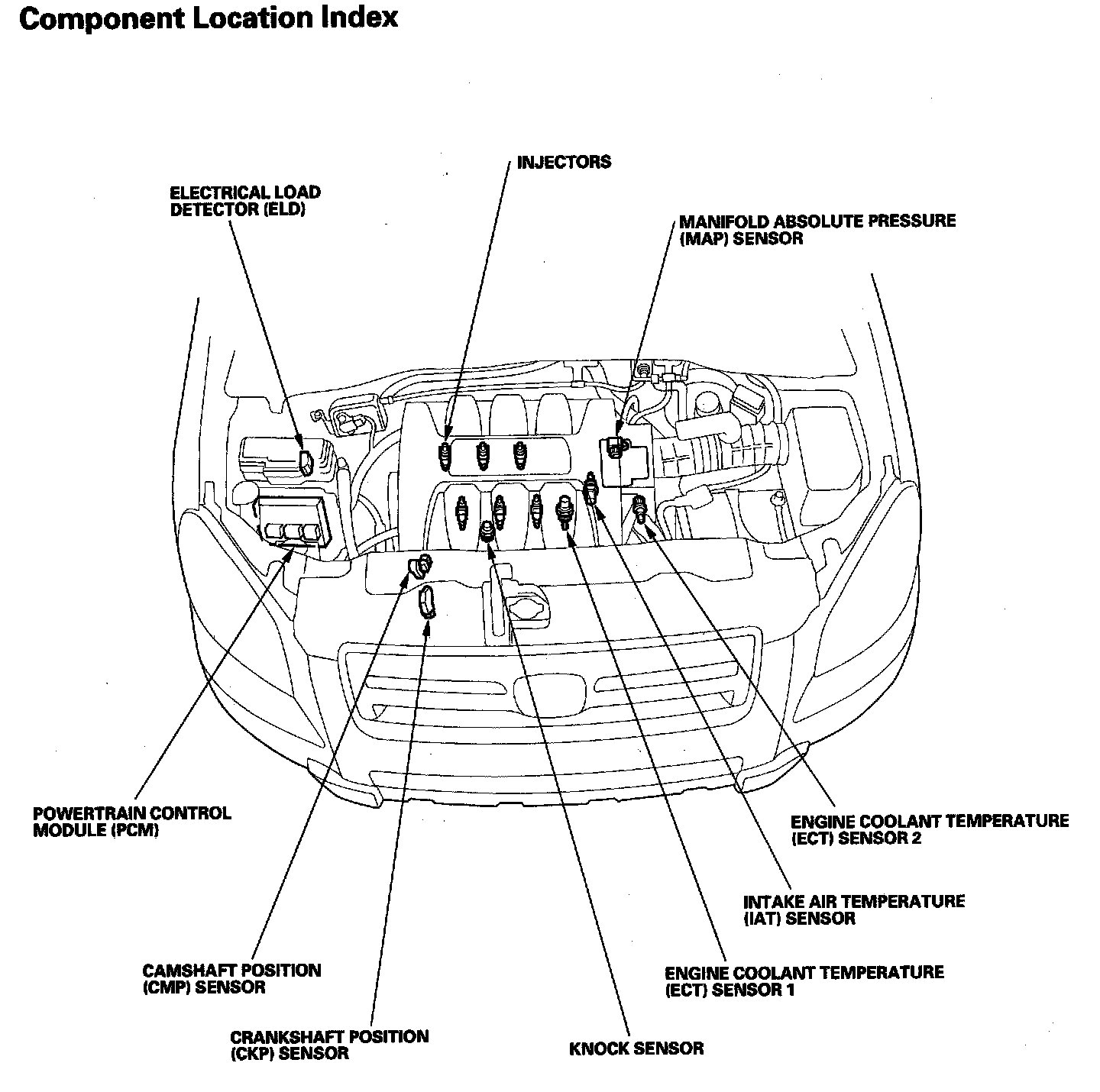

PGM-FI System Component Location Index:

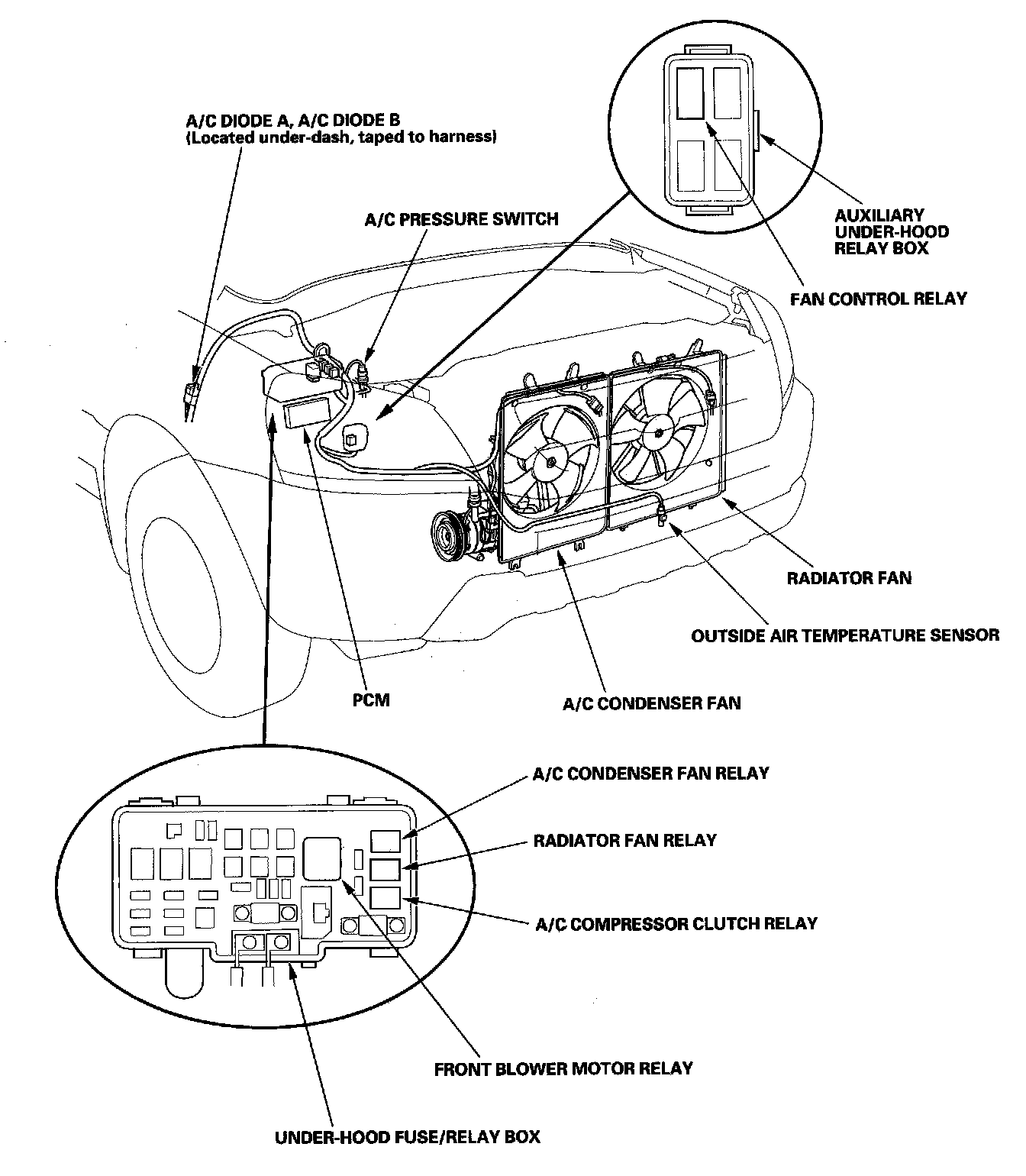

Heating/Air Conditioning Component Location Index:

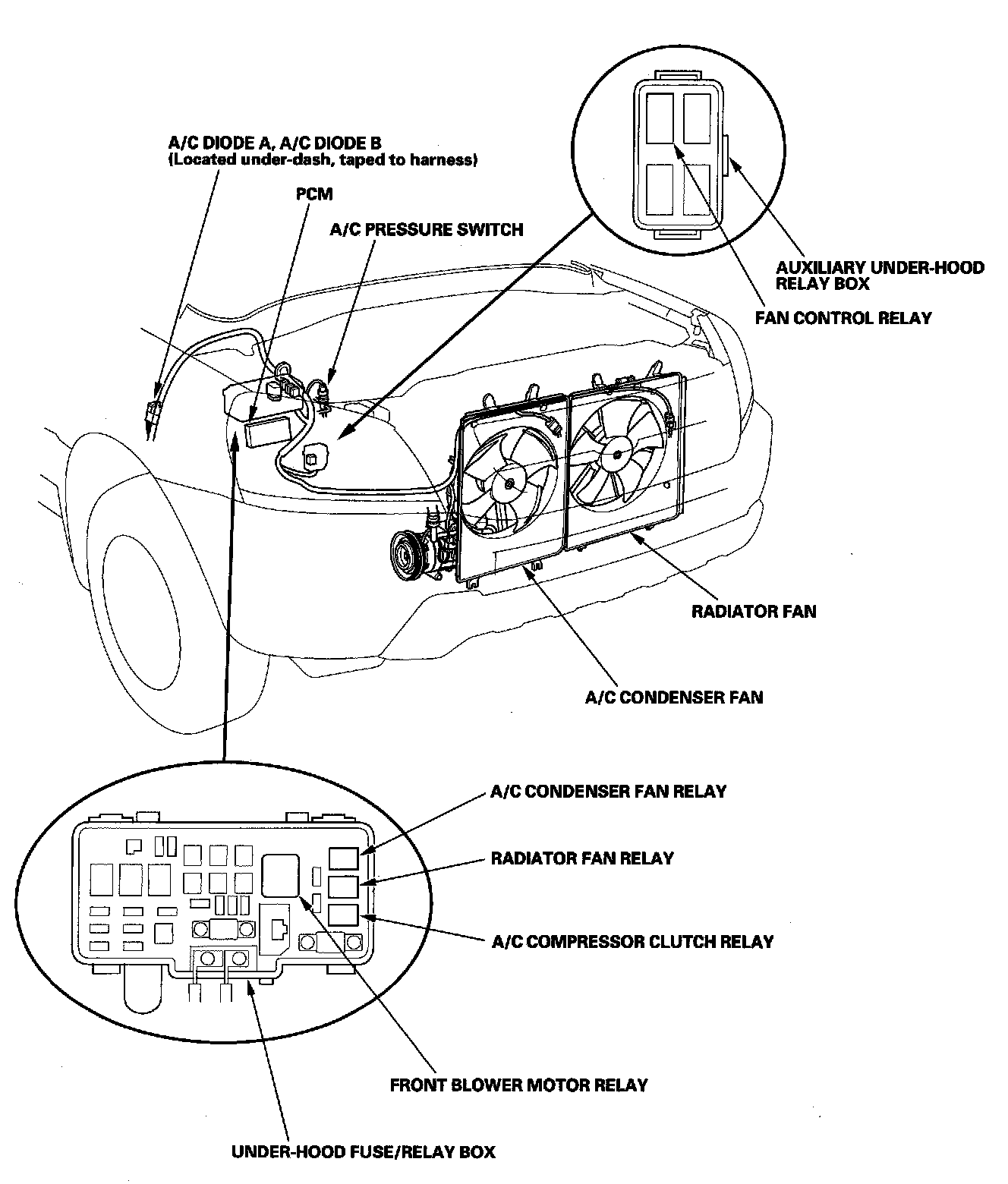

Climate Control Component Location Index:

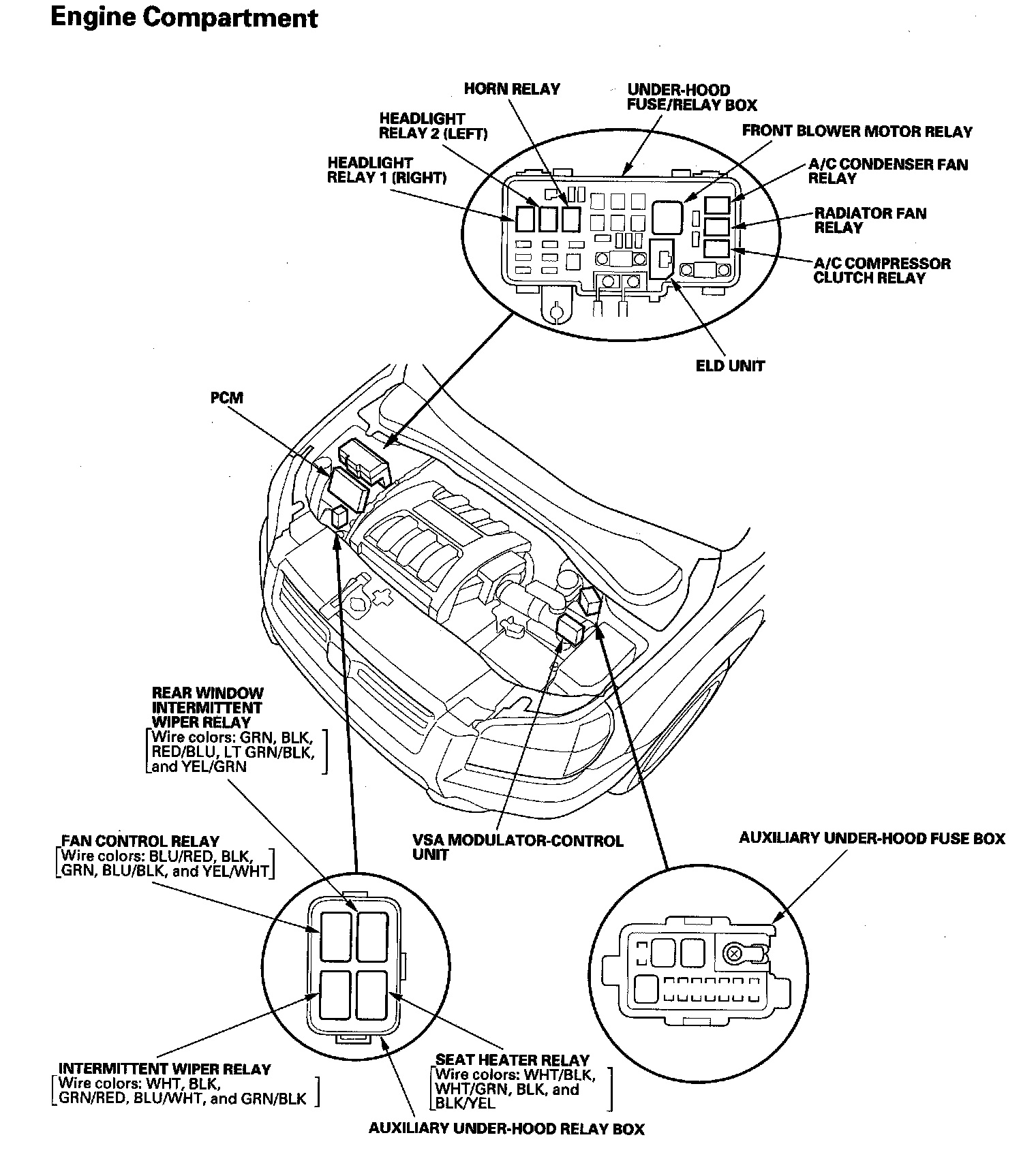

Relay And Control Unit Locations Engine Compartment:



Immobilizer System Component Location Index:

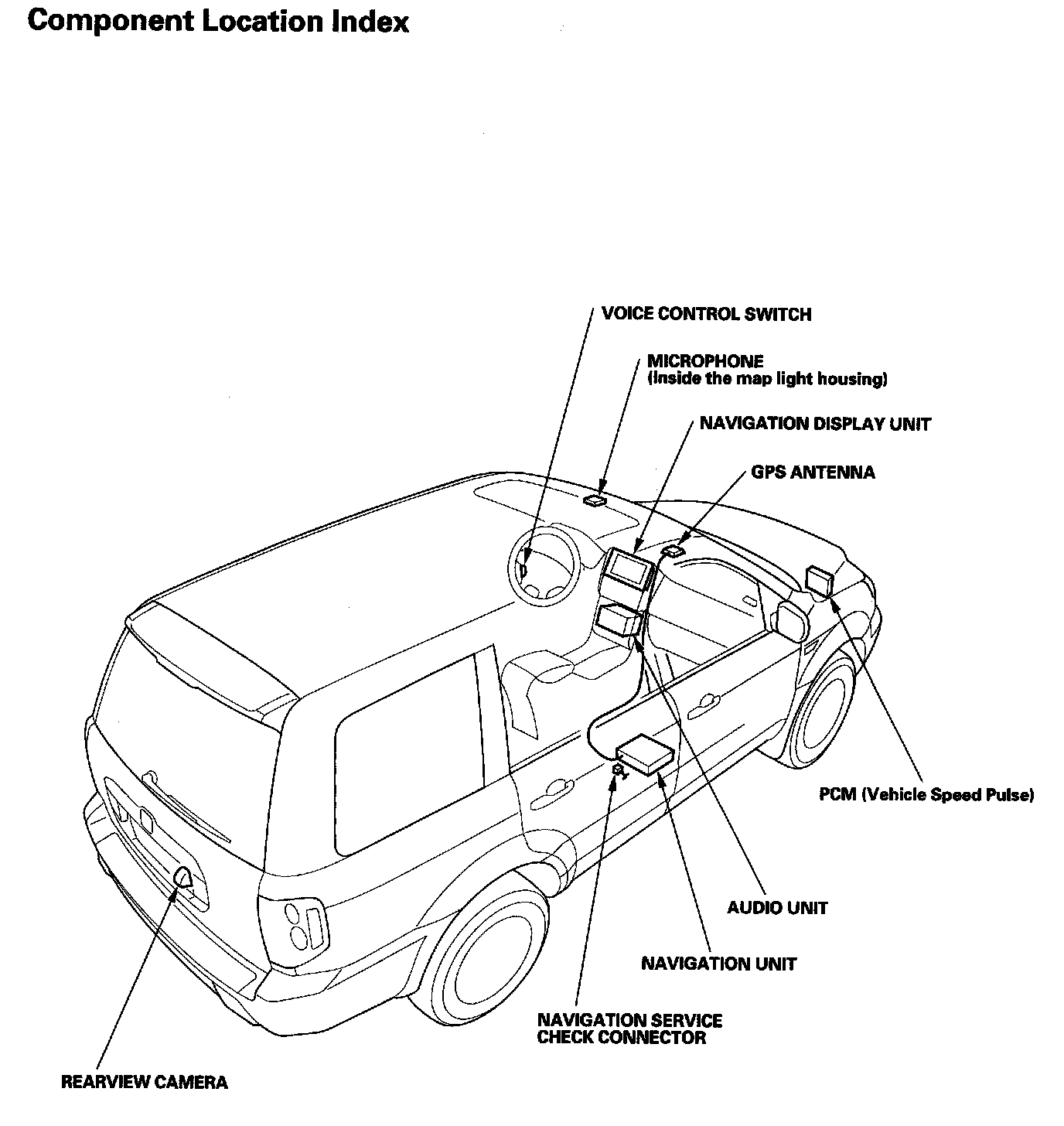

Navigation System Component Location Index:
