Entertainment System Control Panel
Entertainment System Control Panel

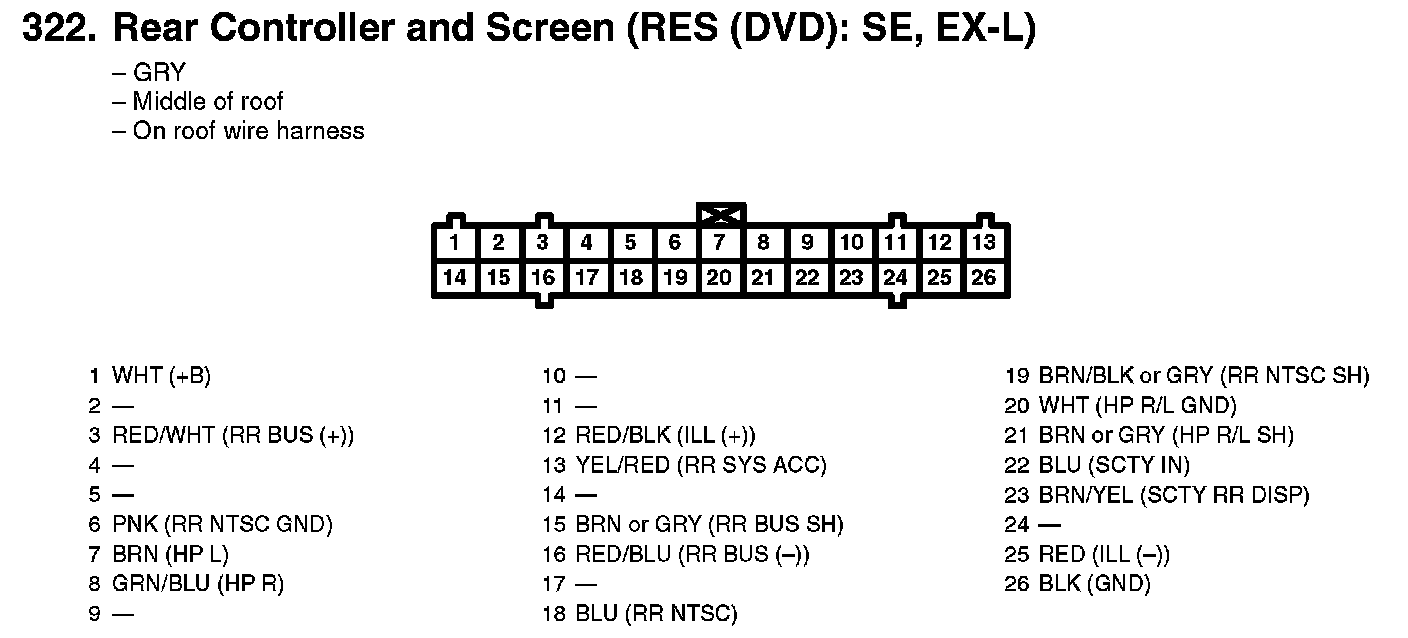

322. Rear Controller And Screen (RES (DVD): SE, EX-L):
