System Specifications

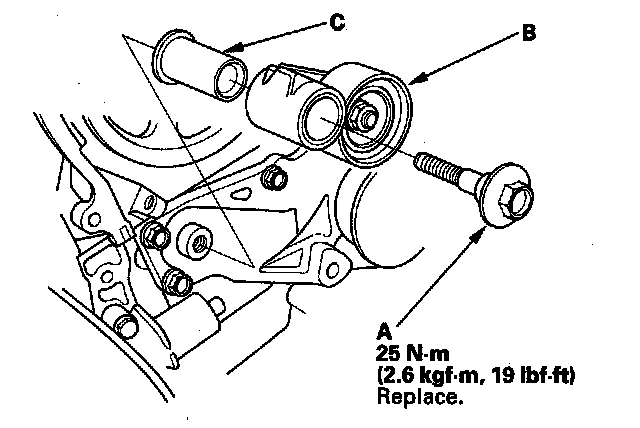

Timing Belt TensionerJ35A6 Engine

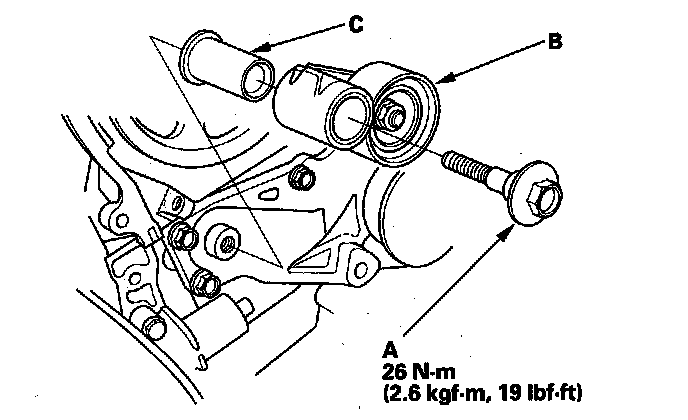

J35A7 Engine
Timing Cover

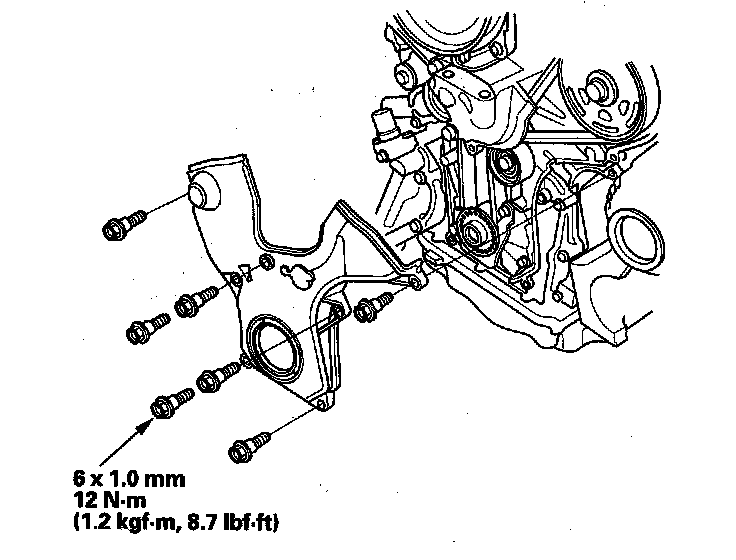

Lower cover

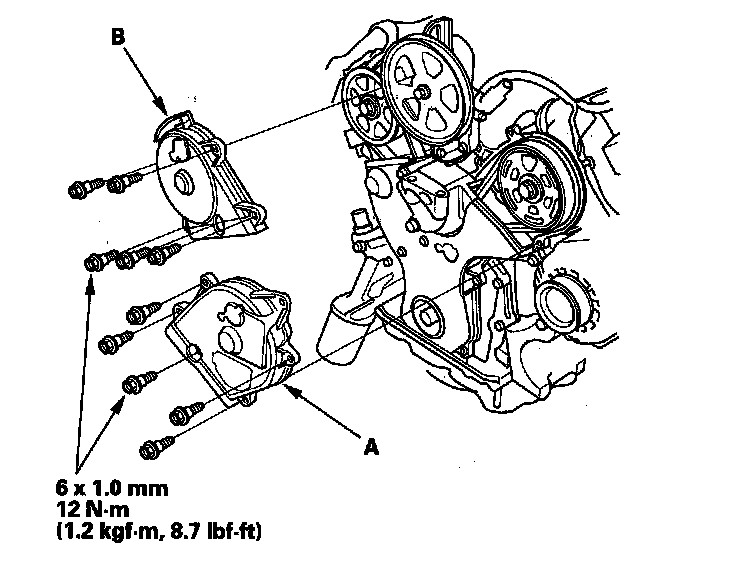

Front upper cover (A) and the rear upper cover (B)
Crankshaft Pulley
Torque 64 N-m (6.5 kgf-m, 47 lbf-ft)
Tighten the bolt an additional 60°
J35A6 Engine
J35A7 Engine
Timing Cover
Lower cover
Front upper cover (A) and the rear upper cover (B)
Crankshaft Pulley
Torque 64 N-m (6.5 kgf-m, 47 lbf-ft)
Tighten the bolt an additional 60°
