MAF Sensor/IAT Sensor Replacement

MAF Sensor/IAT Sensor Replacement

J35A7 engine ('08 model)

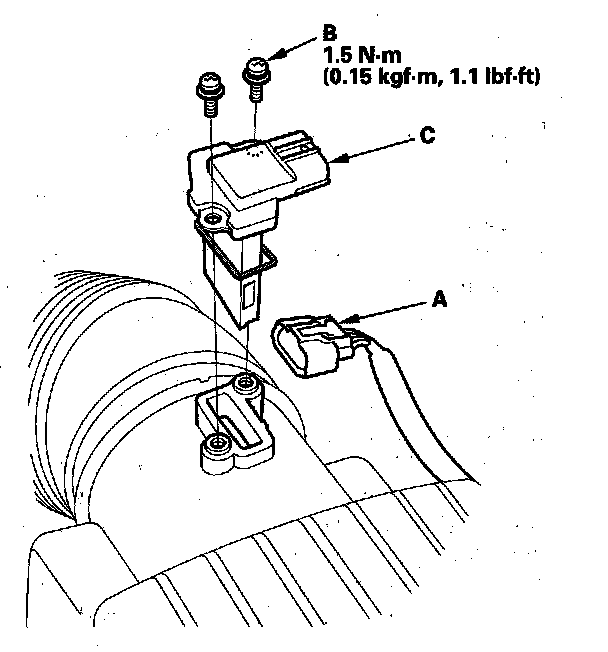

1. Disconnect the MAF sensor/IAT sensor 5P connector (A).






2. Remove the screws (B).
3. Remove the MAF sensor/IAT sensor (C).
4. Install the parts in the reverse order of removal.
