Vehicle Speed Sensor: Service and Repair
VSS ReplacementM/T

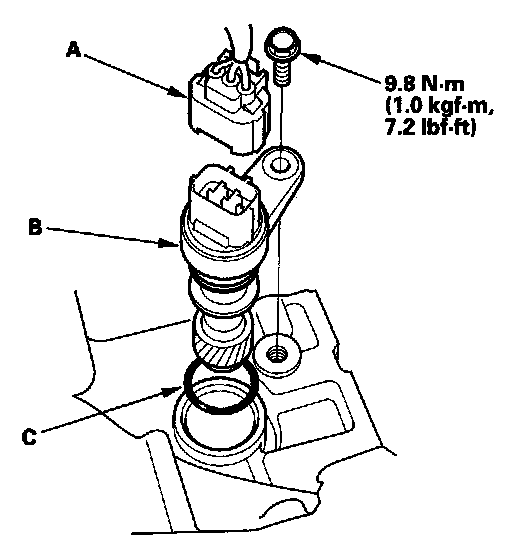

1. Remove the air cleaner.
2. Disconnect the VSS connector (A).
3. Remove the VSS (B).
4. Install the parts in the reverse order removal with new O-ring (C).
M/T
1. Remove the air cleaner.
2. Disconnect the VSS connector (A).
3. Remove the VSS (B).
4. Install the parts in the reverse order removal with new O-ring (C).
