Main Relay (Computer/Fuel System): Locations
52. Under Left Side Of Dash:

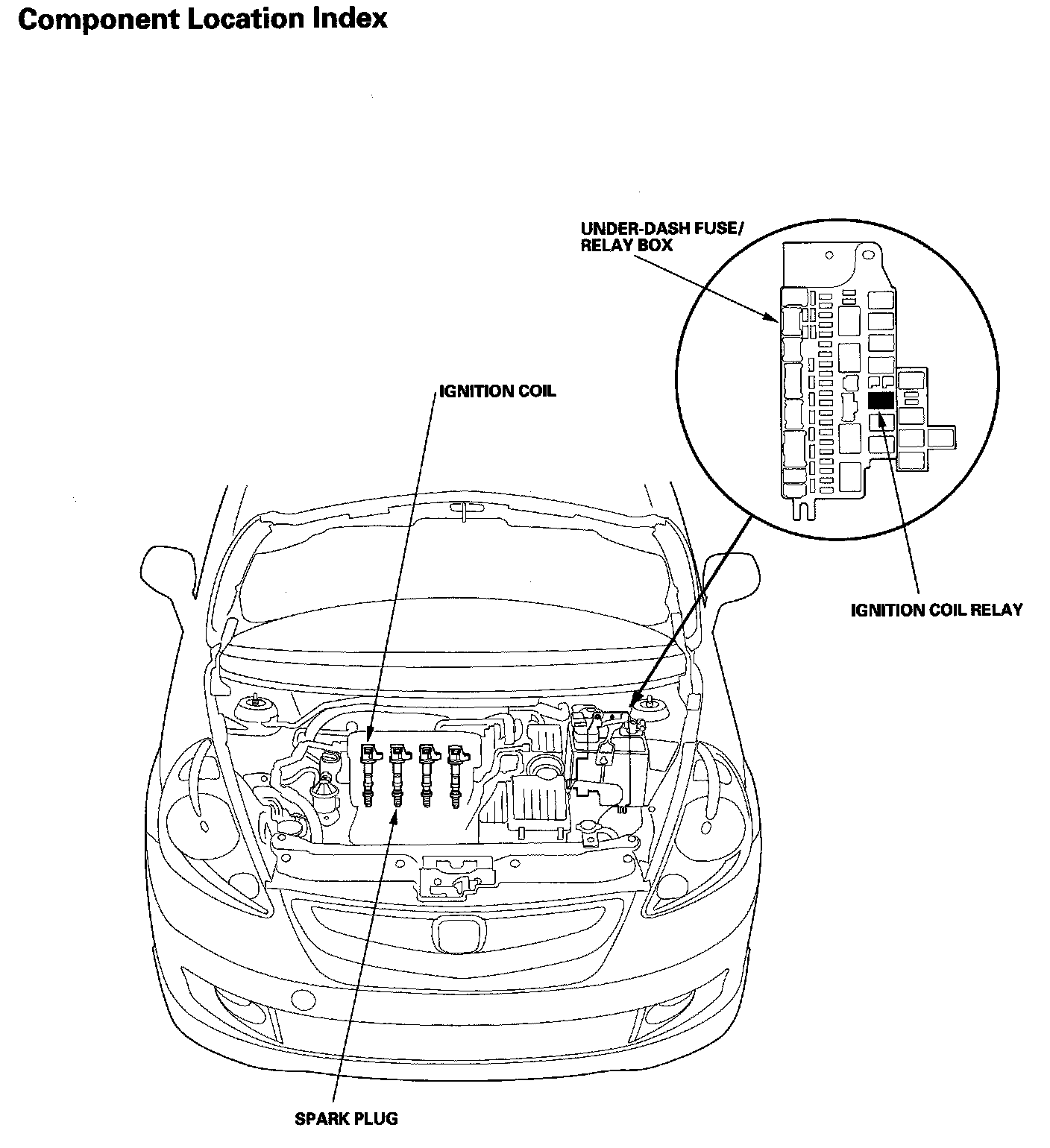

Ignition System Component Location Index:

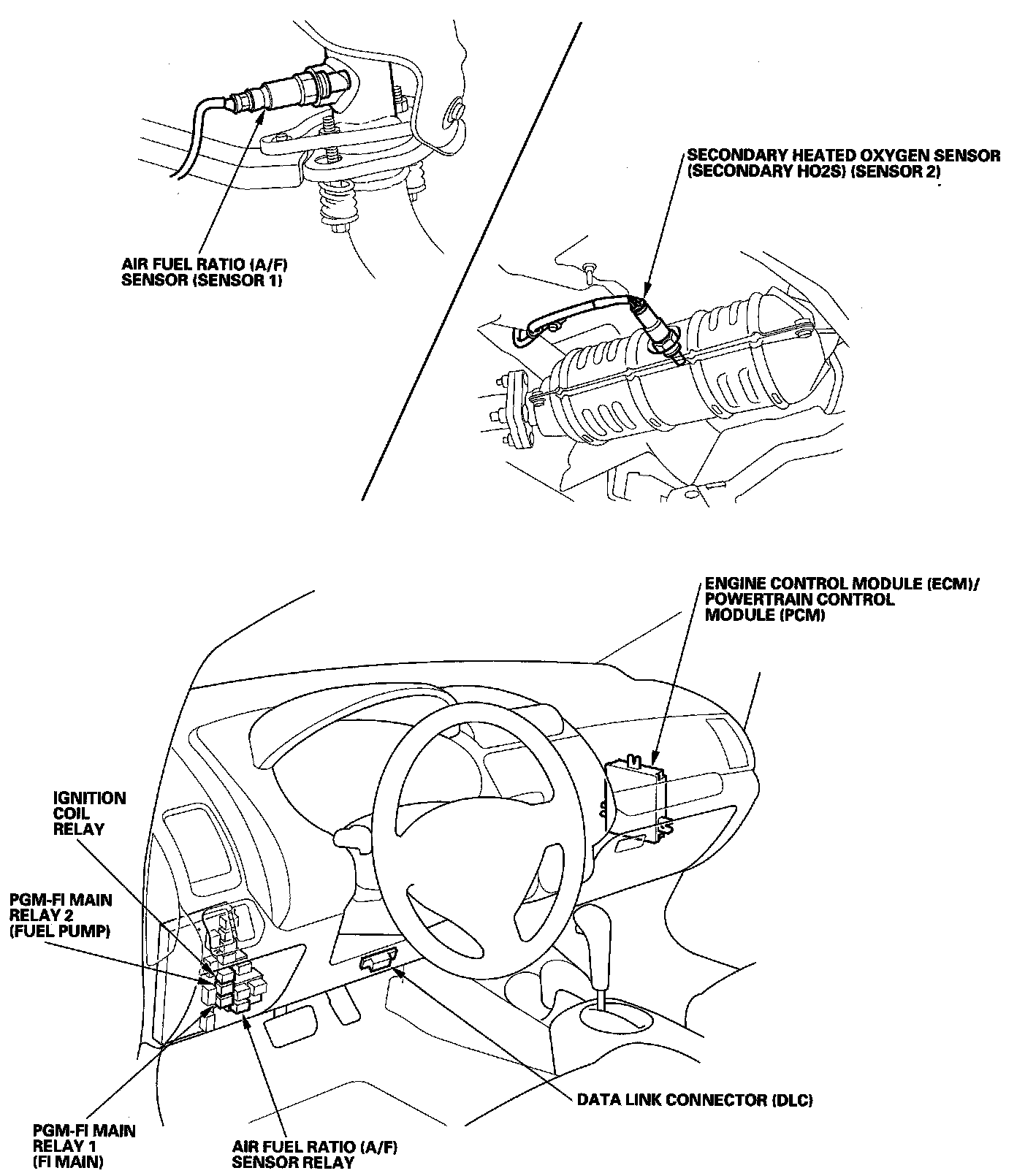

PGM-FI System Component Location Index:

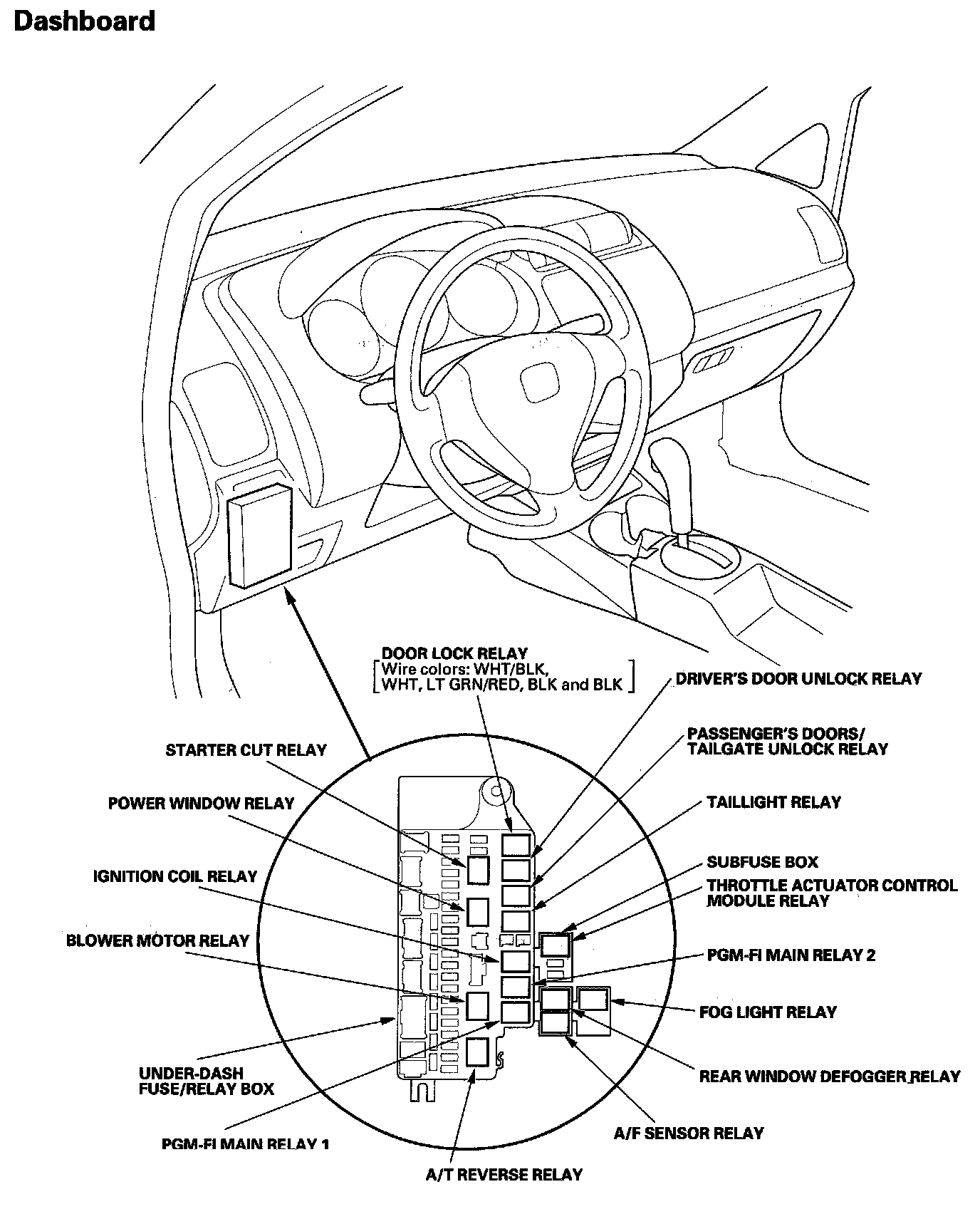

Relay And Control Unit Locations Dashboard:
