Home >> Honda >> 2008 >> Fit L4-1.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Electronic Throttle Control Module >> Locations

Electronic Throttle Control Module: Locations

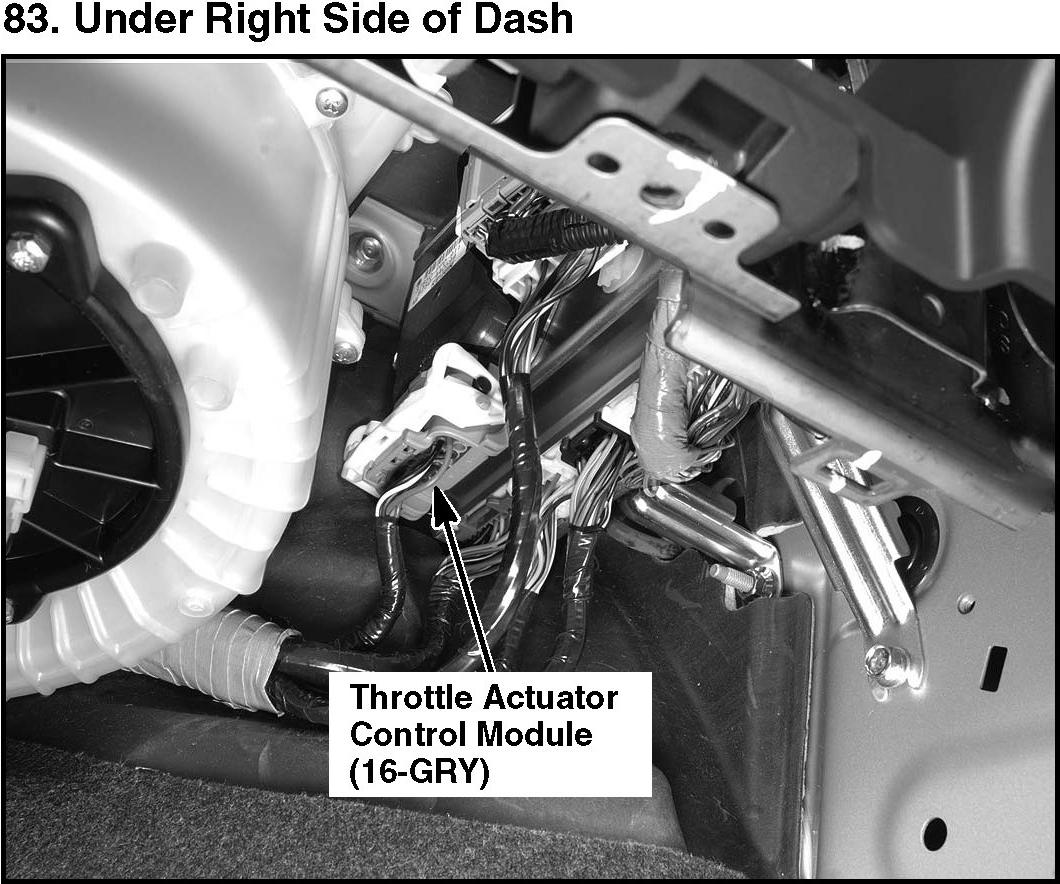

83. Under Right Side Of Dash:

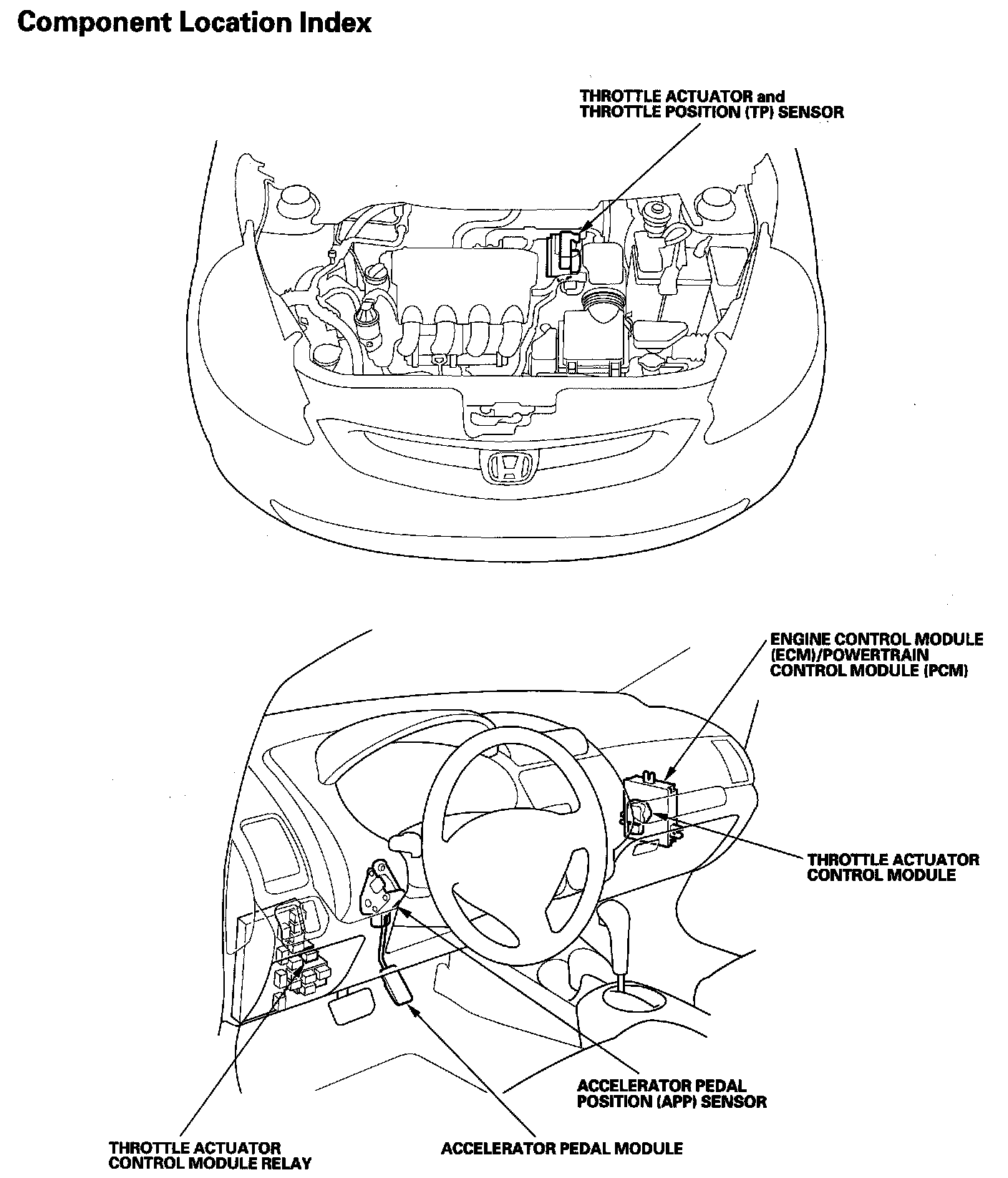

Electronic Throttle Control System Component Location Index:

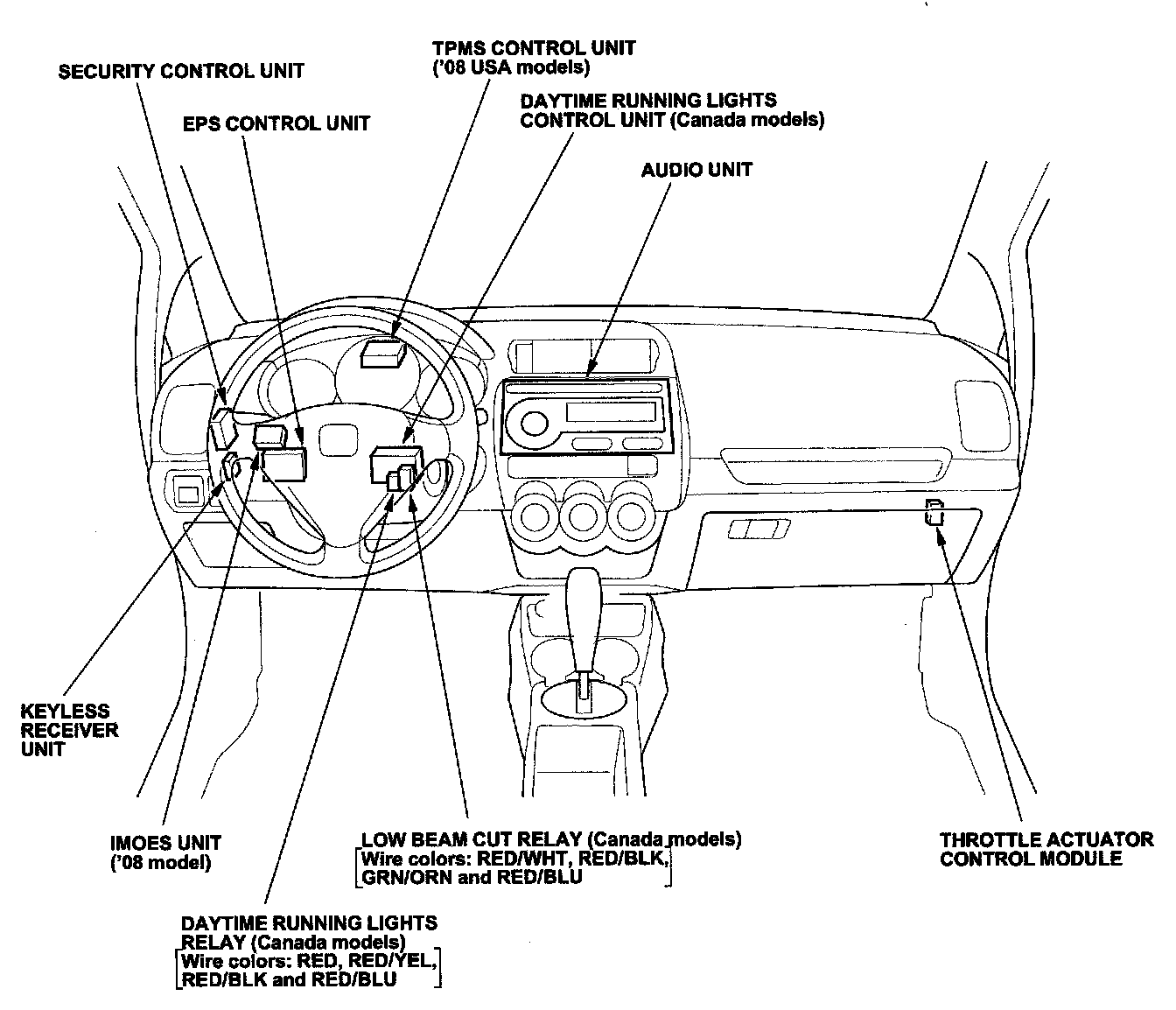

Relay And Control Unit Locations Dashboard:
