Accelerator Pedal Position Sensor: Service and Repair

Accelerator Pedal Module Removal/Installation

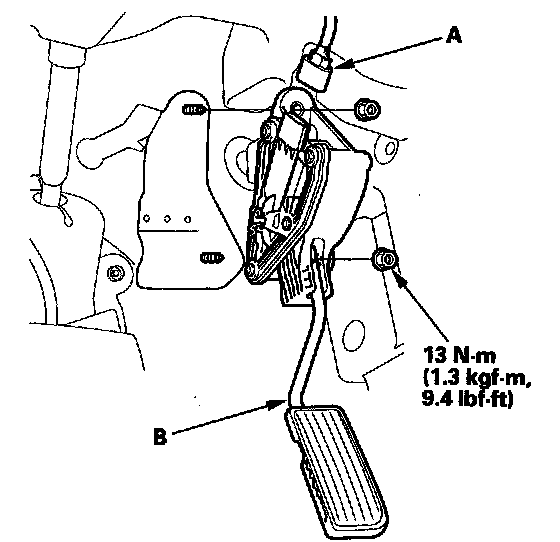

1. Disconnect the accelerator pedal module connector (A).






2. Remove the accelerator pedal module (B).

NOTE: The APP sensor is not available separately. Do not disassemble the accelerator pedal module.

3. Install the parts in the reverse order of removal.
