Home >> Honda >> 2008 >> Civic L4-1.8L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Service Specifications

Service Specifications

Flywheel

Tighten the flywheel mounting bolts (B) in a crisscross pattern in several steps.

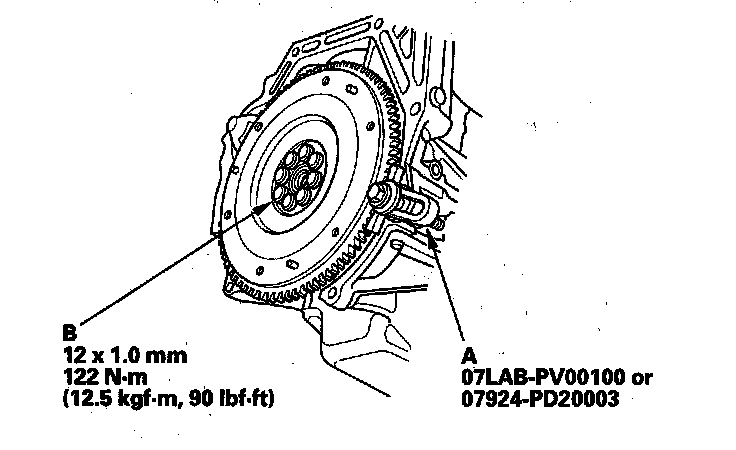

5-Speed Model

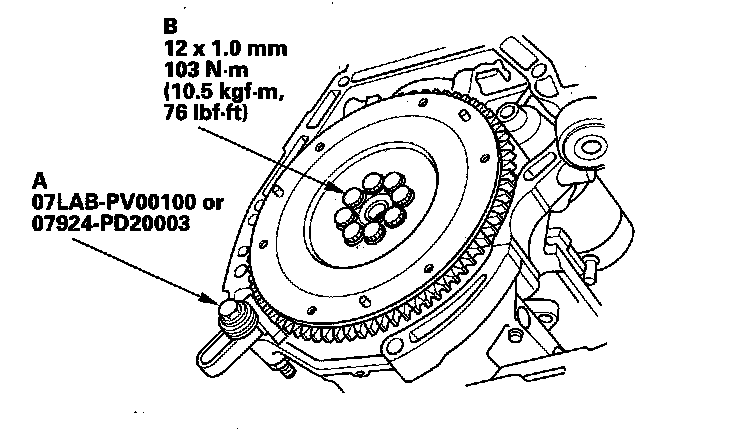

6-Speed Model

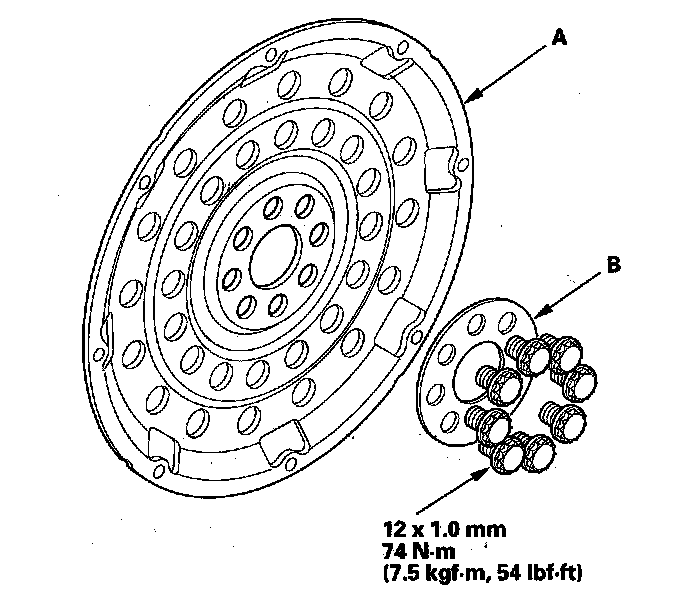

Flex Plate





Tighten the eight bolts in a crisscross pattern in two or more steps.
