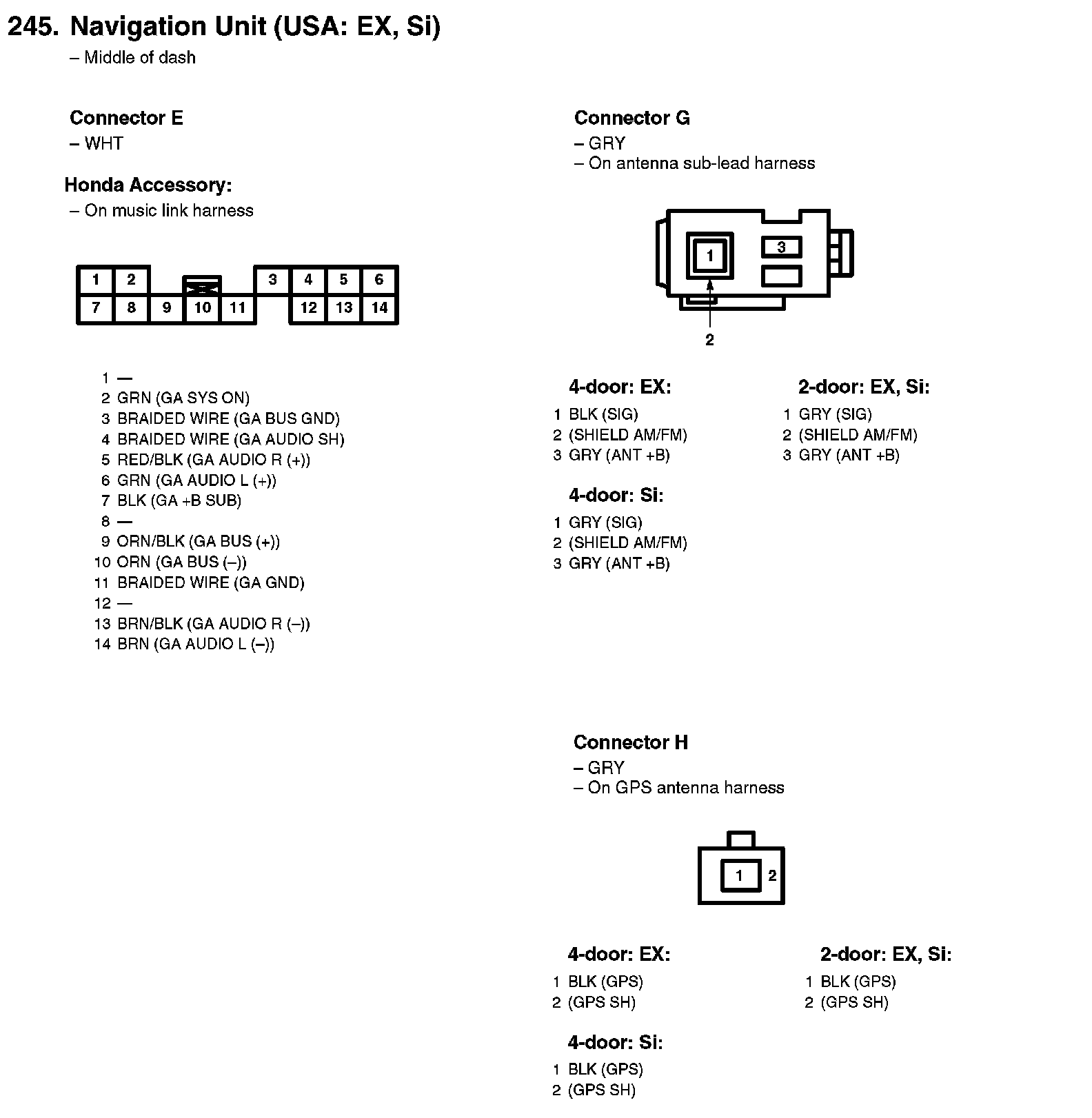

245. Navigation Unit (USA: EX, Si):

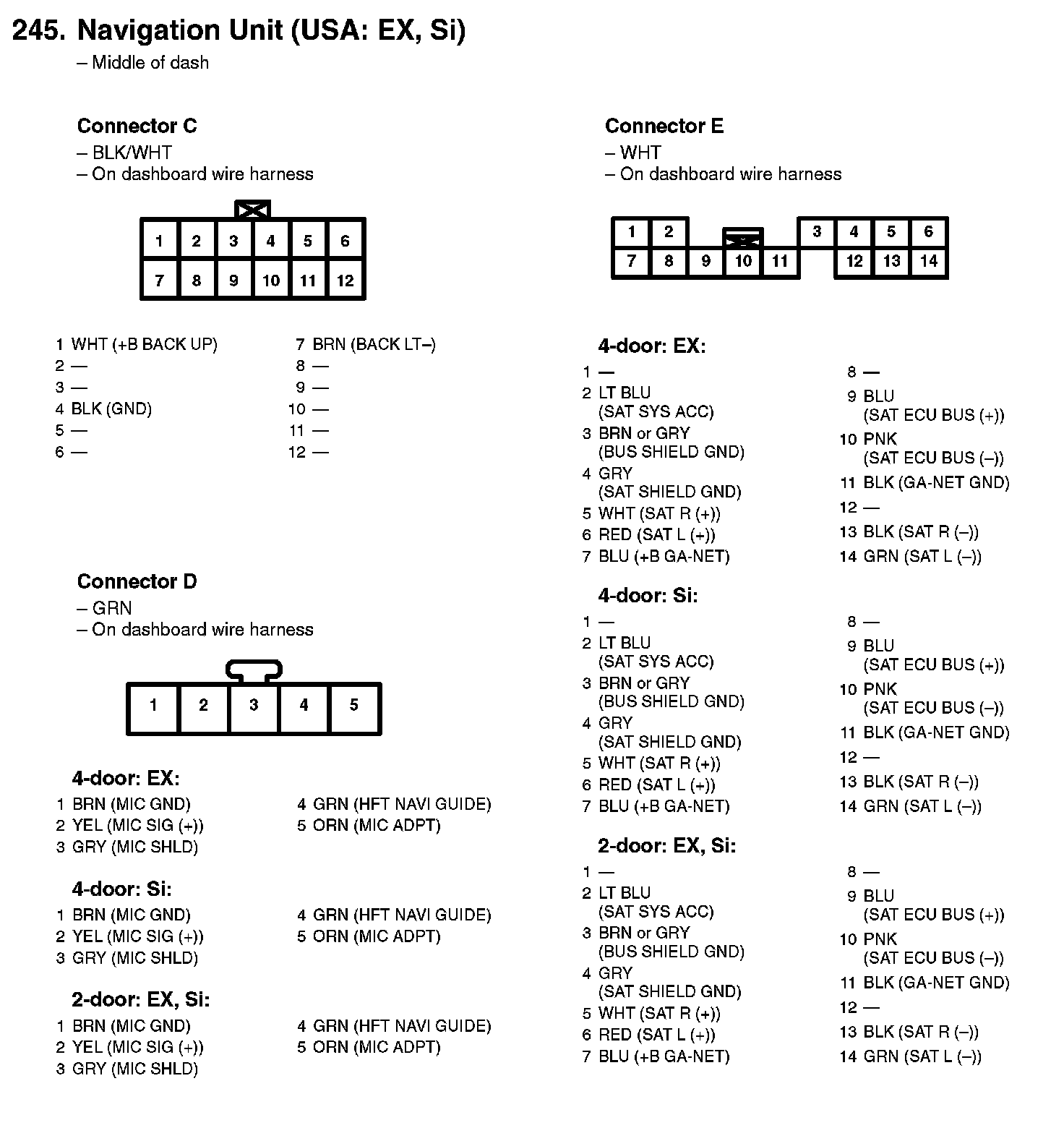

245. Navigation Unit (USA: EX, Si):

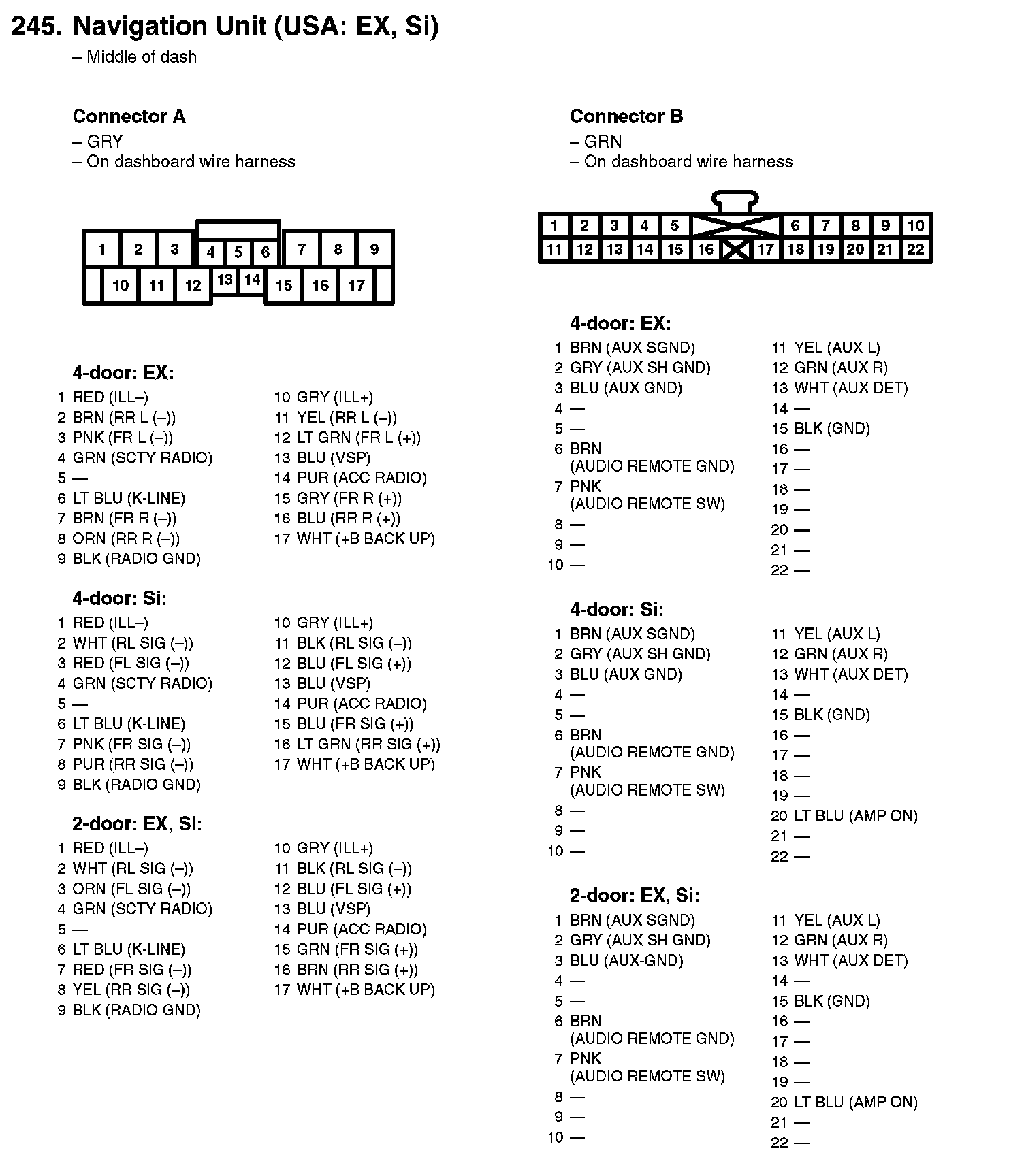

245. Navigation Unit (USA: EX, Si):
