Instrument Panel Control Module

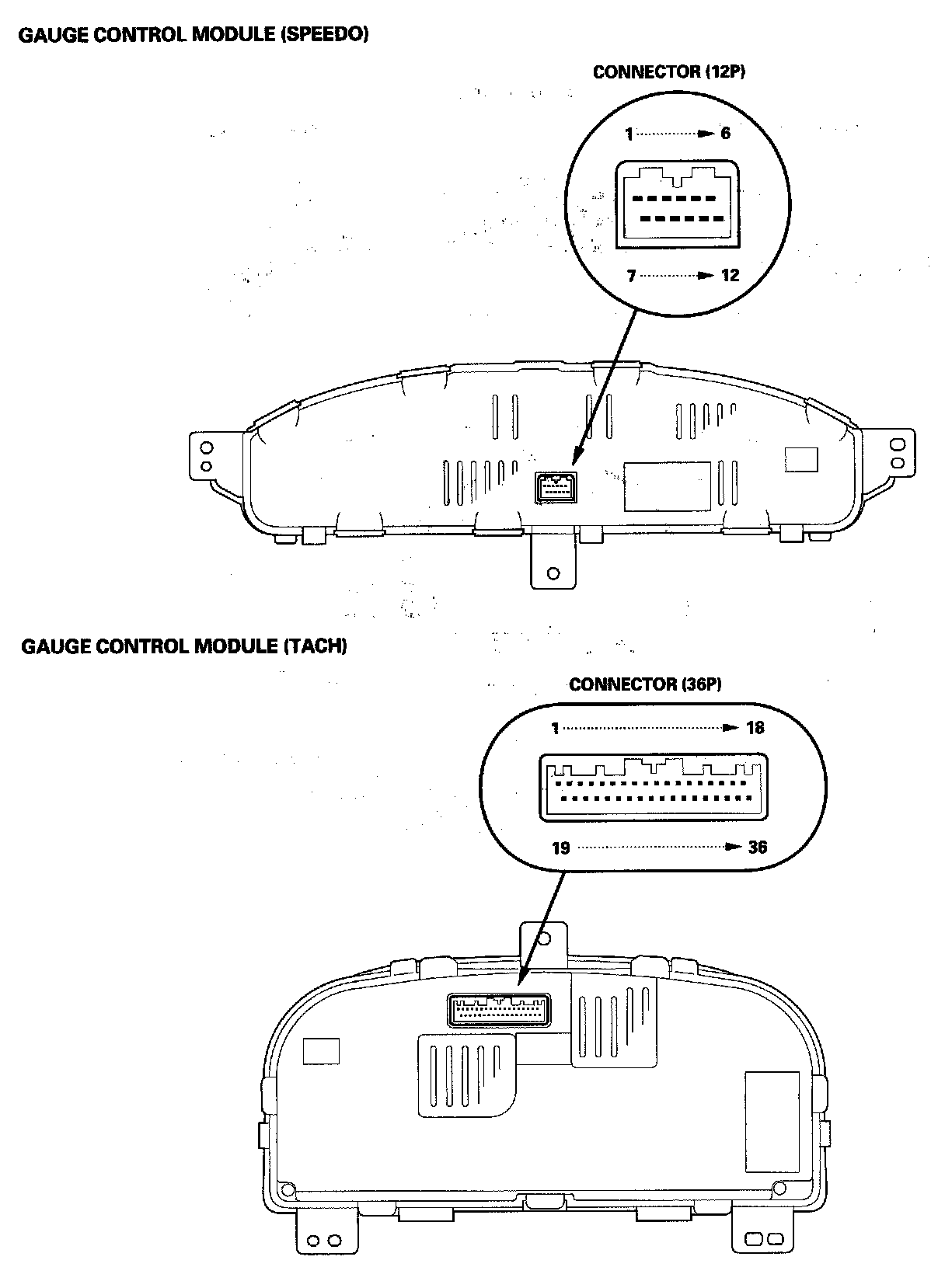

Instrument Panel Control Module

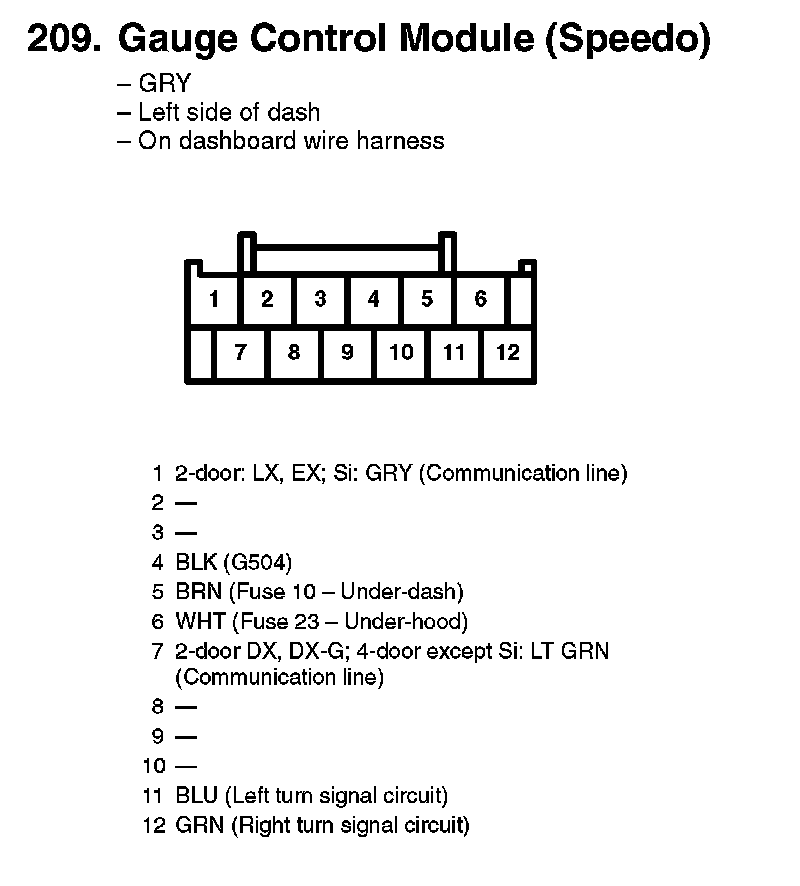

209. Gauge Control Module (Speedo):

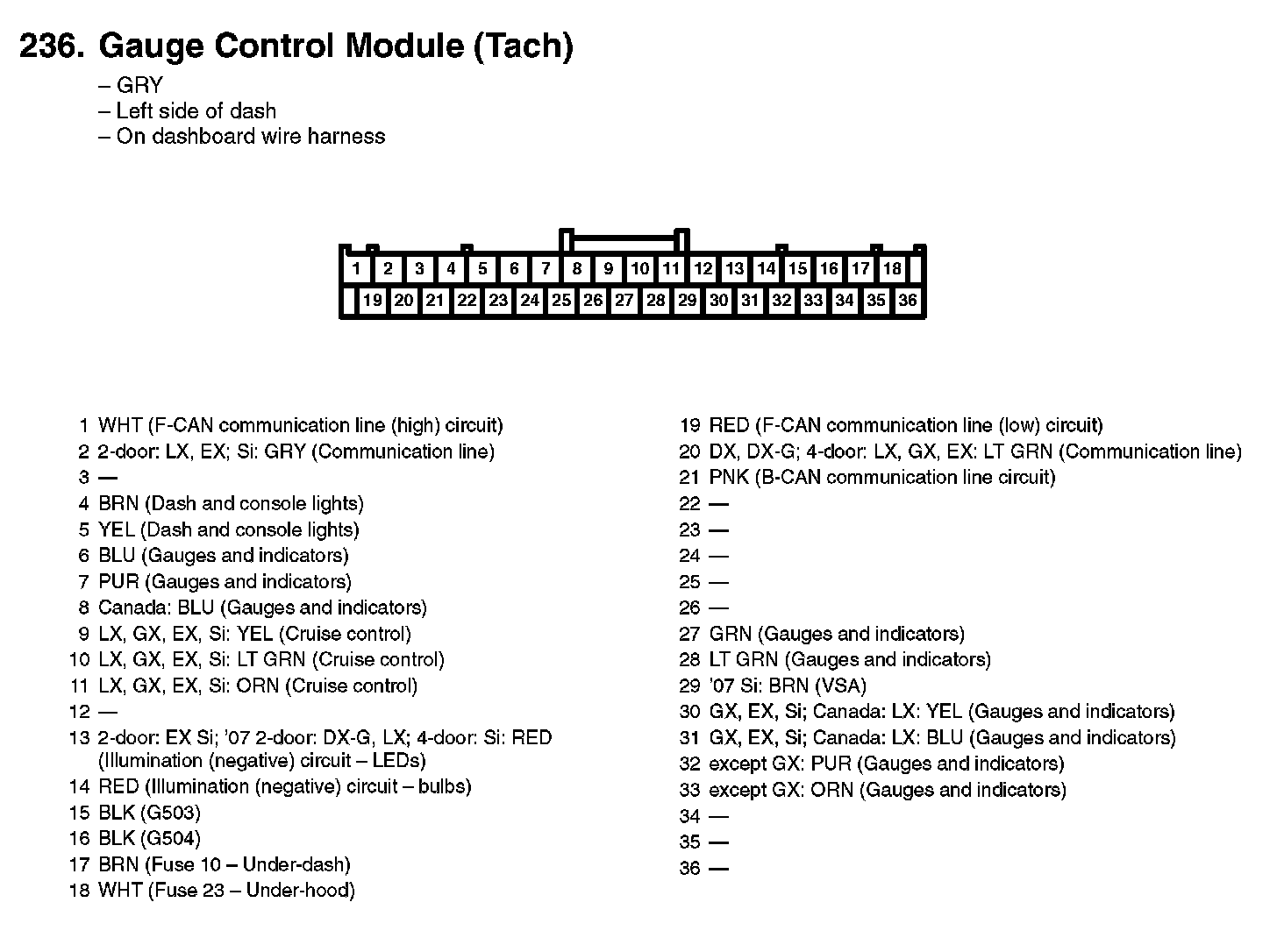

236. Gauge Control Module (Tach):

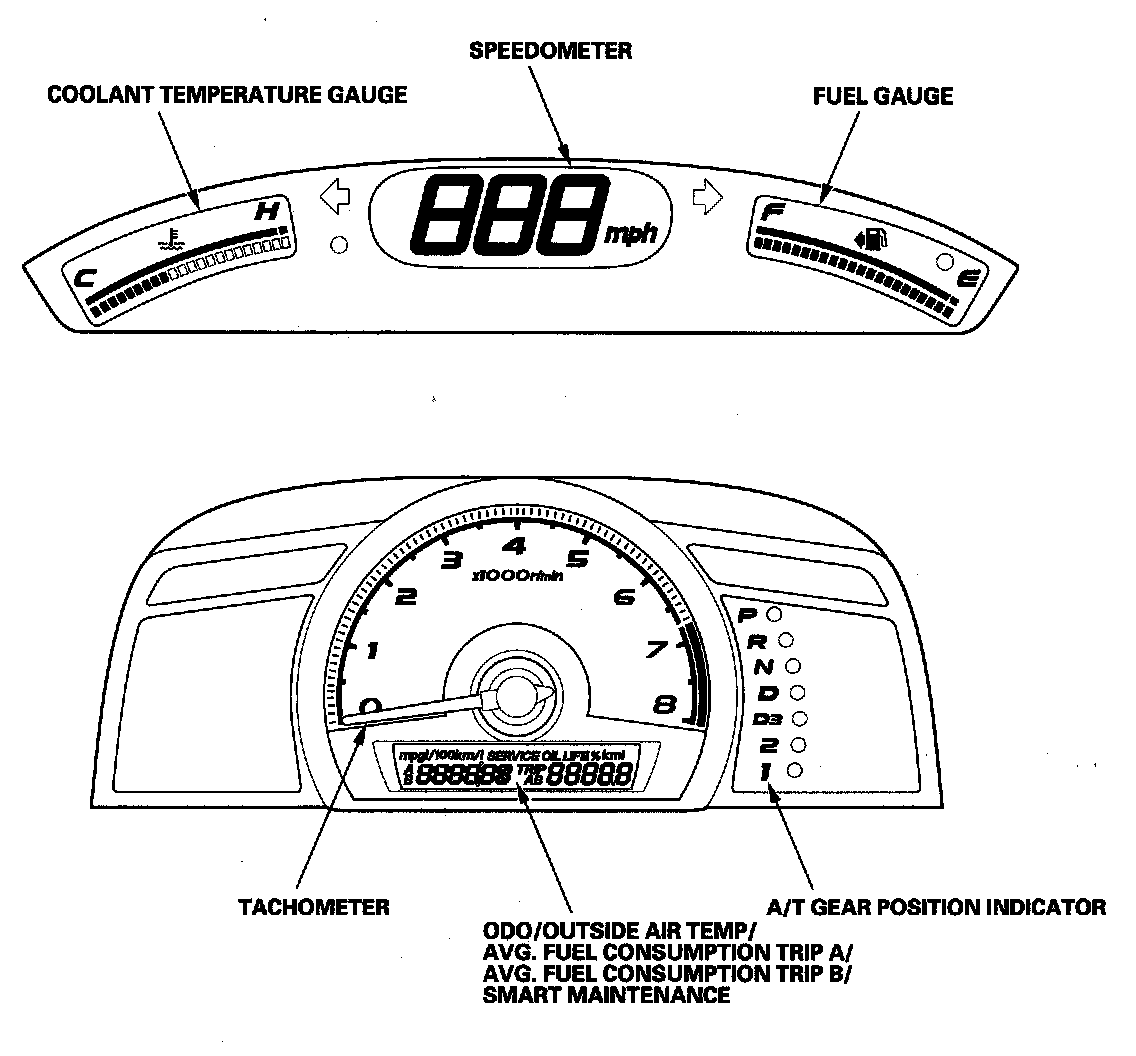

Gauges Component Location Index:
Gauges Component Location Index:
