Keyless Starting System: Diagrams

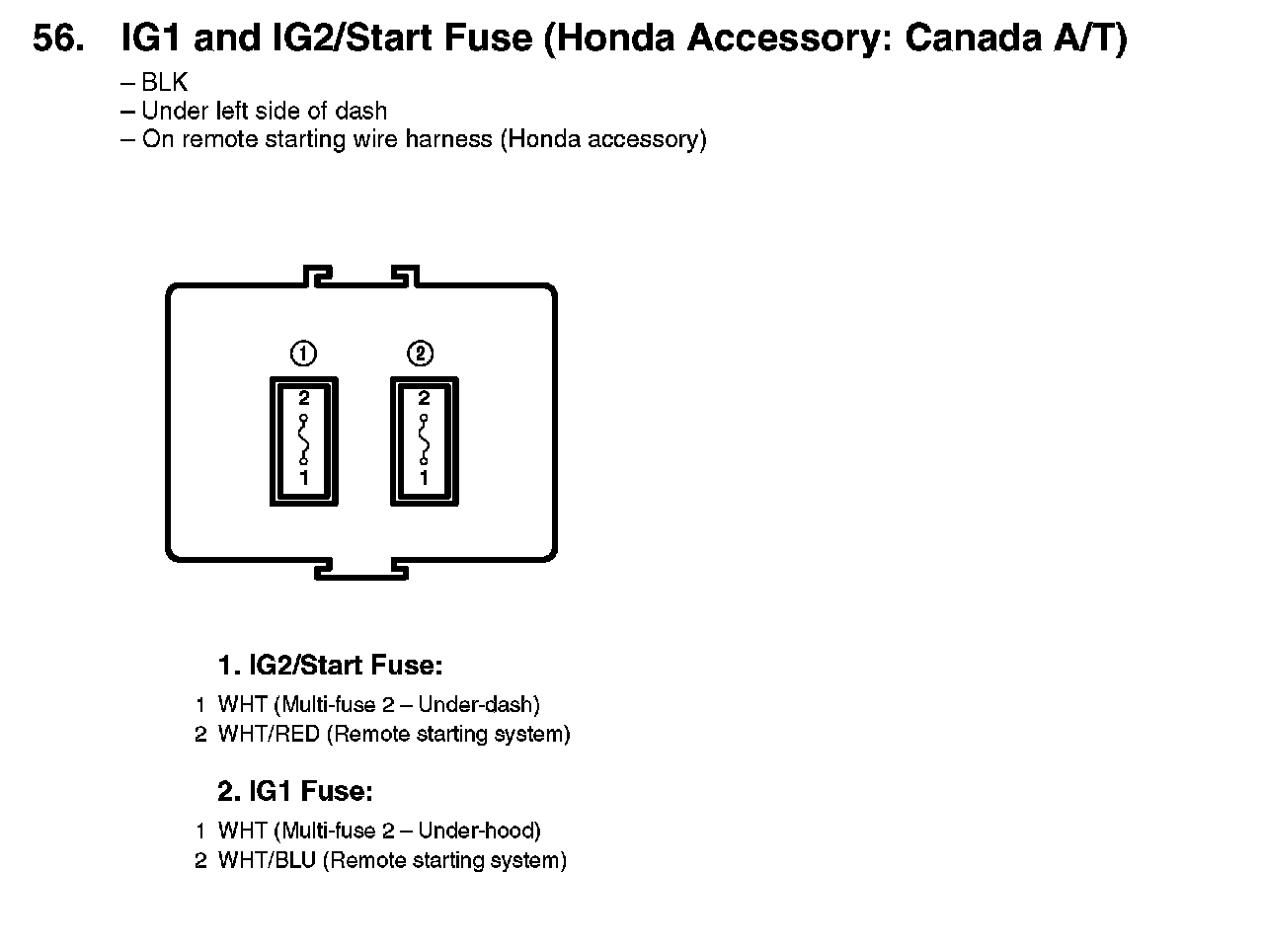

56. IG1 And IG2/Start Fuse (Honda Accessory: Canada A/T):

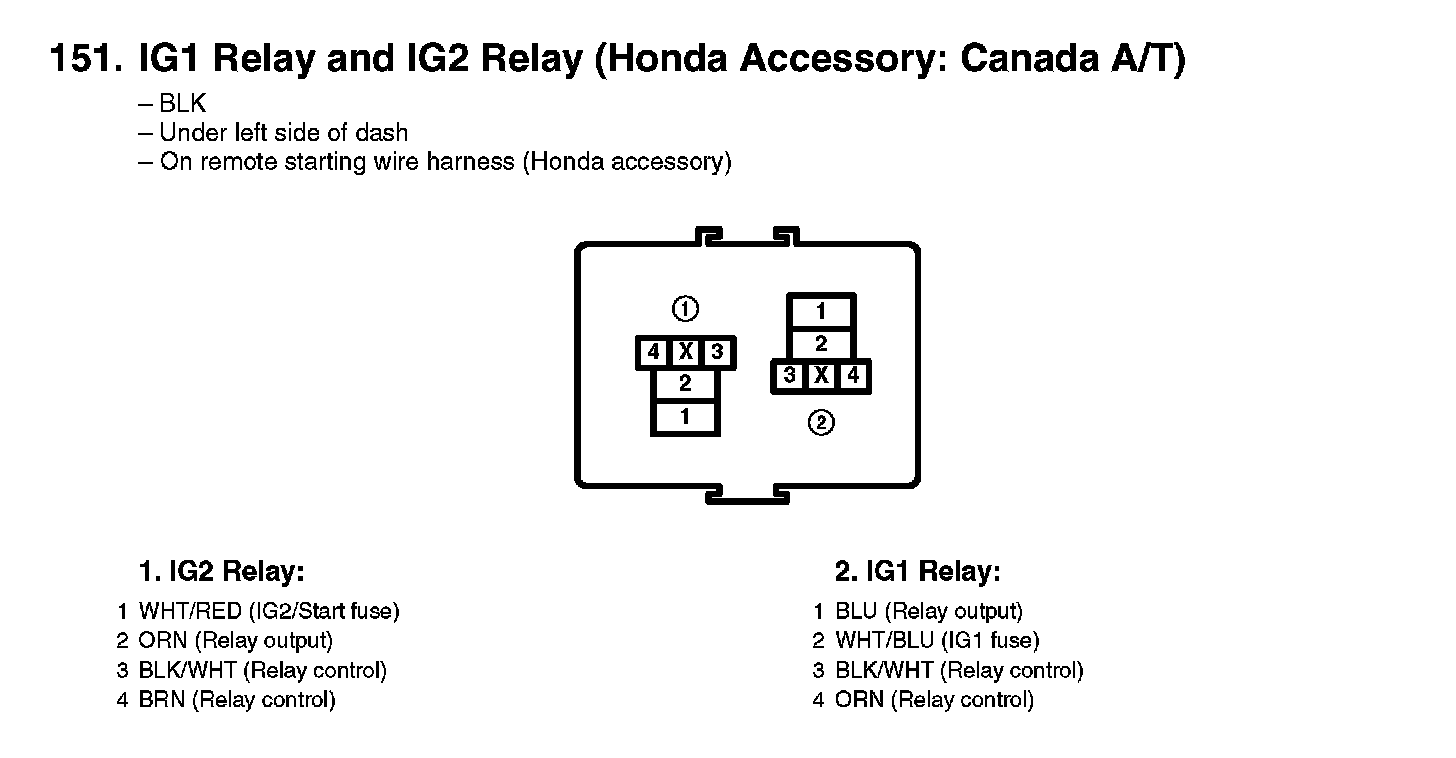

151. IG1 Relay And IG2 Relay (Honda Accessory: Canada A/T):
