Home >> Honda >> 2008 >> Civic L4-1.8L >> Repair and Diagnosis >> Body and Frame >> Frame >> Specifications

Frame: Specifications

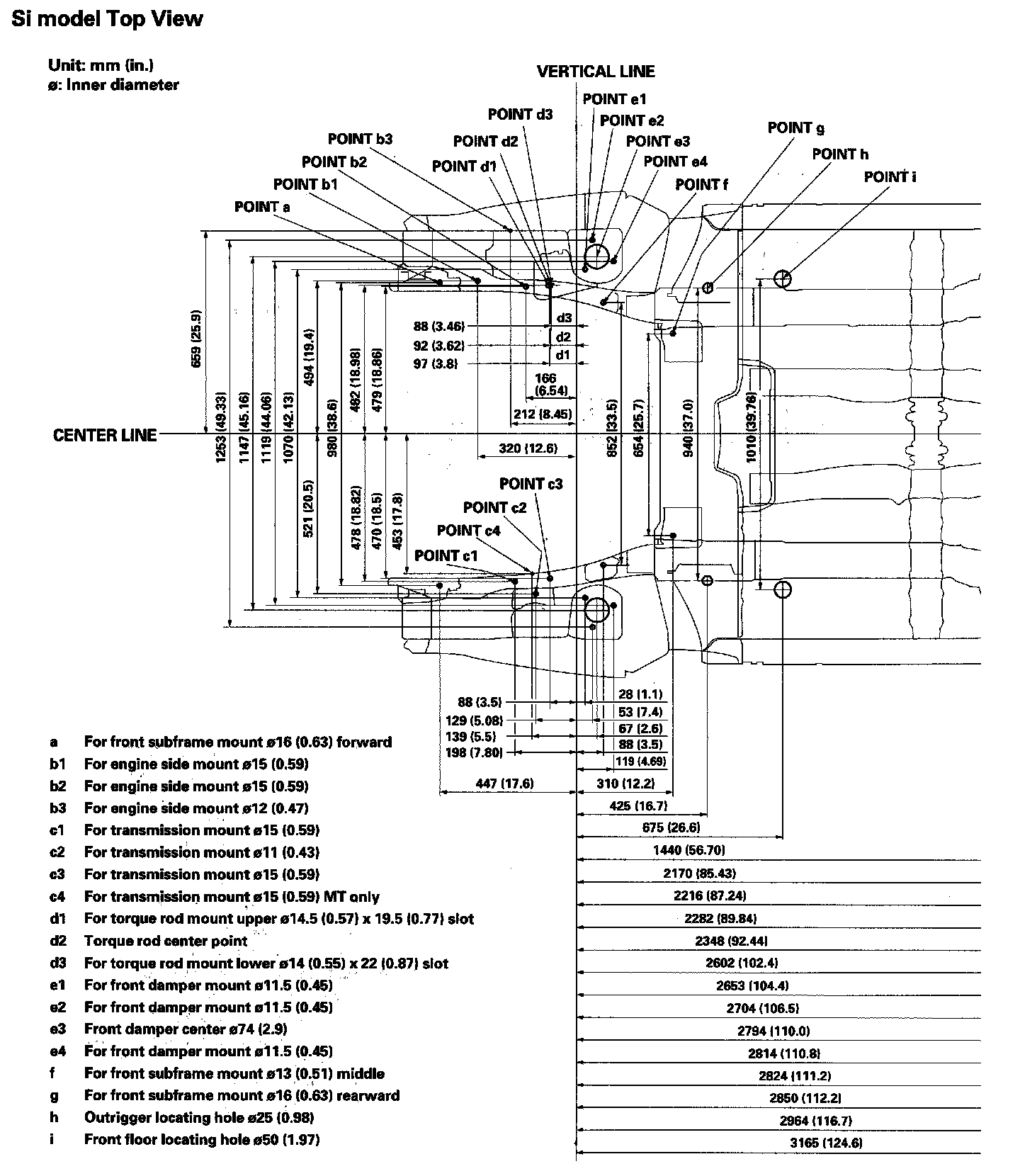

Frame Repair Chart (Part 1):

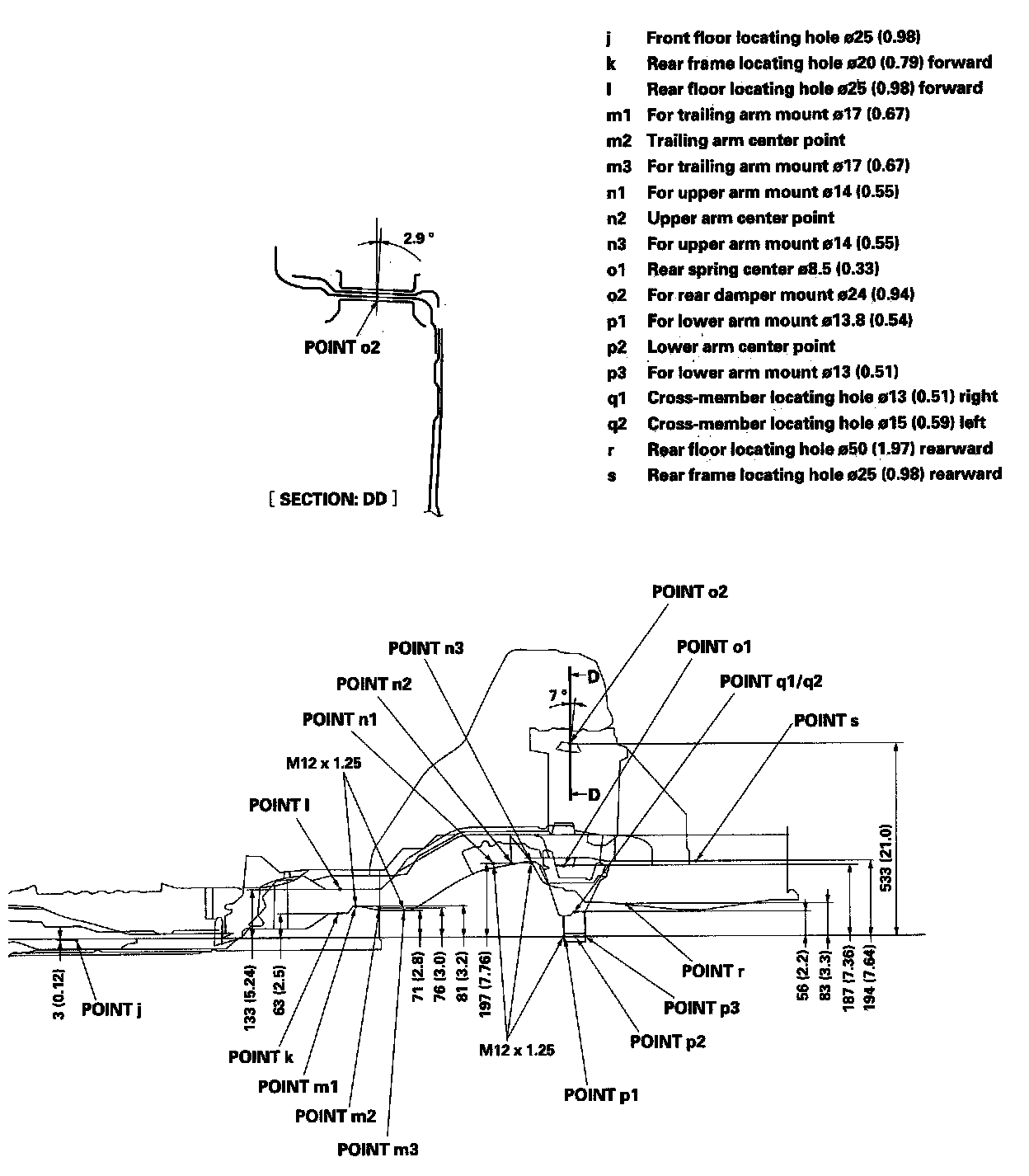

Frame Repair Chart (Part 2):

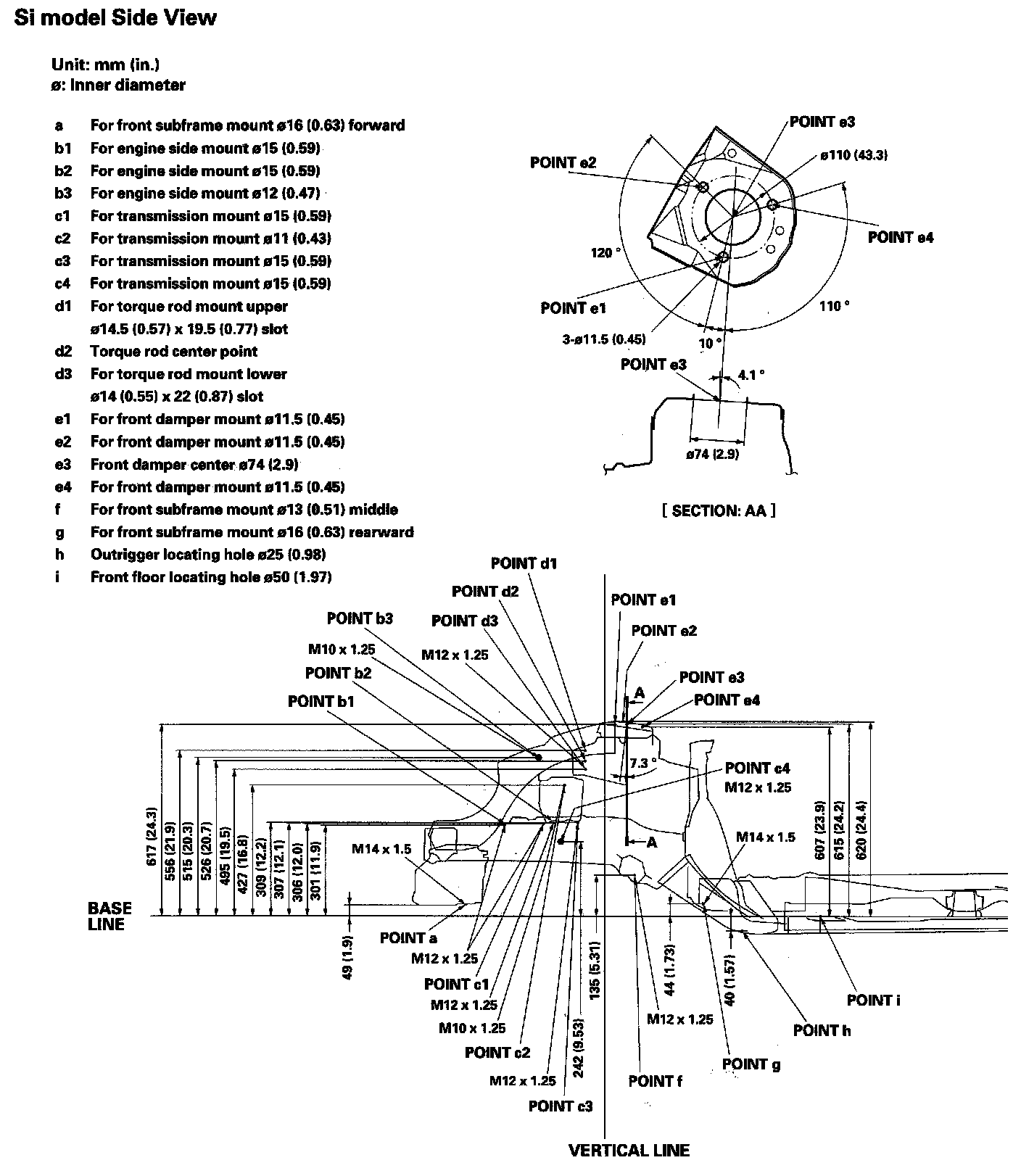

Frame Repair Chart (Part 3):

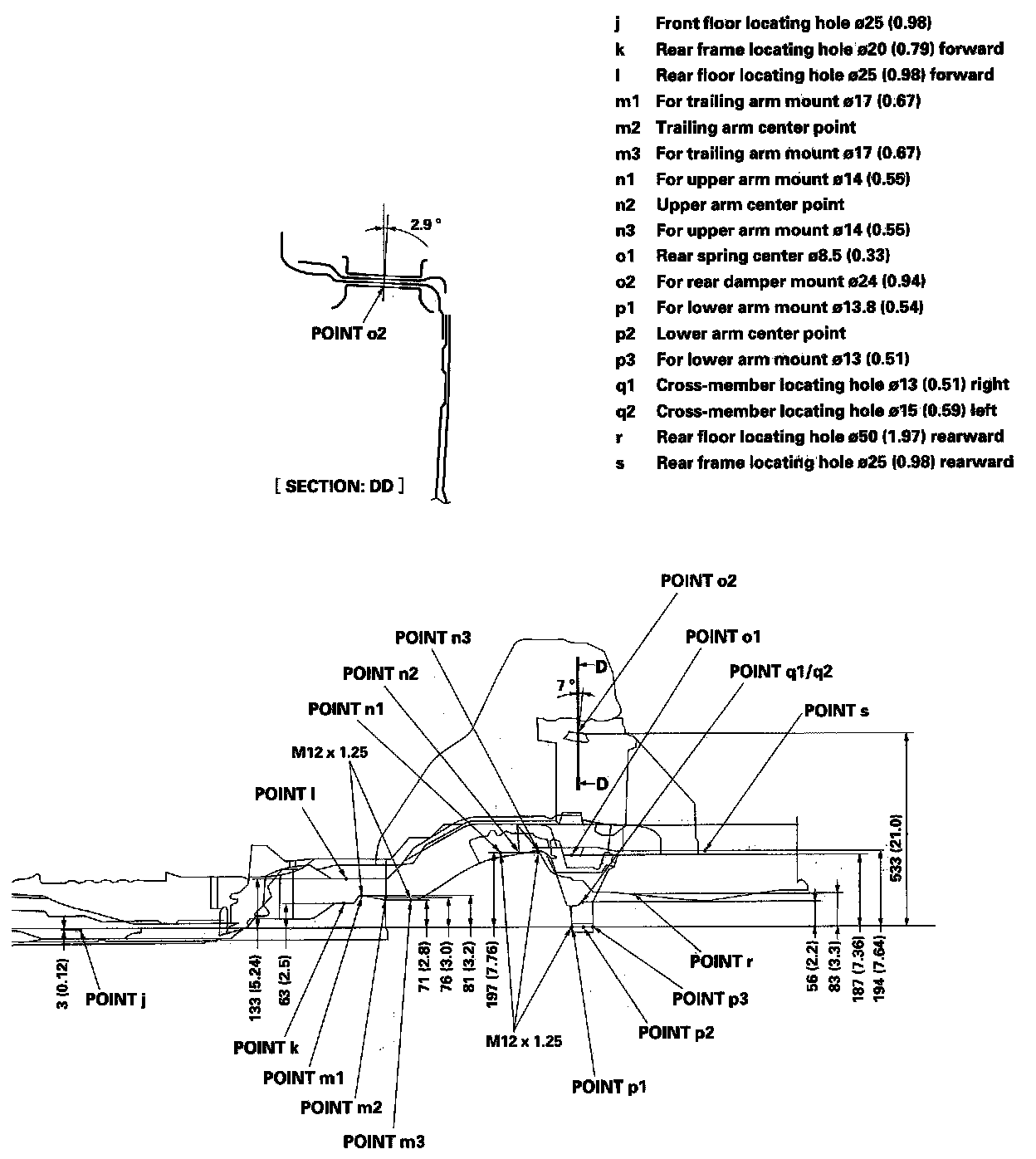

Frame Repair Chart (Part 4):

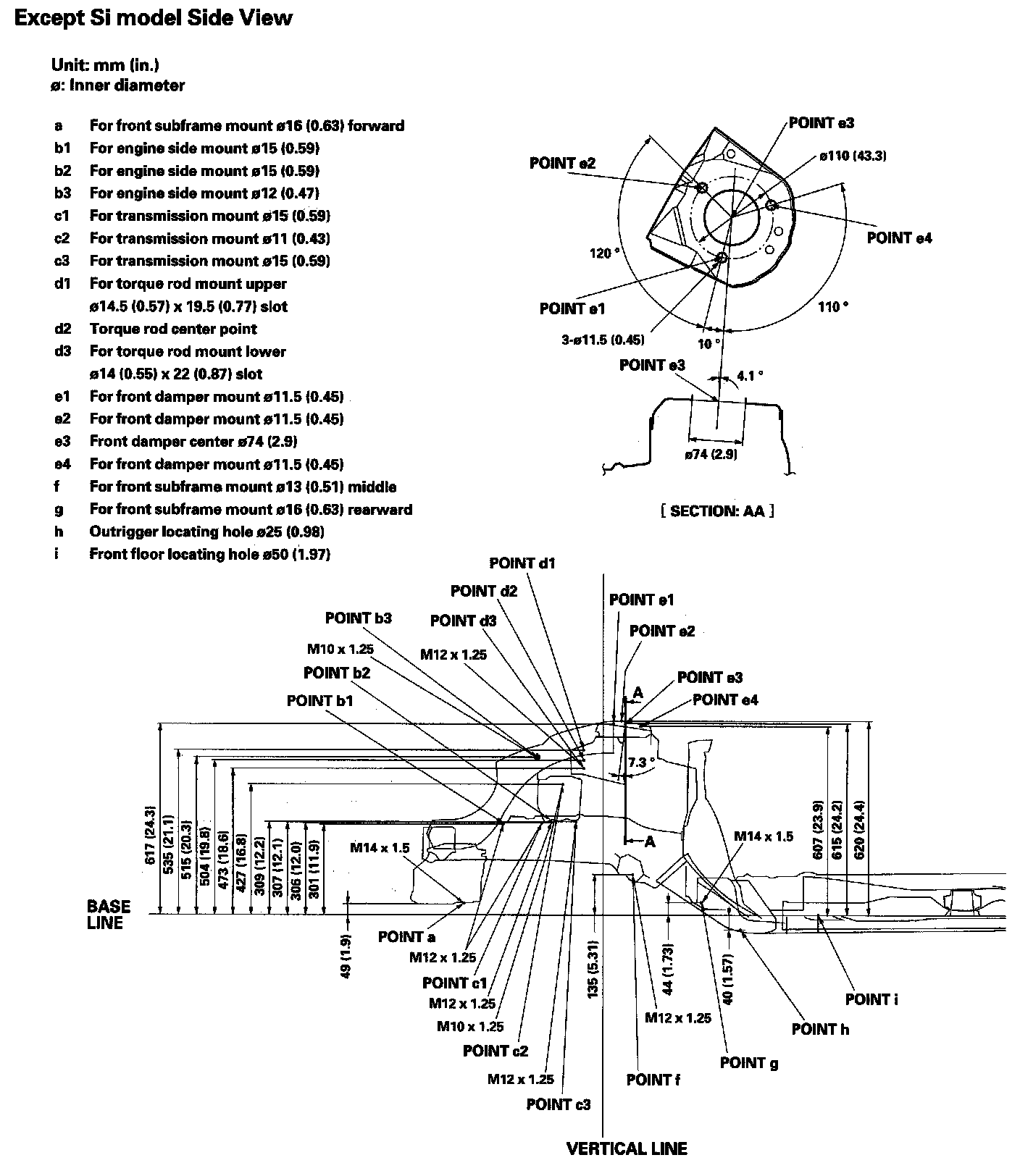

Frame Repair Chart (Part 5):

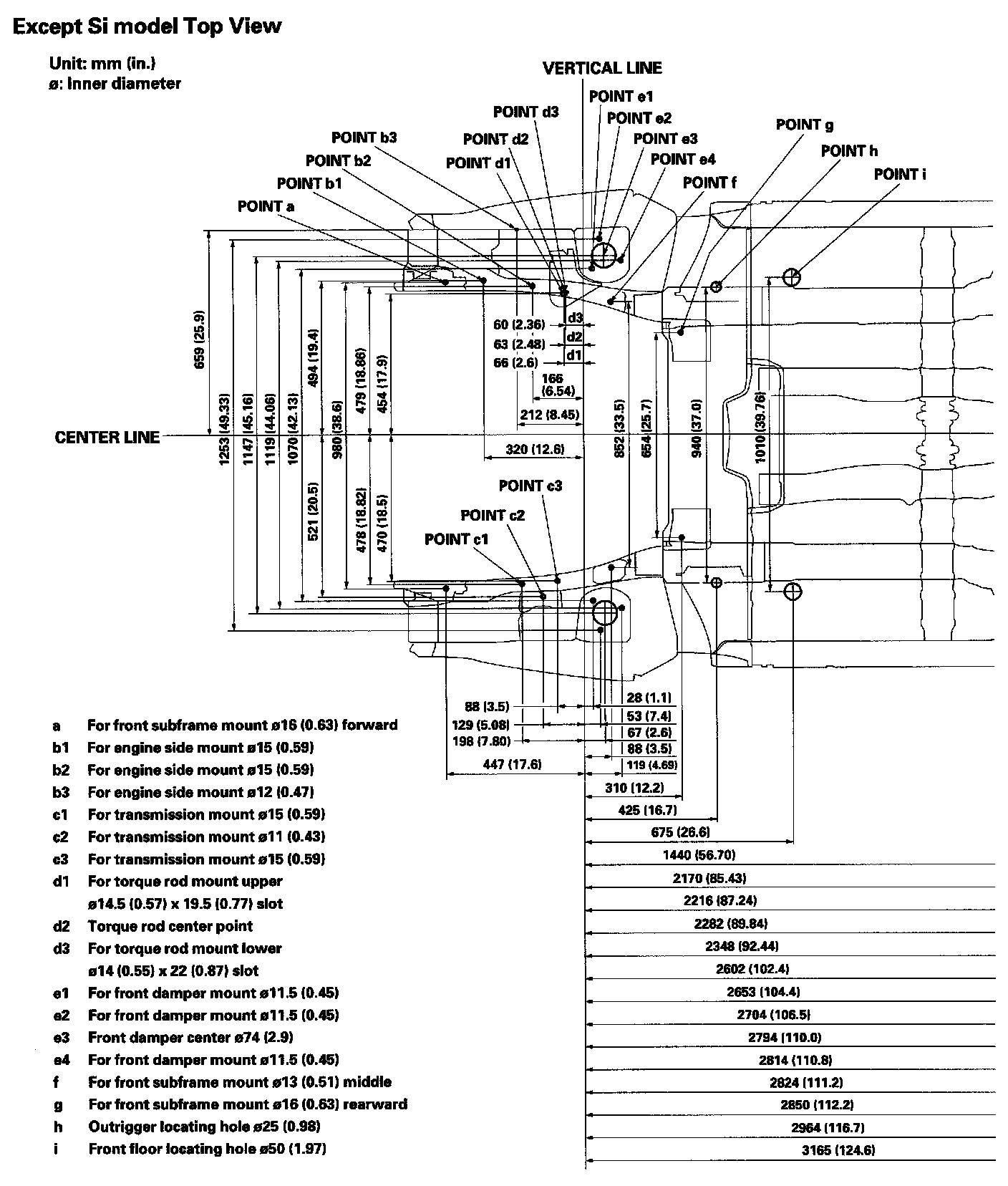

Frame Repair Chart (Part 6):

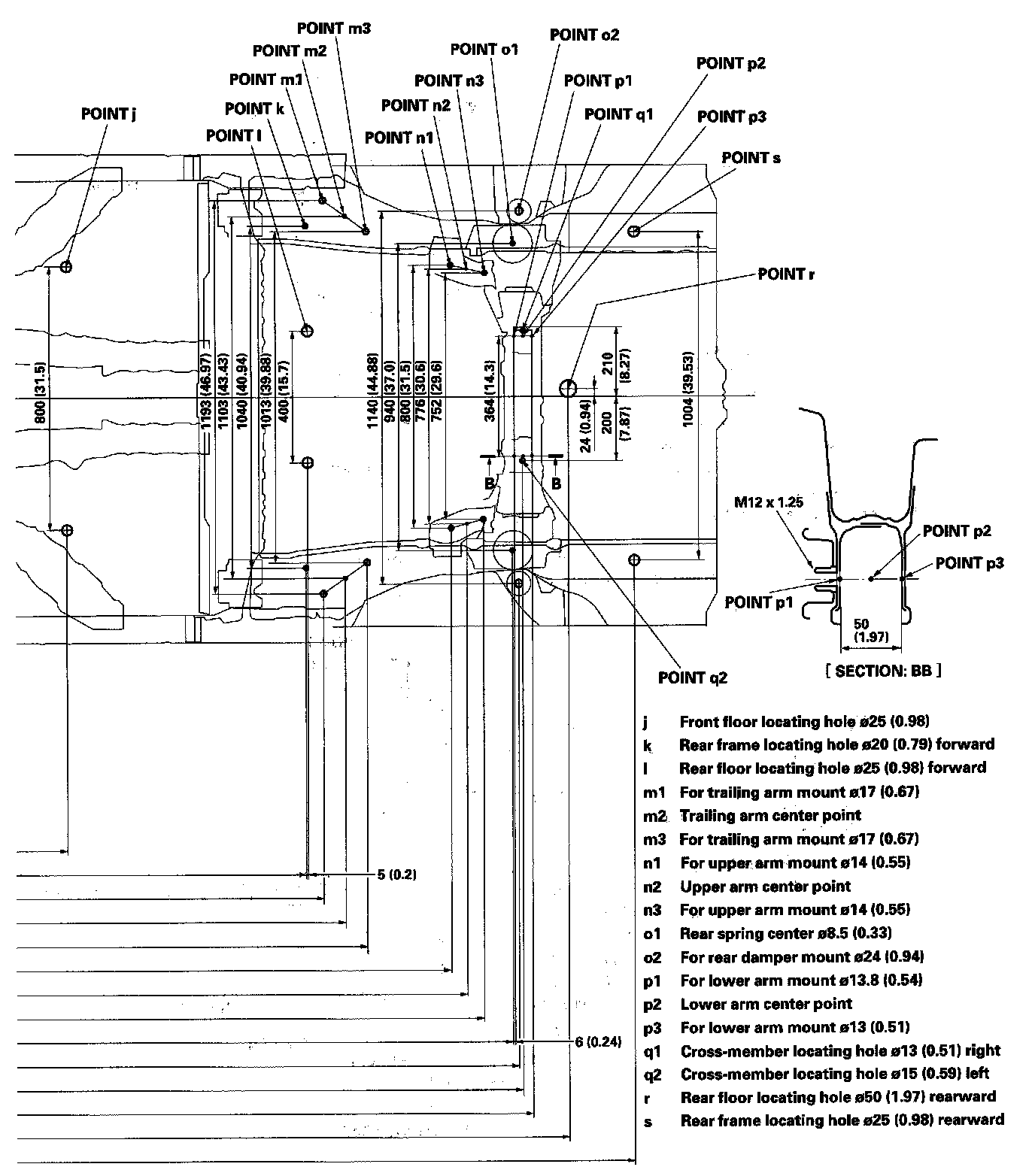

Frame Repair Chart (Part 7):

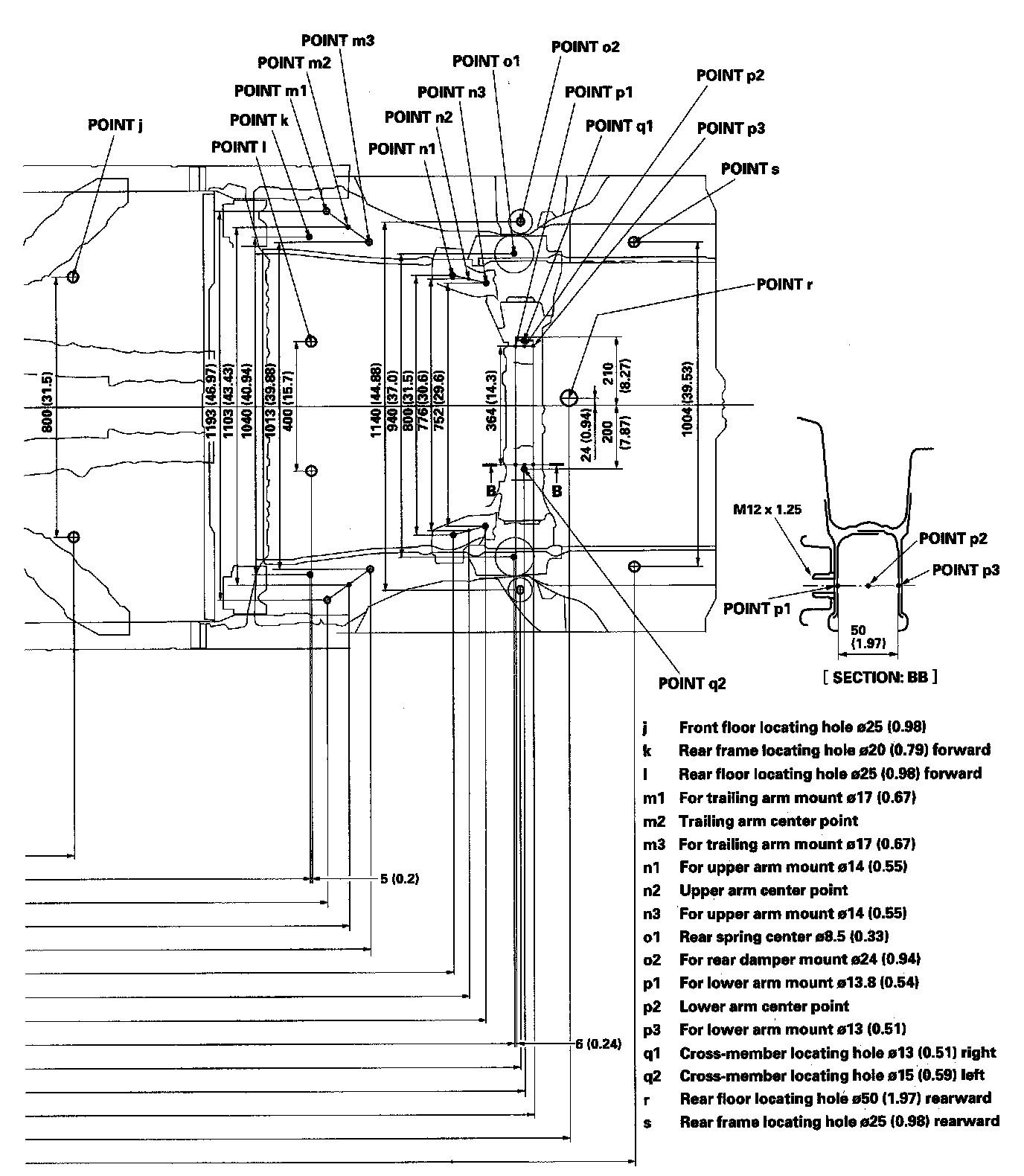

Frame Repair Chart (Part 8):
