Engine
>>
Timing Components
>>
System Specifications
System Specifications

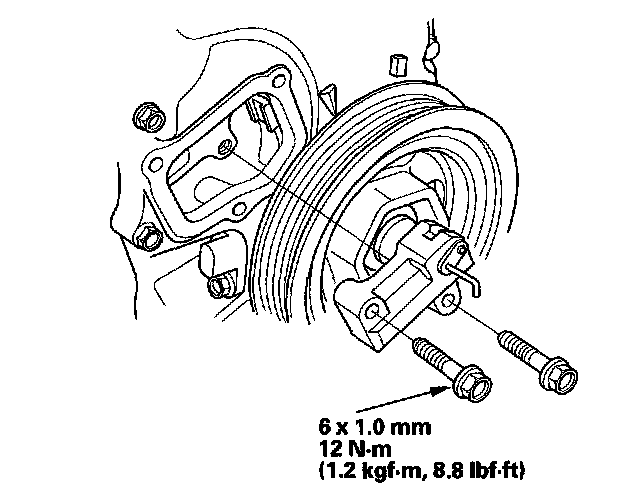

Timing Chain Tensioner
Crankshaft Pulley
Torque
49 N-m (5.0 kgf-m, 36 lbf-ft)
Tighten
additional 90°.

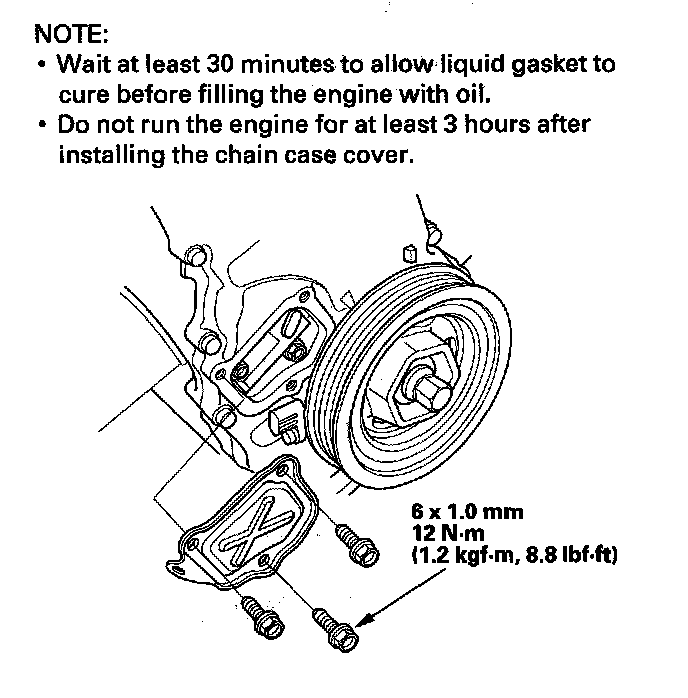

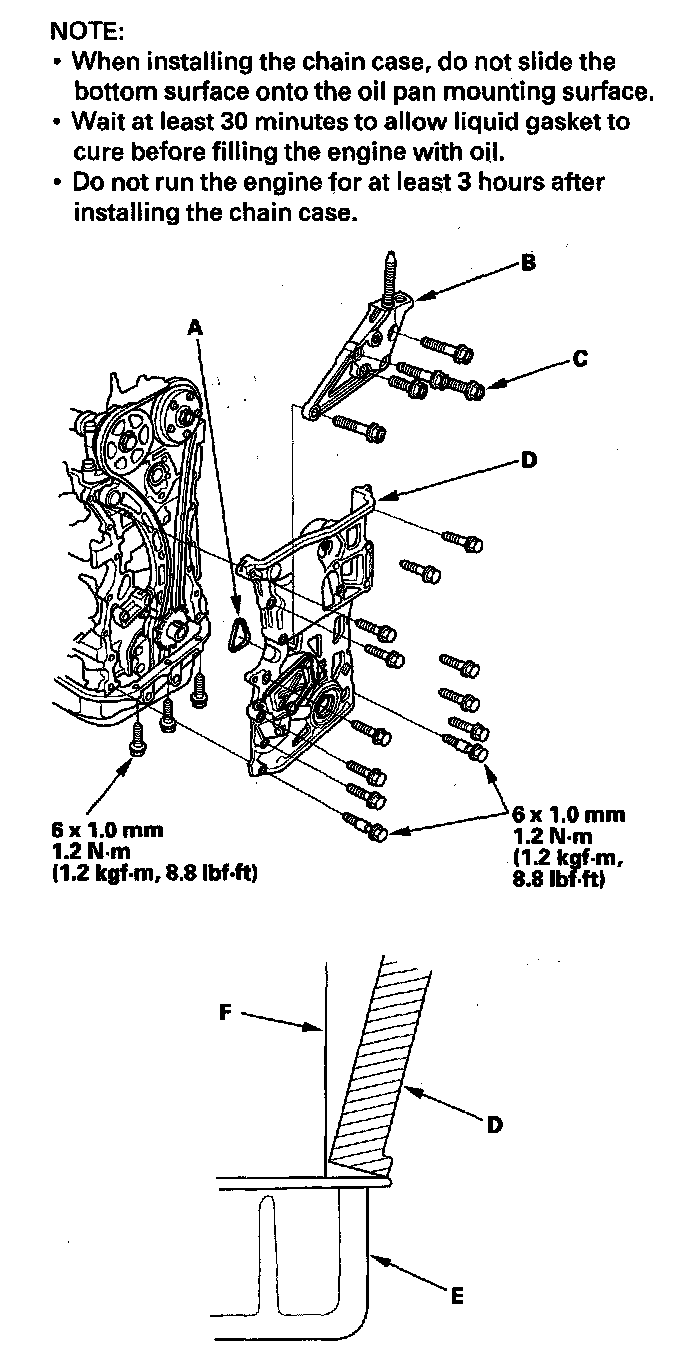

Cover
