Pinout Values and Diagnostic Parameters

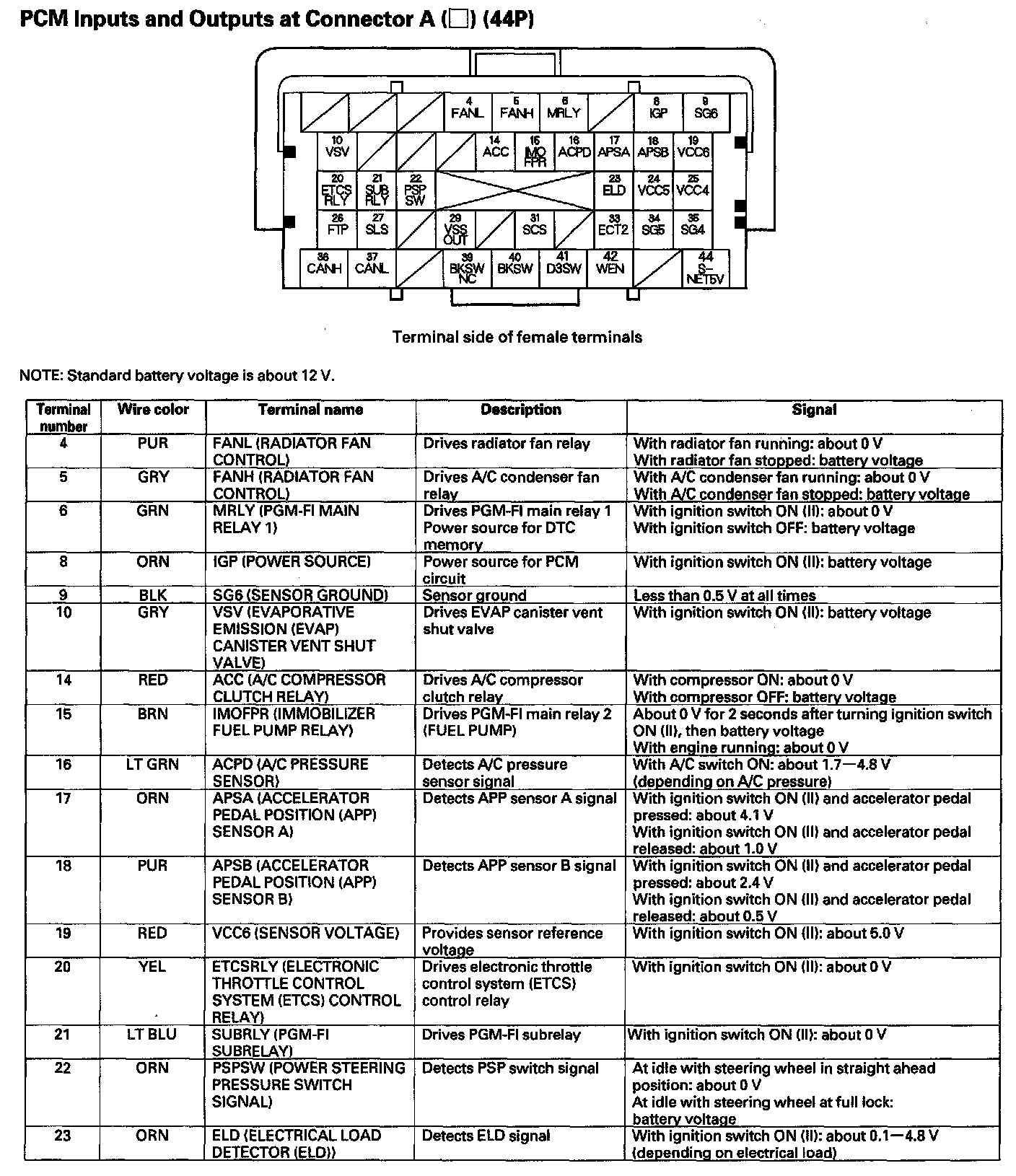

PCM Inputs and Outputs at Connector A (44P) (Part 1):

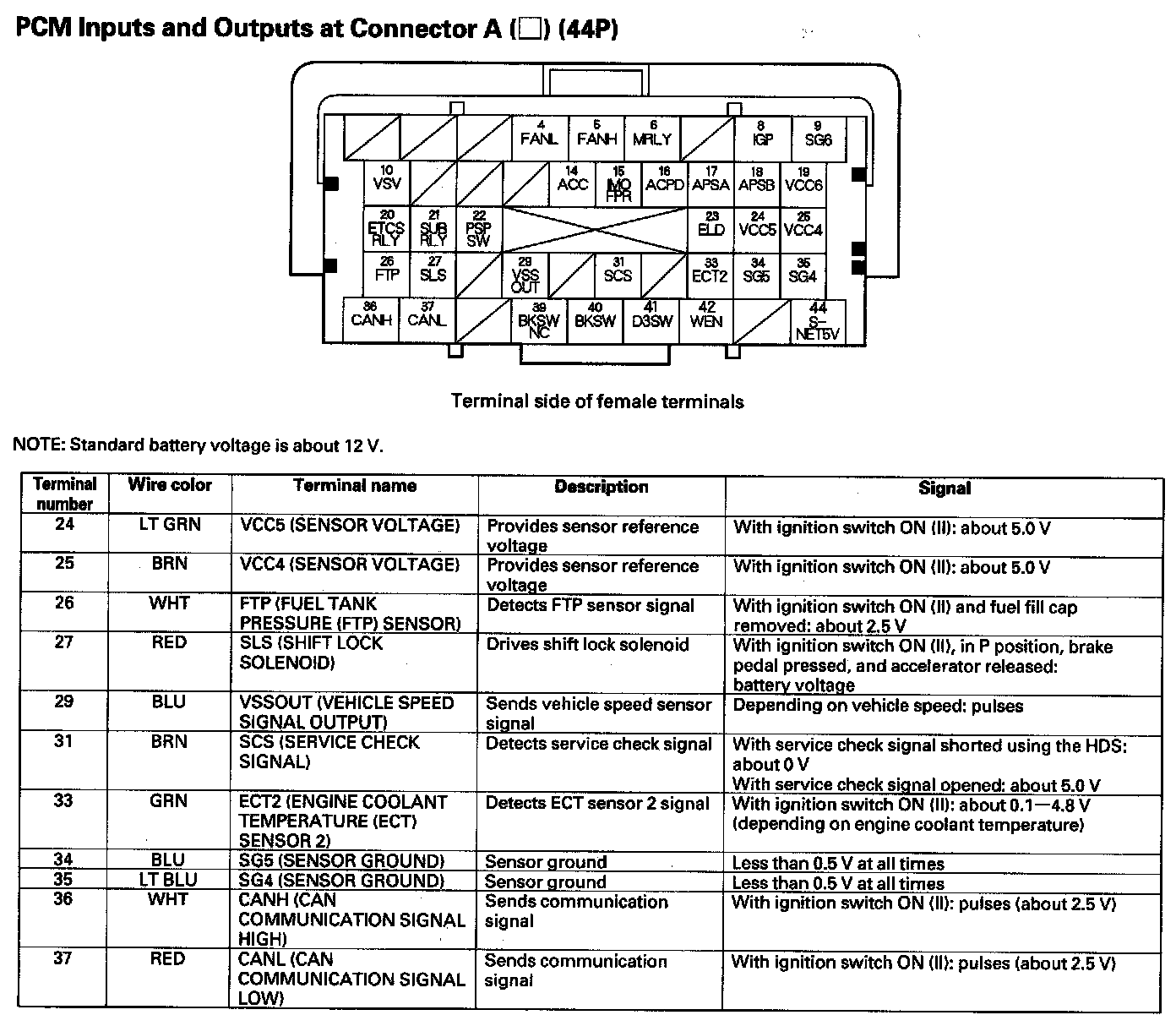

PCM Inputs and Outputs at Connector A (44P) (Part 2):

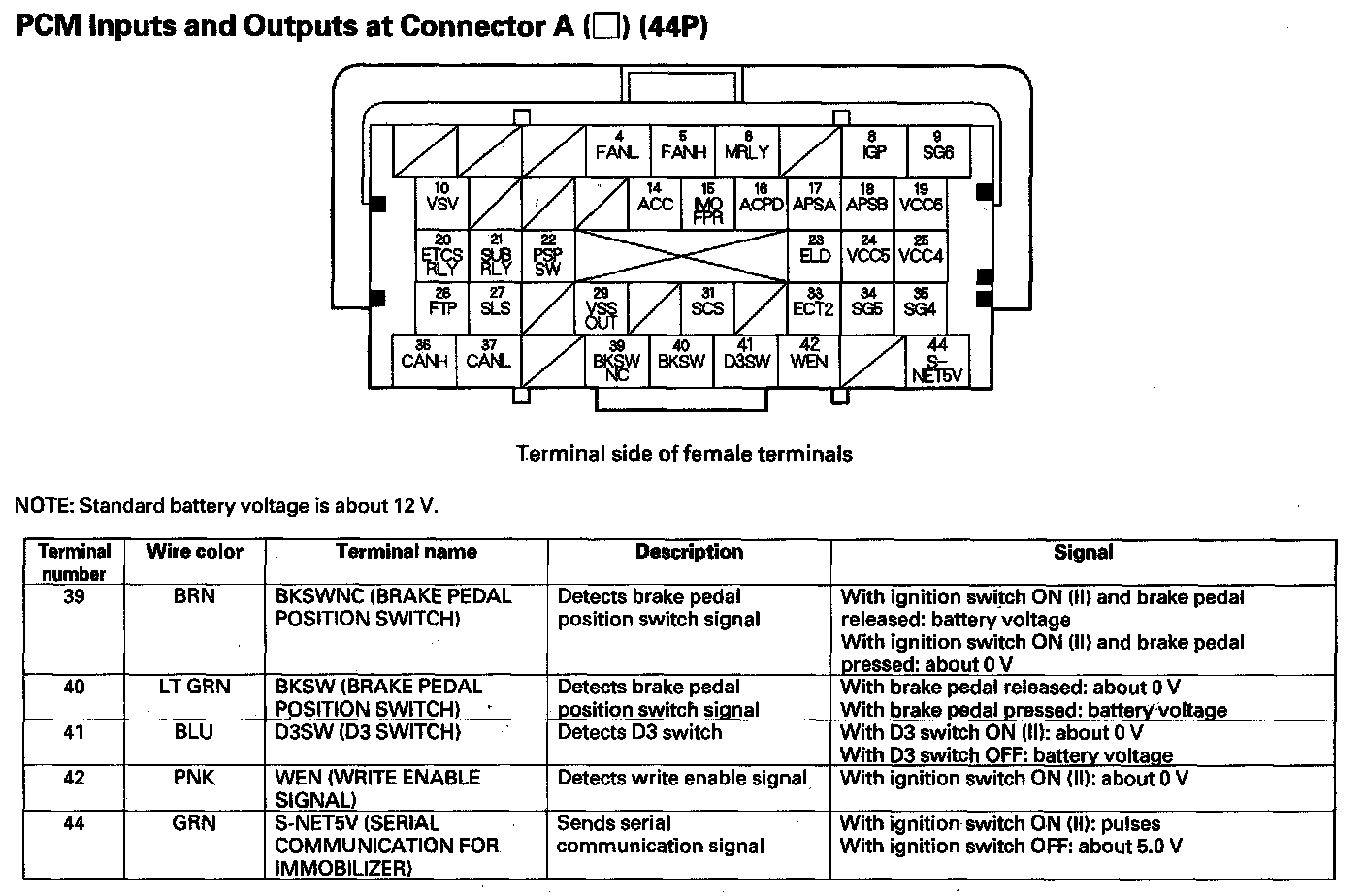

PCM Inputs and Outputs at Connector A (44P) (Part 3):

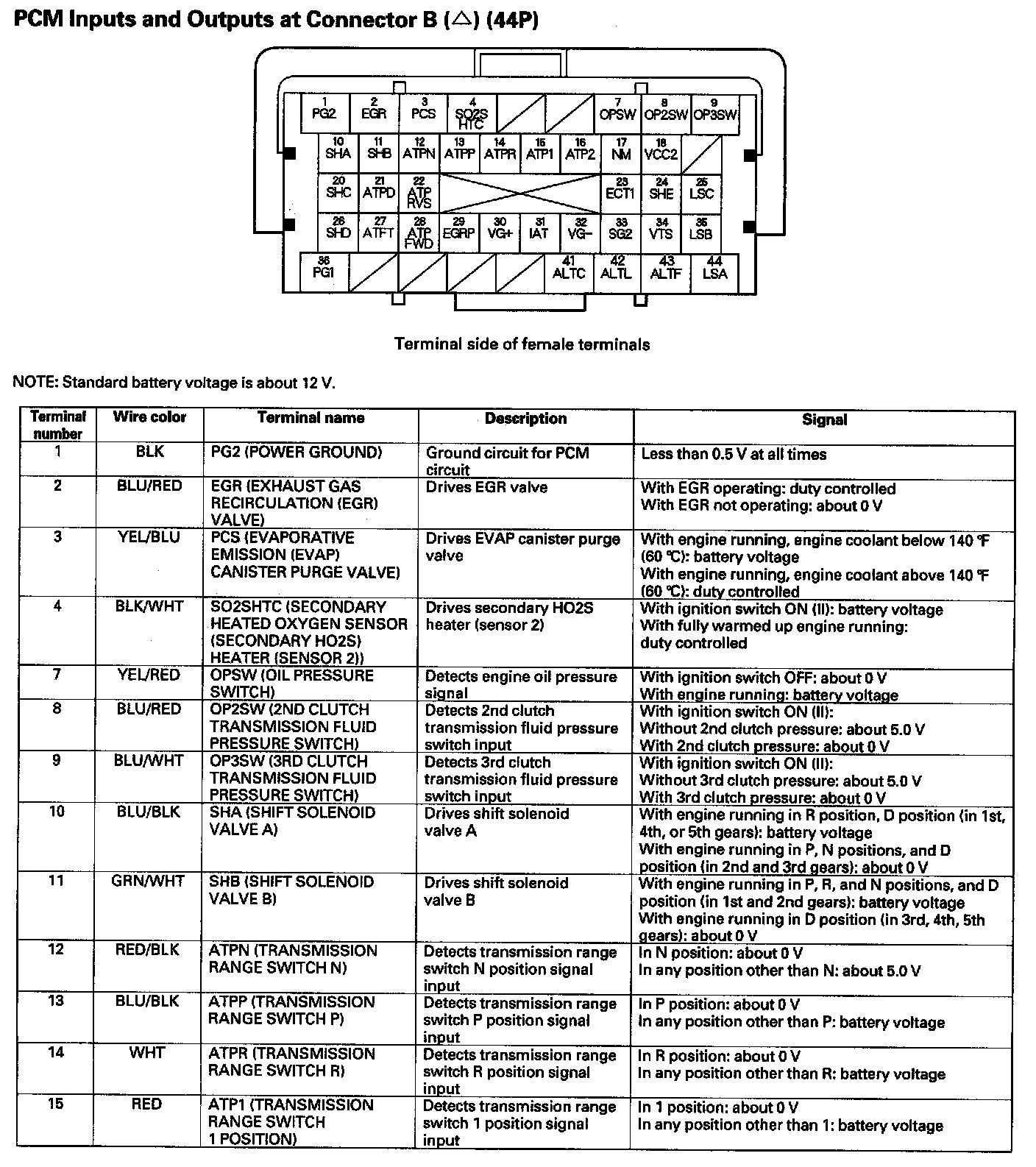

PCM Inputs and Outputs at Connector B (44P) (Part 1):

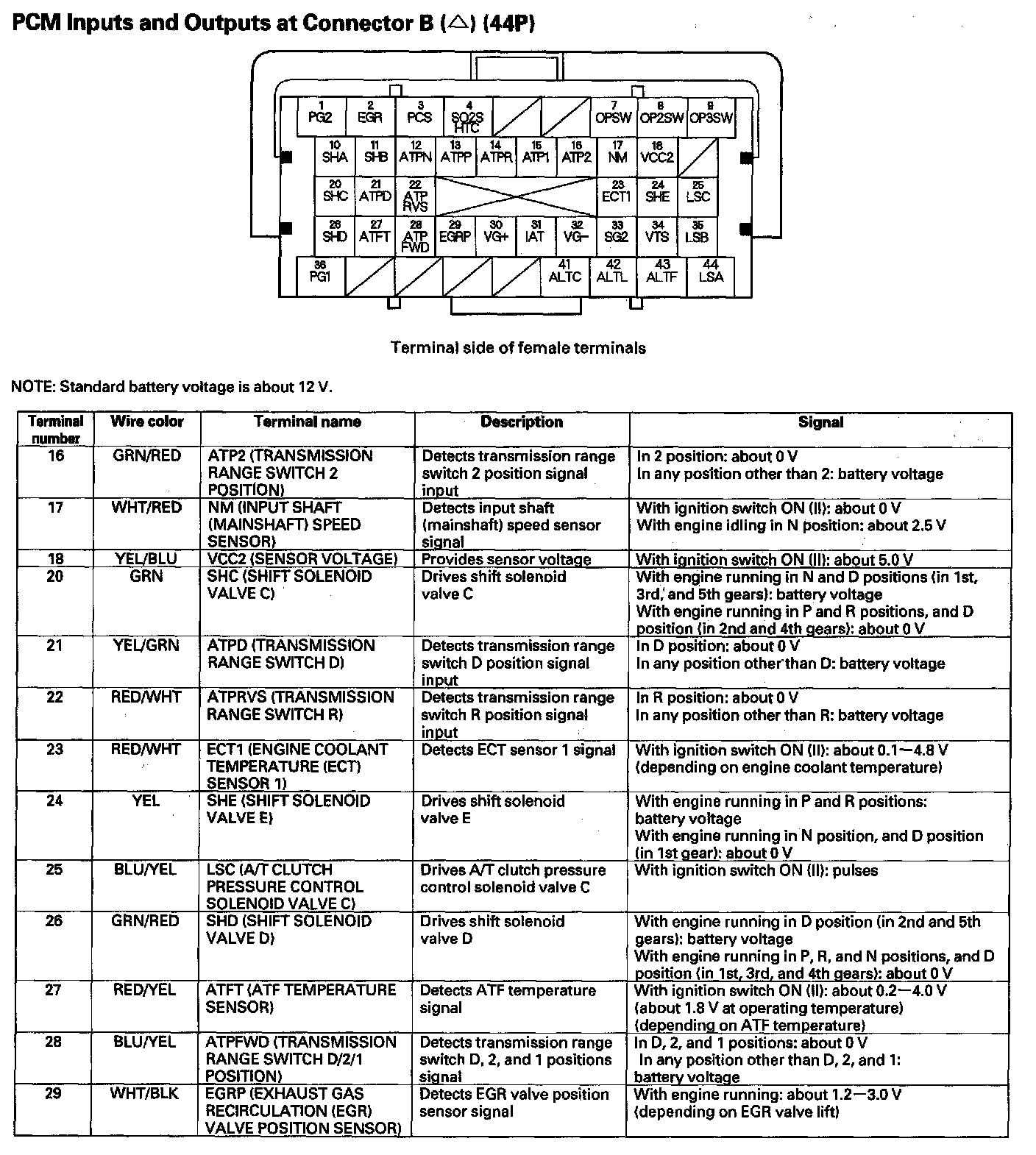

PCM Inputs and Outputs at Connector B (44P) (Part 2):

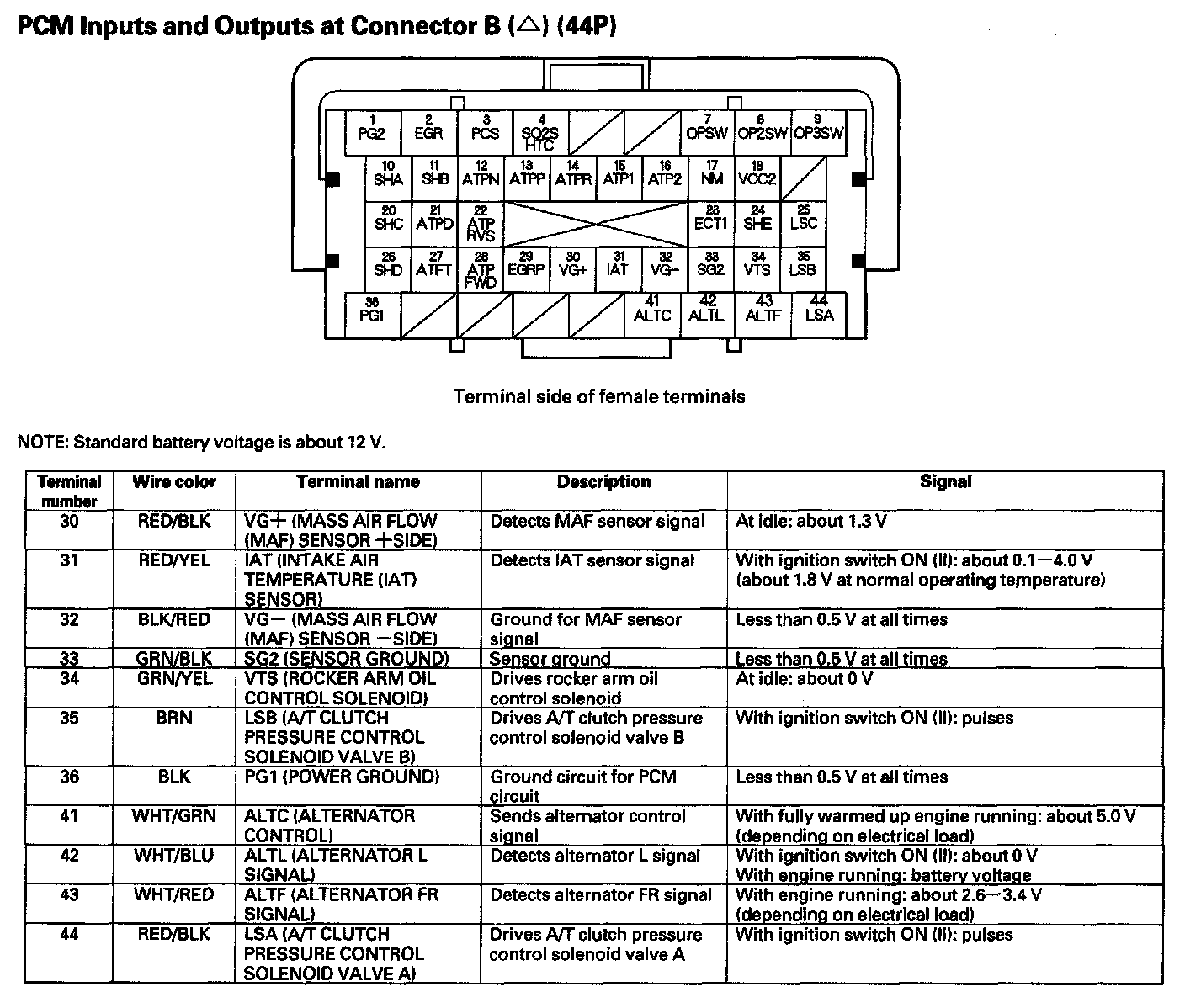

PCM Inputs and Outputs at Connector B (44P) (Part 3):

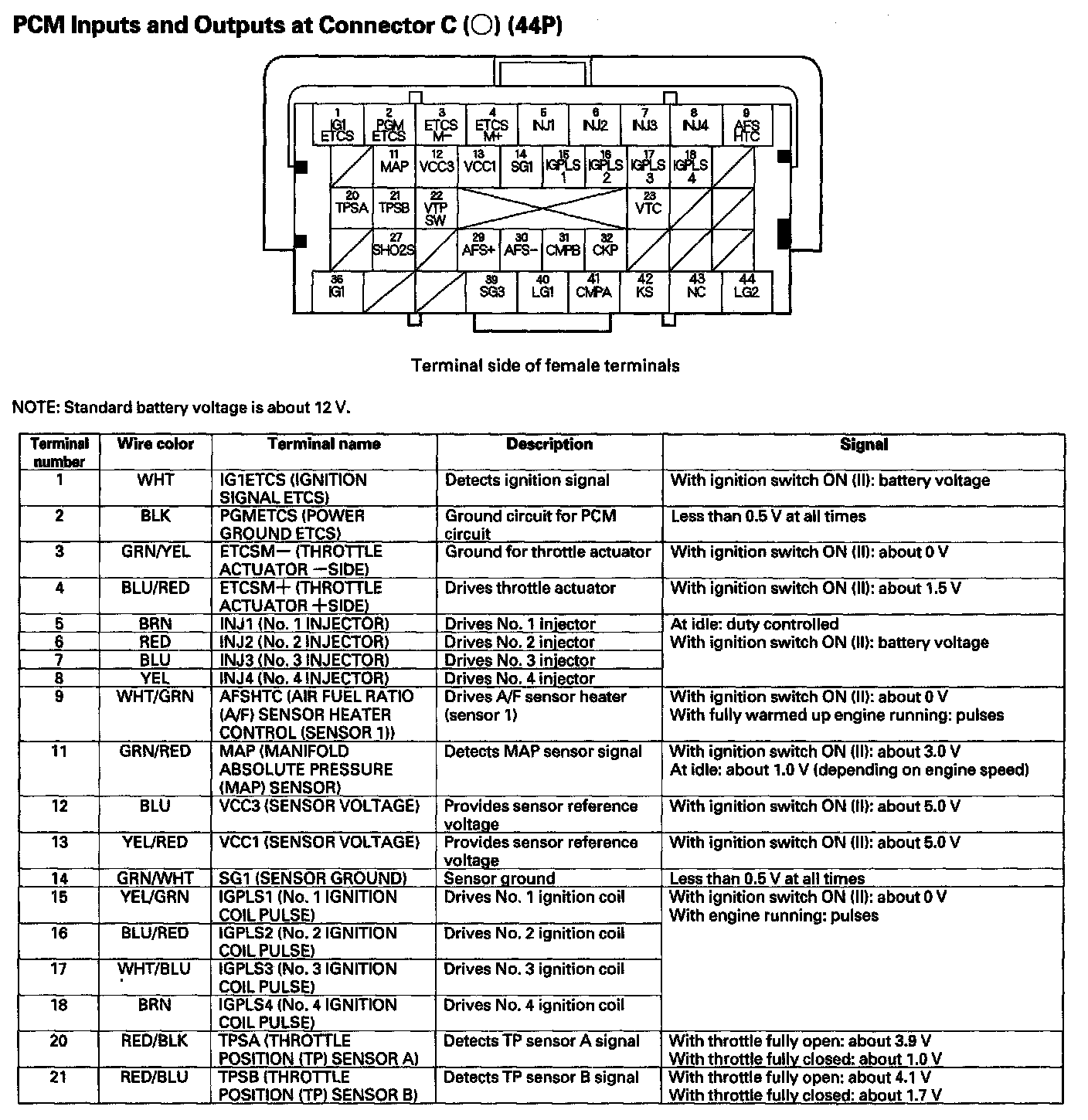

PCM Inputs and Outputs at Connector C (44P) (Part 1):

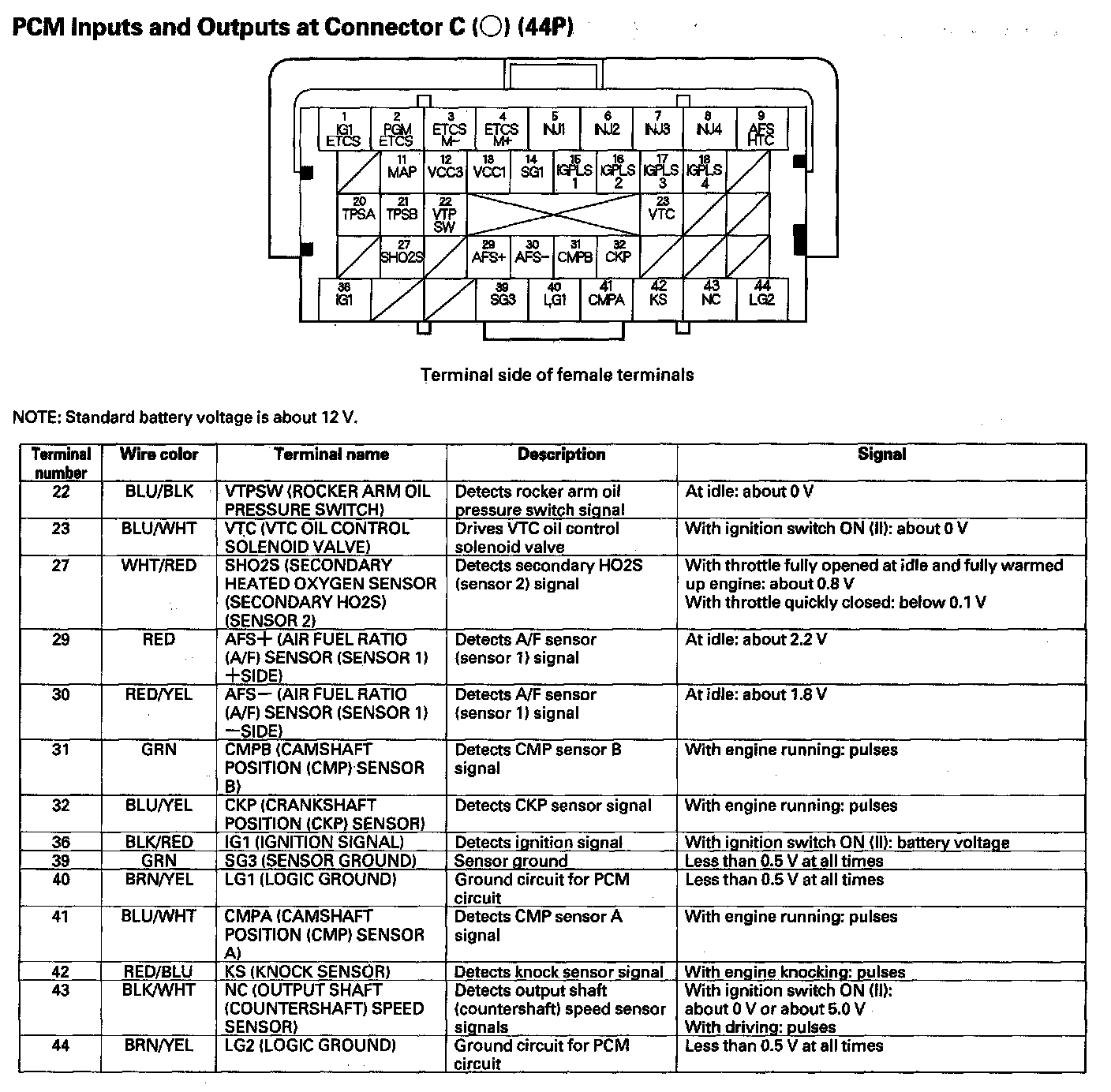

PCM Inputs and Outputs at Connector C (44P) (Part 2):
