Timing Cover
Timing Cover
Timing Cover

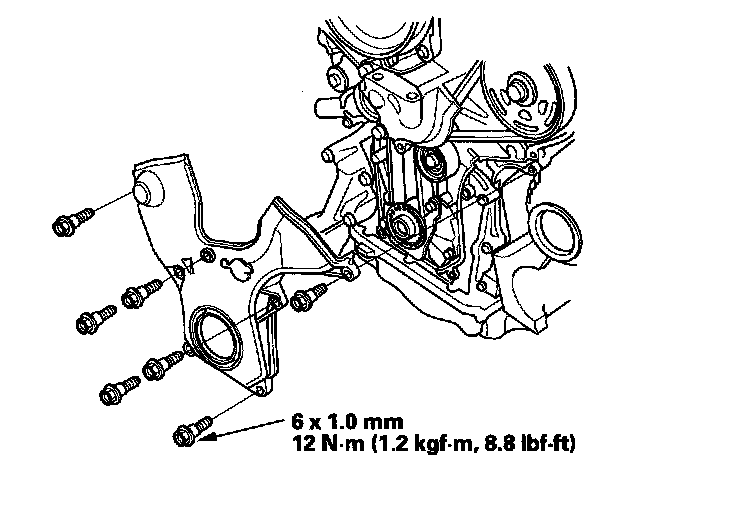

Install the lower cover.

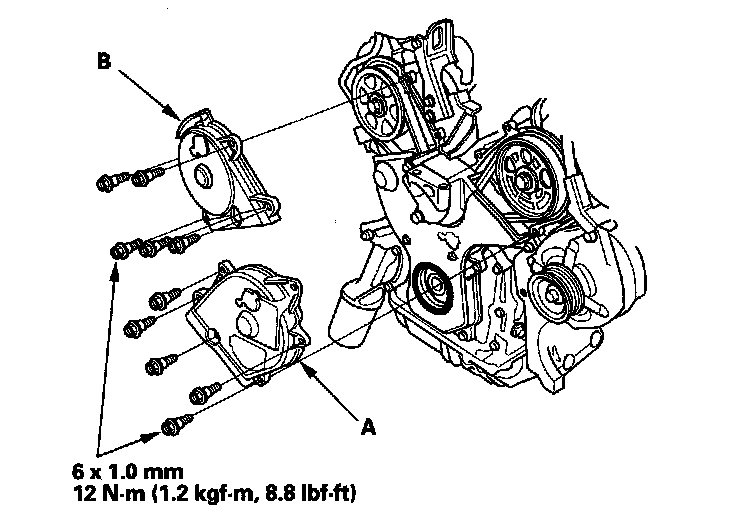

Install the front upper cover (A) and the rear upper cover (B).
